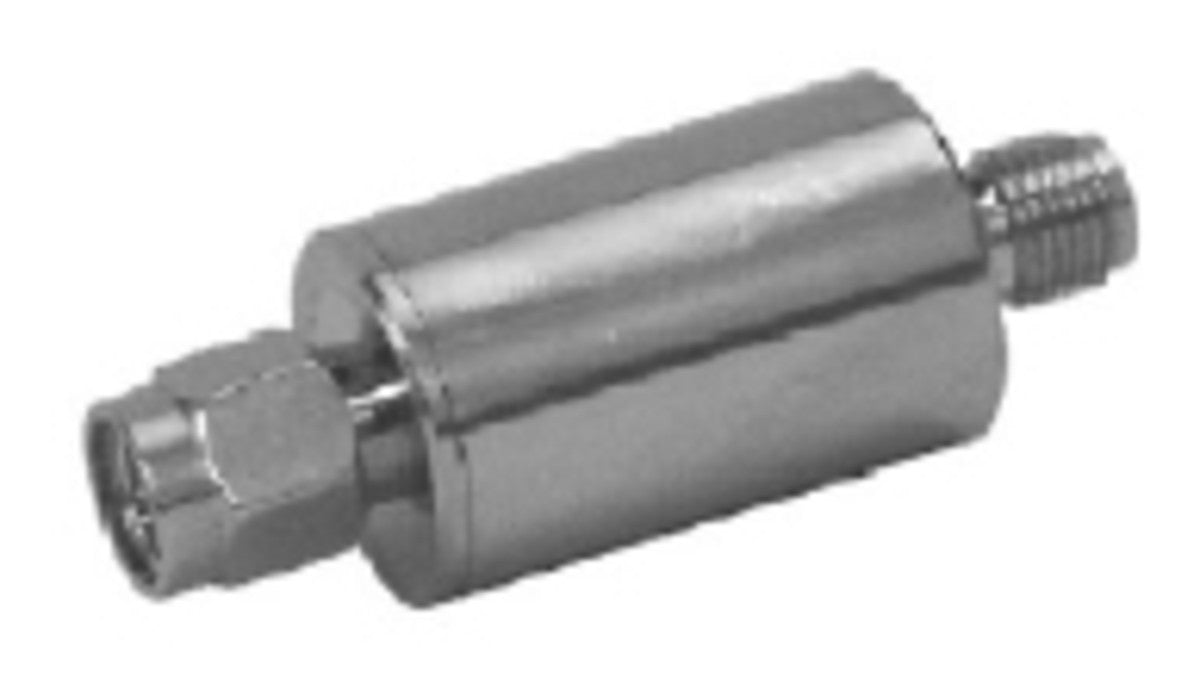

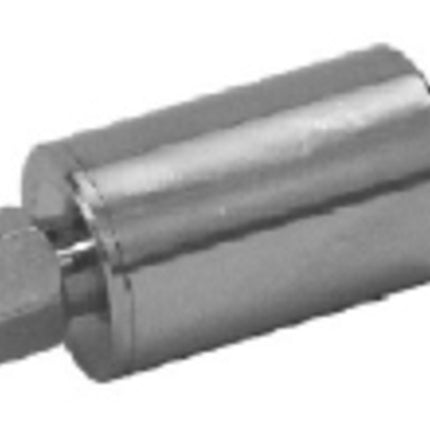

The RFI SP0000-7205-SMA Attenuator is a high-quality 50 Ohm RF Coaxial In-Line Attenuator with a fixed attenuation value of 5 dB. This attenuator features SMA male and female connectors and designed for a frequency range of DC to 3 GHz and a power rating of 2W. It is primarily used in RF multicoupling and bench test and measurement applications. The comprehensive range of coaxial in-line attenuators have excellent return loss and temperature tolerances, making them reliable and useful in most applications.

Product Features:

• This RFI SP0000-7205-SMA Attenuator has a 2W power rating, ensuring robust performance in various applications.
• It operates across a frequency range of DC to 3 GHz, providing broad compatibility.
• This device is available in a fixed attenuation value of 5 dB, suitable for precise signal control.
• It offers excellent return loss and VSWR across the full DC to 3 GHz bandwidth, ensuring minimal signal reflection and loss.
• This attenuator features SMA male and female connectors, providing secure and reliable connections.

Application Areas:

• This attenuator is ideal for RF multicoupling applications, ensuring precise signal attenuation.
• It is perfect for bench test and measurement applications, providing reliable performance and accuracy.
• This device is beneficial for any application requiring excellent return loss and temperature tolerance.
• It is suitable for use in various RF systems, ensuring consistent and reliable signal control.

In the Box:

• 1x RFI SP0000-7205-SMA Attenuator

Documents:

RFI SP0000-7205-SMA Attenuator - Datasheet
