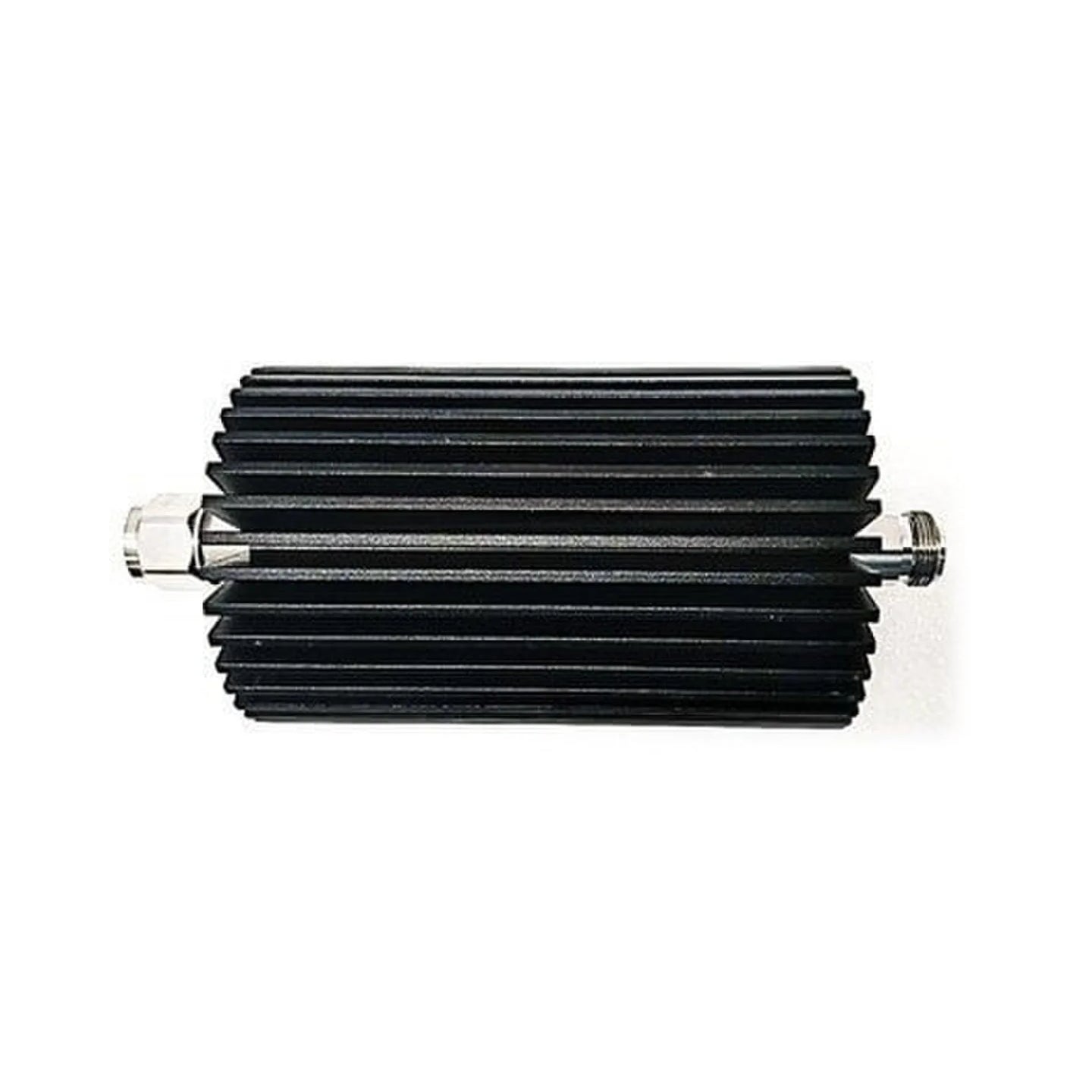

RFI SP0000-7506-02 Attenuator, 6 dB, DC-3 GHz, 30W, N Male/Female

RFI SP0000-7506-02 Attenuator, 6 dB, DC-3 GHz, 30W, N Male/Female

On backorder

Brand:
Item ID:
168018916
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SP0000-7506-02
Send Request for Quote (RFQ) Discount Offers
RFI SP0000-7506-02 Attenuator is 50 Ohm RF Coaxial In-Line Attenuator features N male and female connectors, 6 dB, DC to 3 GHz and 30W power rating.
Regular price $269.00
Regular price $0.00 Sale price $269.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI SP0000-7506-02 Attenuator is a high-quality 50 Ohm RF Coaxial In-Line Attenuator with a fixed attenuation value of 6 dB. Designed for a frequency range of DC to 3 GHz and a power rating of 30W, this attenuator features N male and female connectors. It is primarily used in RF multicoupling, bench tests, and measurement applications. The full range of in-line attenuators are air-cooled through natural convection with conservative power to heatsink surface area power density factors, offering excellent return loss and temperature tolerances.

Product Features:

  • This RFI Attenuator has a 30W power rating, ensuring robust performance in various applications.
  • It operates across a frequency range of DC to 3 GHz, providing broad compatibility.
  • This device is available in a fixed attenuation value of 6 dB, suitable for precise signal control.
  • It offers excellent return loss and VSWR across the full DC to 3 GHz bandwidth, ensuring minimal signal reflection and loss.
  • This attenuator features N male and female connectors, providing secure and reliable connections.

Application Areas:

  • This attenuator is ideal for RF multicoupling applications, ensuring precise signal attenuation.
  • It is perfect for bench test and measurement applications, providing reliable performance and accuracy.
  • It is suitable for use in various RF systems, ensuring consistent and reliable signal control.

In the Box:

  • 1x RFI SP0000-7506-02 Attenuator

Documents:

RFI SP0000-75xx-02 Attenuator - Datasheet

Product Specifications

MPN SP0000-7506-02
Attenuation accuracy +/- 0.5dB
Attenuation value 6 dB
Brands RFI
Component type Attenuator
Connector N(m/f)
Finish Painted Black
Height 28
Length 5
Power rating maximum 30W
Power rating watts 30W
Temperature range c -20 to +65
Termination connectors N ( M/F )
Width 8
