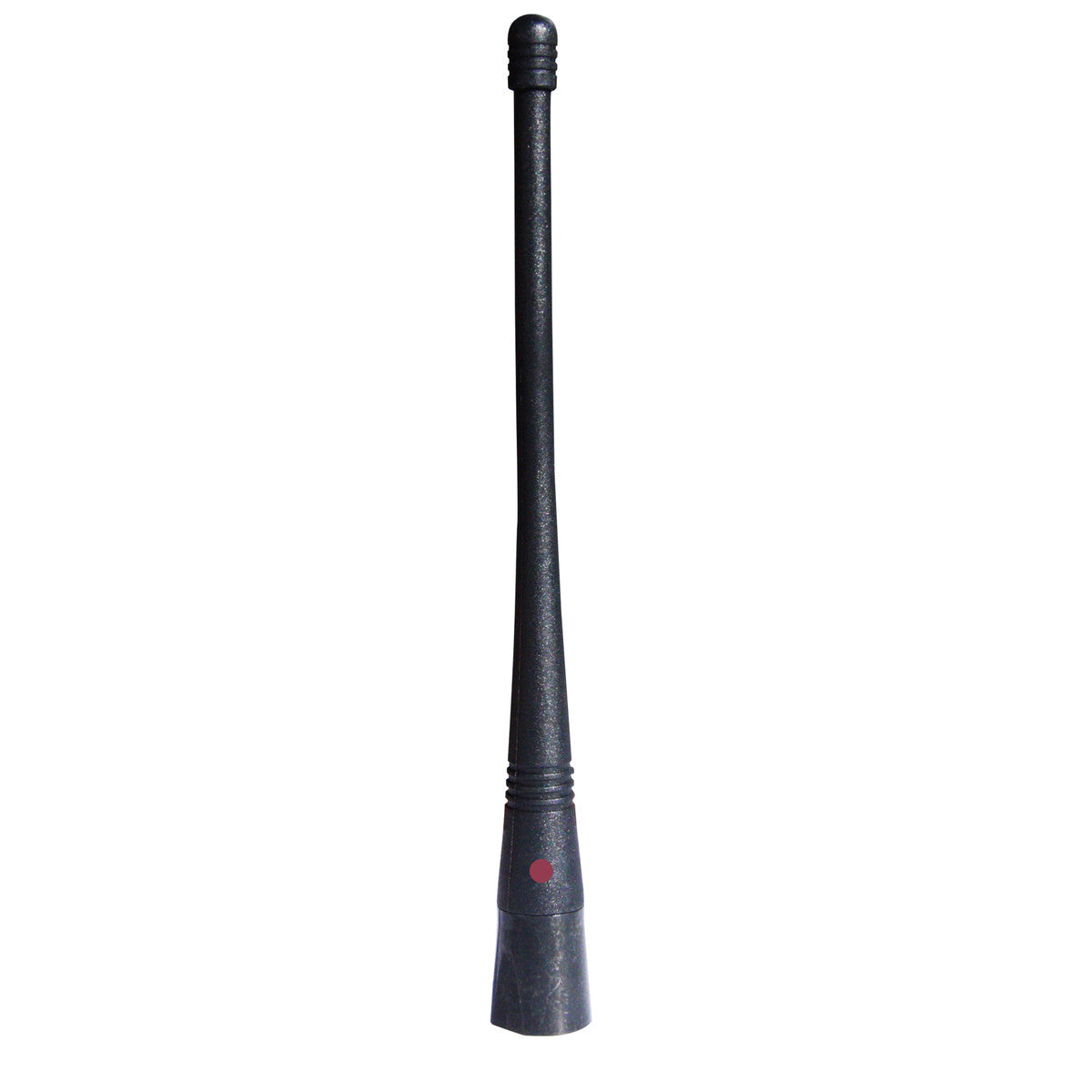

RFI SW124 1/4 Wave Whip, 450-470 MHz, 2 dBi - Red Dot

RFI SW124 1/4 Wave Whip, 450-470 MHz, 2 dBi - Red Dot

Available

Brand:
Item ID:
168016112
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SW124
Send Request for Quote (RFQ) Discount Offers
RFI SW124 1/4 Wave Whip is a rugged and low-profile antenna designed for reliable omnidirectional performance in the 450-470 MHz frequency range.
Regular price $25.60
Regular price $0.00 Sale price $25.60
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI SW124 1/4 Wave Whip is a rugged and low-profile antenna designed for reliable omnidirectional performance in the 450-470 MHz frequency range. SW120 series are available either pre-tuned to specific bands (380 MHz to 520 MHz) or in the case of the SW120, field tuneable from 400-520 MHz. By the nature of their location, these types of antennas are generally exposed to extreme conditions.

Product Features:

  • Omnidirectional ¼ wave antenna providing unity gain for consistent UHF signal coverage.
  • Pre-tuned to operate in the 450-470 MHz range, marked with a red dot for quick band identification.
  • Constructed from twisted stainless-steel wire for optimal flexibility and resilience under vibration.
  • Encased in a UV-stable TPU radome, ensuring resistance to sunlight, weather, and impact.
  • Field-tuneable variant (SW120) supports a broader 400–520 MHz range for adaptable deployments.
  • Compatible with standard 5/16” – 26 TPI mounts (MB10 or MB12) and CD90/900 Series elevated feed bases.

Application Areas:

  • Vehicle roof mounts for fleet, emergency, and commercial UHF communication systems.
  • Industrial or mining machinery requiring robust and flexible antenna solutions.
  • Installations exposed to vibration, weather, and mechanical stress where long-lasting durability is critical.
  • UHF radio systems requiring quick identification and deployment of pre-tuned antennas.

In the Box:

  • 1 x RFI SW124 1/4 Wave Whip Antenna (Black - Red Dot)

Documents:

RFI SW124 Whip - Datasheet

Product Specifications

MPN SW124
Antenna application Vehicle Antenna
Antenna port connectors Not included, order separately
Antenna type Ground Dependent
Band 450 - 470MHz
Brands RFI
Cable and connector Not included, order separately
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 806-870
Height 3
Installation type Vehicle mounting
Length 20
Low pim No
Max frequency mhz 470
Max gain dbd dbi 1
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 1
Mount supported MB base
Mount supported detailed Suit MB9, MB10 or MB12 bases (not included)
No of antenna ports 1
Nominal gain dbq Unity
Packaging Clear Bag
Power w 100
Technologies supported UHF
Tuned bandwidth Full. No tuning required
Tuning Supplied pre-tuned
Vswr <2.0:1
Whip length mm 143
Whip material Flexible stranded stainless steel whip covered by black TPU radome
Width 3
