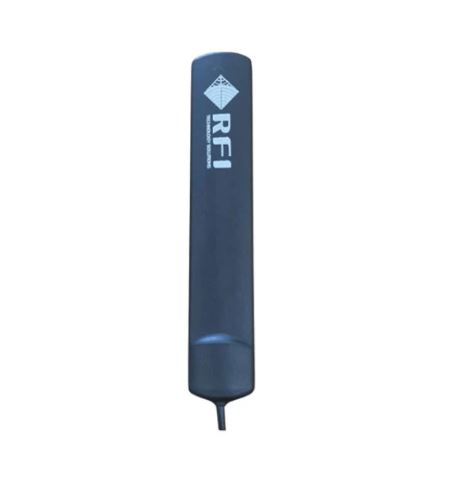

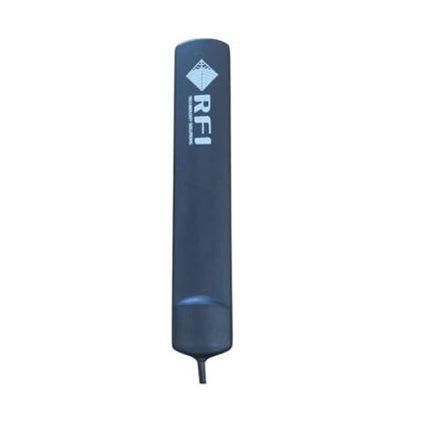

RFI T5 Antenna, 617-5925 MHz, 3m, FME-Female

RFI T5 Antenna, 617-5925 MHz, 3m, FME-Female

Available

Brand:
Item ID:
168014338
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
T5-3M-FME
Send Request for Quote (RFQ) Discount Offers
RFI T5 antenna covers 617-5925 MHz frequency with 3m FME(F) connector that brings exceptional signal strength and quality in a 360-degree radiation pattern.
Regular price $28.40
Regular price $0.00 Sale price $28.40
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI T5 Series Internal Glass Mount Antenna delivers exceptional omnidirectional performance for LTE and 5G NR applications. Designed to support CAT-M and NB-IoT technologies for modern M2M, telematics, and IoT solutions. With backward compatibility to existing LTE networks and support for frequencies from 617 to 5925 MHz, this compact antenna is ideal for concealed installations in vehicles and other space-constrained environments.

Product Features:

  • This antenna covers all LTE and 5G NR cellular bands, including the new 700 MHz (4GX/4G+) frequency.
  • It operates over a wideband frequency range from 617 MHz to 5925 MHz, providing global compatibility and future-ready performance.
  • The omnidirectional design delivers a 360-degree radiation pattern with high peak gain and efficiency for reliable reception.
  • The ground-plane-independent configuration ensures consistent performance in various mounting conditions without requiring a metal surface.

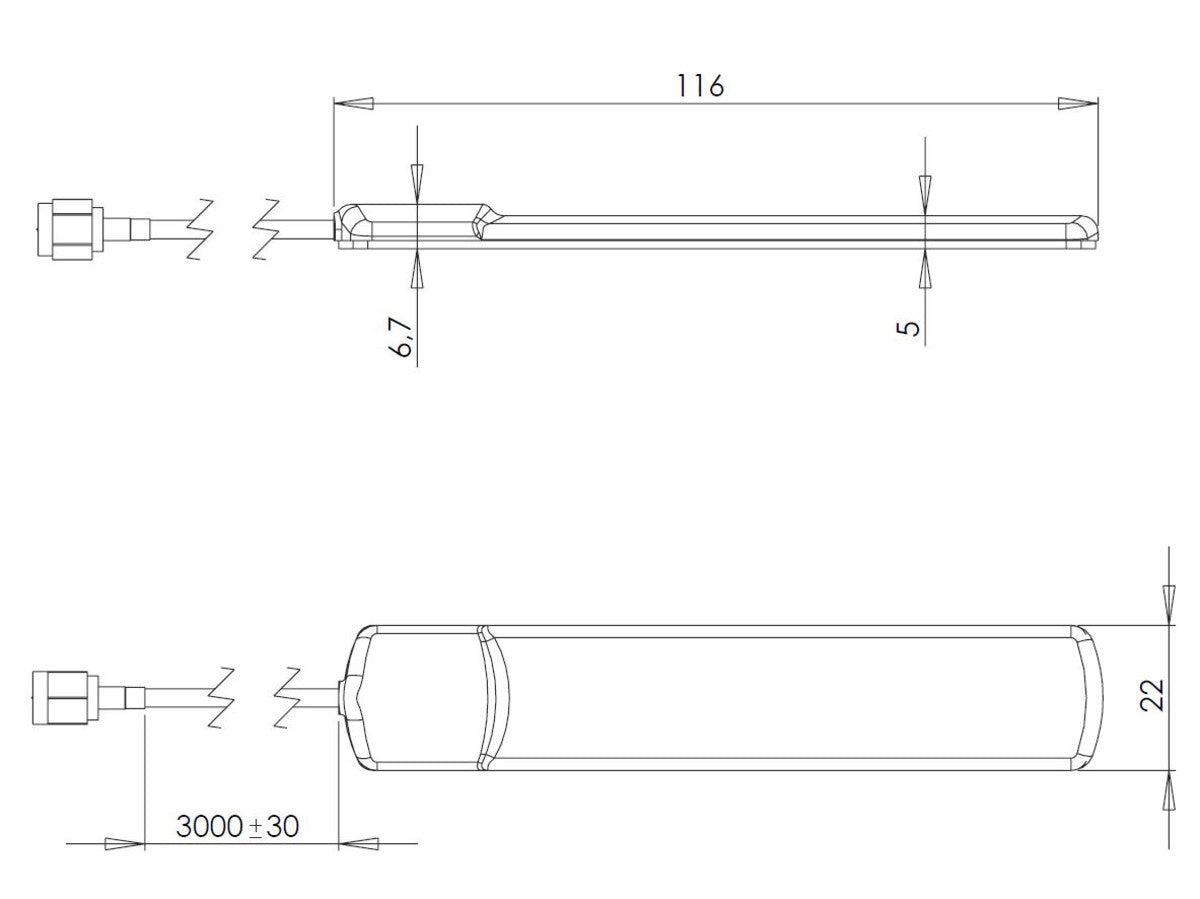

  • The compact, low-profile form factor (116 × 22 × 6.7 mm) is ideal for stealth installations in vehicles or equipment where space is limited.
  • An adhesive mount allows for easy installation on interior glass surfaces with minimal visual impact.
  • The antenna includes a 3-meter cable with an FME (female) connector for quick integration with modems and signal boosters.
  • It is compatible with CAT-M and NB-IoT (CAT-M2) technologies, enabling direct server data transfer without the need for external gateways.

Application Areas:

  • This antenna is suited for vehicle installations that provide mobile broadband connectivity and support in-vehicle phone kits.
  • It supports M2M, IoT, and telematics applications that require compact, discreet antenna placement in remote or mobile environments.
  • The design is ideal for monitoring and sensor-based systems deployed in remote locations, ensuring reliable data transmission.
  • It meets the needs of deployments requiring future-proof LTE and NR connectivity with global frequency coverage.

In the Box:

  • 1 x RFI T5-3M-FME Antenna (617–5925 MHz)
  • 1 x 3m Cable with FME(F) Connector
  • 1 x Adhesive Mount Strip (Pre-Applied)

Documents:

RFI T5 Series Antenna - Datasheet

Product Specifications

MPN T5-3M-FME
Antenna application Terminal Antenna, Vehicle Antenna
Antenna cable type LL100
Antenna features Omnidirectional, Multi Band Capable, Flying lead
Antenna port connectors FME (F)
Antenna type Ground Independent, Glass Mounted
Band 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz
Brands RFI
Cable and connector 3m LL100, FME female
Cable length m 3
Connector FME(F)
Coverage type Omni-directional
Height 2
Installation type Internal or external mounting
Length 15
Low pim No
Max frequency mhz 5925
Max gain dbd dbi 3.6
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 1
Mount supported Adhesive mount
Mount supported detailed Adhesive mount
No of antenna ports 1
Nominal gain dbi 3.2 / 3.6 / 1.0 / 1.6
Polarisation Linear
Power w 25
Technologies supported 2G, 3G, 4G, 5G
Technology type 5GNR
Termination FME female
Tuned bandwidth Full
Tuning Supplied pre-tuned
Vswr <2.0:1
Width 5
