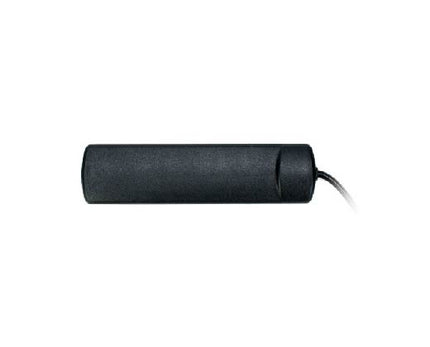

RFI T5 Antenna, 617-5925 MHz, 3m, SMA-Male

RFI T5 Antenna, 617-5925 MHz, 3m, SMA-Male

Available

Brand:
Item ID:
168014339
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
T5-3M-SMA
Send Request for Quote (RFQ) Discount Offers
RFI T5 antenna 3m SMA(M) caters to 5GNR, 4G LTE, 3G, 2G, and CDMA technologies operating within 617 MHz to 5925 MHz frequencies.
Regular price $27.40
Regular price $0.00 Sale price $27.40
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

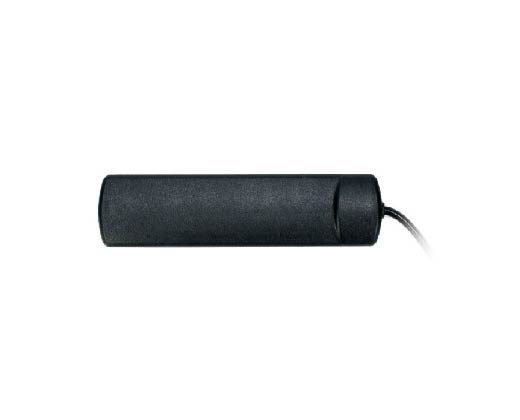

The RFI T5 Series Internal Glass Mount Antenna delivers exceptional omnidirectional performance for LTE and 5G NR applications. Designed to support CAT-M and NB-IoT technologies for modern M2M, telematics, and IoT solutions. With backward compatibility to existing LTE networks and support for frequencies from 617 to 5925 MHz, this compact antenna is ideal for concealed installations in vehicles and other space-constrained environments.

Product Features:

  • The antenna covers all LTE and 5G NR cellular bands, including the new 700 MHz (4GX/4G+) frequency.
  • It operates over a wideband frequency range from 617 MHz to 5925 MHz for global compatibility and future-proof performance.
  • The omnidirectional design provides a 360-degree radiation pattern with high peak gain and efficiency.
  • The ground-plane-independent configuration ensures consistent performance under various mounting conditions.

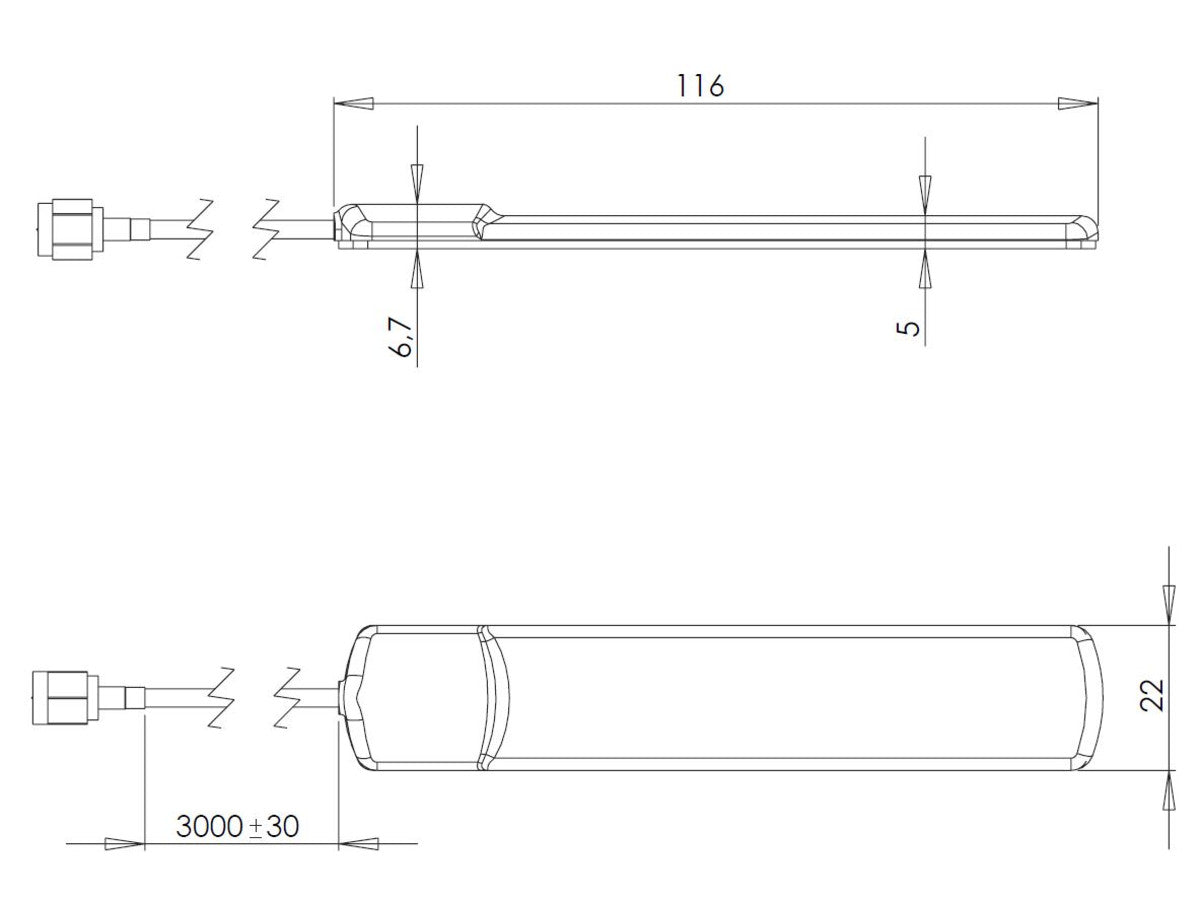

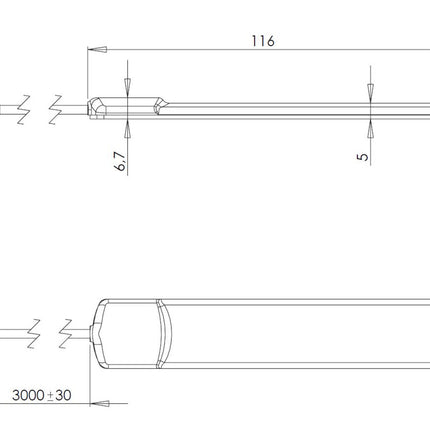

  • Its compact, low-profile form factor (116 × 22 × 6.7 mm) is ideal for stealth installations in vehicles or equipment.
  • The adhesive mount allows for easy installation on interior glass surfaces with minimal visual impact.

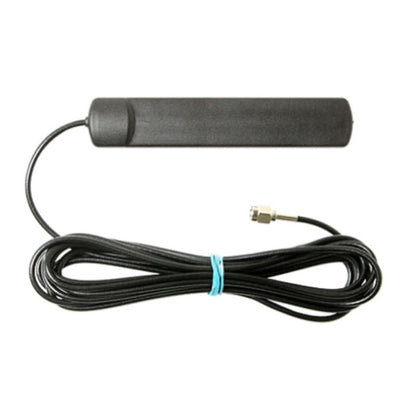

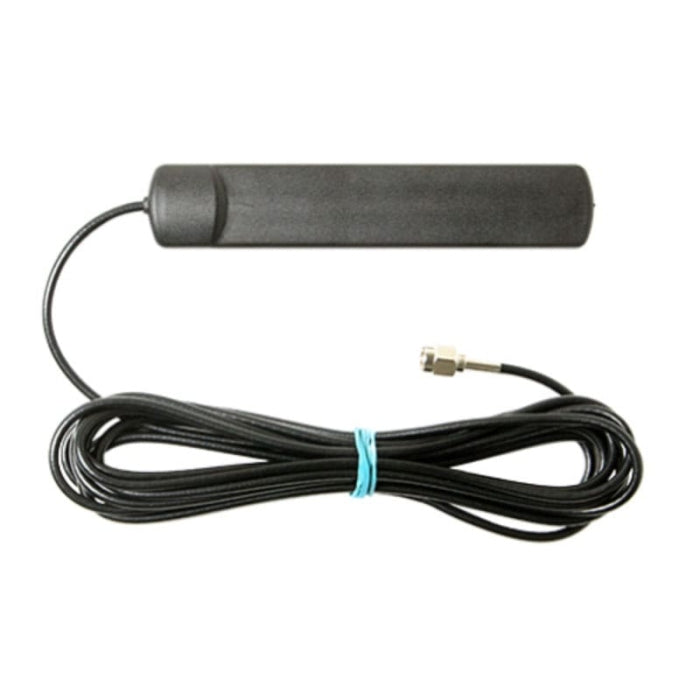

  • The antenna includes a 3-meter cable with an SMA(f) connector for quick integration with modems and signal boosters.
  • It is compatible with CAT-M and NB-IoT (CAT-M2) technologies, enabling direct server data transfer without requiring external gateways.

Application Areas:

  • This antenna is suited for vehicle installations that provide mobile broadband or in-vehicle phone kit connectivity.
  • It supports M2M, IoT, and telematics applications that demand compact, discreet antenna placement.
  • The design is ideal for monitoring and sensor-based systems deployed in remote or mobile environments.
  • It meets the requirements of deployments needing future-proof LTE and NR connectivity with global frequency coverage.

In the Box:

  • 1 x RFI T5-3M-SMA Antenna
  • 1 x 3m Cable with SMA(M) Connector
  • 1 x Adhesive Mount Strip (Pre-Applied)

Documents:

RFI T5 Series Antenna - Datasheet

Product Specifications

MPN T5-3M-SMA
Antenna application Terminal Antenna, Vehicle Antenna
Antenna cable type LL100
Antenna features Omnidirectional, Multi Band Capable, Flying lead
Antenna port connectors SMA (M)
Antenna type Ground Independent, Glass Mounted
Band 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz
Brands RFI
Cable and connector 3m LL100, SMA male
Cable length m 3
Coverage type Omni-directional
Frequency mhz 806-890|890-960|1710-1880|1850-1990|1910-2170
Height 2
Installation type Internal or external mounting
Length 15
Low pim No
Max frequency mhz 5925
Max gain dbd dbi 3.6
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 1
Mount supported Adhesive mount
Mount supported detailed Adhesive mount
No of antenna ports 1
Nominal gain dbi 3.2 / 3.6 / 1.0 / 1.6
Power w 25
Technologies supported 2G, 3G, 4G, 5G
Temperature range c -40 to +85
Tuned bandwidth Full
Tuning Supplied pre-tuned
Vswr <2.0:1
Width 5
