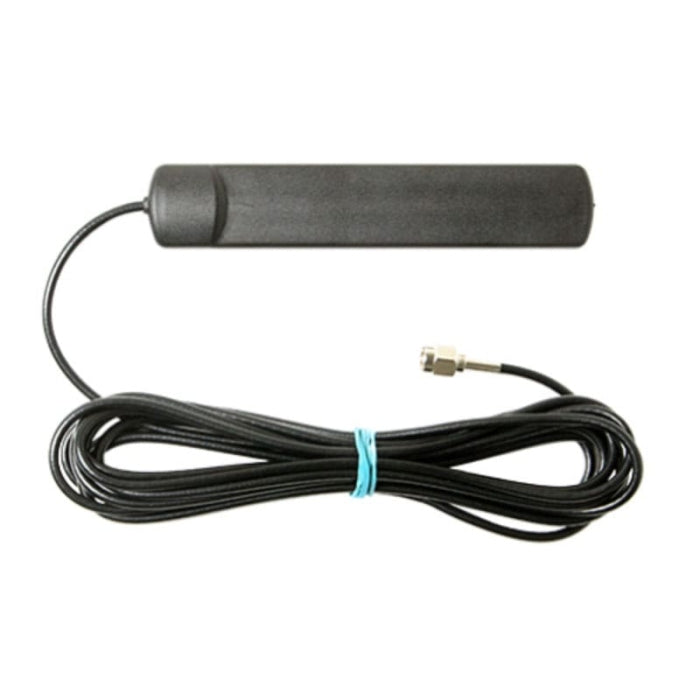

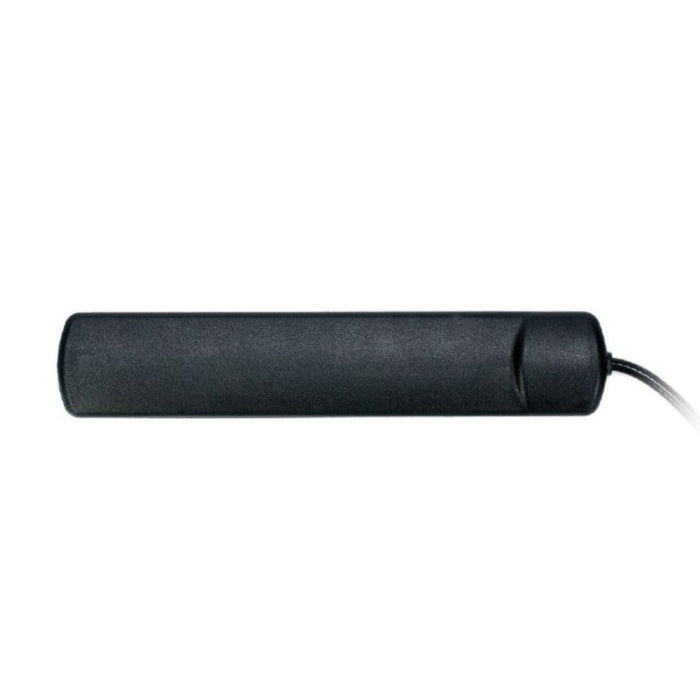

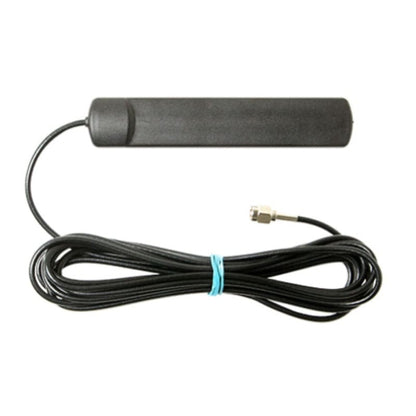

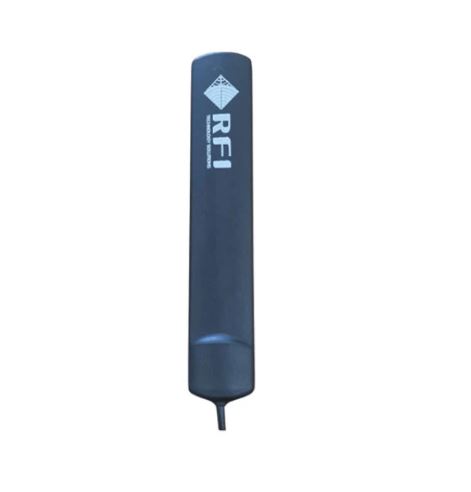

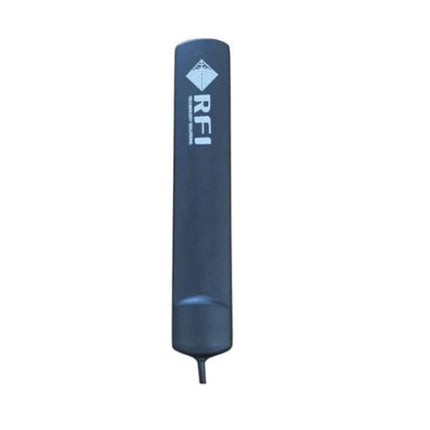

RFI T5 Antenna, 617-5925 MHz, 5m, SMA-Male

RFI T5 Antenna, 617-5925 MHz, 5m, SMA-Male

On backorder

Brand:
Item ID:
168014341
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
T5-5M-SMA
Send Request for Quote (RFQ) Discount Offers
RFI 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 5m SMA(M) caters to 5GNR, 4G LTE, 3G, 2G and CDMA technologies operating within 617 to 5925 MHz
Regular price $37.05
Regular price $0.00 Sale price $37.05
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI T5 Series Internal Glass Mount Antenna delivers exceptional omnidirectional performance for LTE and 5G NR applications. Designed to support CAT-M and NB-IoT technologies for modern M2M, telematics, and IoT solutions. With backward compatibility to existing LTE networks and support for frequencies from 617 to 5925 MHz, this compact antenna is ideal for concealed installations in vehicles and other space-constrained environments.

Product Features:

  • This antenna covers all LTE and 5G NR cellular bands, including the new 700 MHz (4GX/4G+) frequency.
  • It operates as a wideband antenna from 617 MHz to 5925 MHz, enabling global compatibility and future-ready performance.
  • The omnidirectional design delivers a 360-degree radiation pattern with high peak gain and efficiency.
  • The ground plane independent design offers consistent performance in various mounting conditions.

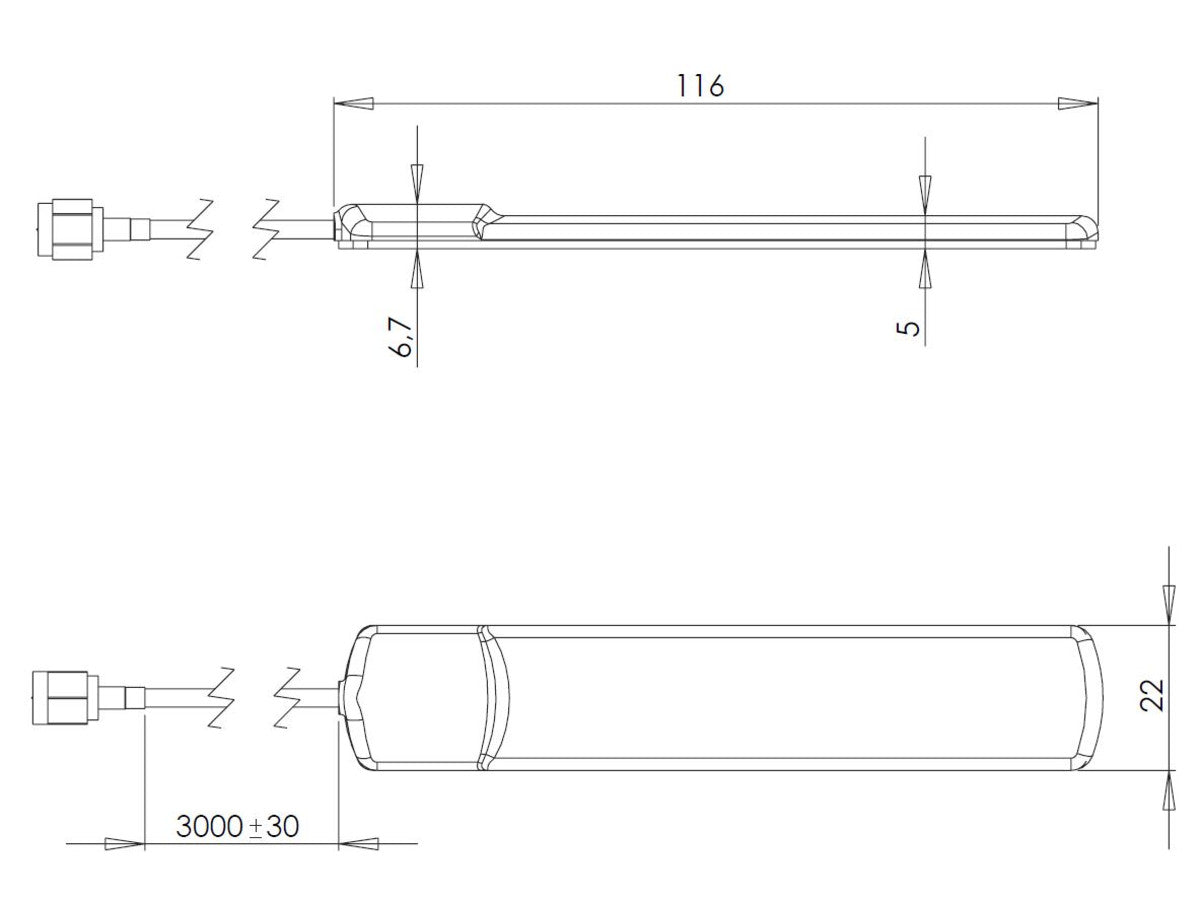

  • The compact, low-profile form factor (116 × 22 × 6.7 mm) makes it ideal for stealth installations in vehicles or equipment.
  • An adhesive mount allows easy installation on interior glass surfaces with minimal visual impact.
  • It includes a 5-meter cable with an SMA(M) connector for quick integration with modems and signal boosters.
  • The antenna is compatible with CAT-M and NB-IoT (CAT-M2) technologies to allow direct server data transfer without requiring gateways.

Application Areas:

  • The antenna is suitable for vehicle installations used for mobile broadband and in-vehicle phone kits.
  • It supports M2M, IoT, and telematics applications that require compact, discreet antenna placement.
  • It is designed for monitoring and sensor-based systems in remote or mobile environments.
  • It meets the requirements of deployments needing future-proof LTE and NR connectivity with global frequency coverage.

In the Box:

  • 1 x RFI T5-5M-SMA Antenna
  • 1 x 5m Cable with SMA(M) Connector
  • 1 x Adhesive Mount Strip (Pre-Applied)

Documents:

RFI T5 Series Antenna - Datasheet

Product Specifications

MPN T5-5M-SMA
Antenna application Terminal Antenna, Vehicle Antenna
Antenna cable type LL100
Antenna features Omnidirectional, Multi Band Capable
Antenna port connectors SMA (M)
Antenna type Ground Independent, Glass Mounted
Brands RFI
Cable and connector SMA male, 5m LL100
Cable length m 5
Connector SMA(M)
Coverage type Omni-directional
Frequency mhz 617-960|1427-2690|3300-5000|5150-5925
Height 2
Installation type Internal or external mounting
Length 15
Low pim No
Max frequency mhz 5925
Max gain dbd dbi 3.6
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 1
Mount supported Adhesive mount
Mount supported detailed Adhesive mount
No of antenna ports 1
Nominal gain dbi 3.2 / 3/6 / 1.0 / 1.6
Polarisation Linear
Power w 25
Technologies supported 2G, 3G, 4G, 5G
Tuned bandwidth Full
Tuning Supplied pre-tuned
Vswr <2.5:1
Width 5
