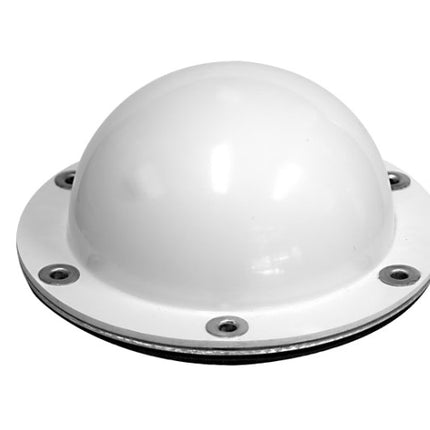

RFI TLA2150 5G LTE Transit Antenna, 698-3800 MHz, 5m SMA-Male

    RFI TLA2150 5G LTE Transit Antenna, 698-3800 MHz, 5m SMA-Male

      Product form

      RFI's TLA2150 is an ideal 5G Antenna solution for a wide variety of data applications. It comes with 5m 9006 cable terminated with SMA male connector.

      Brand
      RFI
      Export
      Accepted
      Item ID
      168070687
      MPN
      TLA2150
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $206.28

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The RFI TLA2150 5G antenna is an ideal solution for a wide variety of data applications in both fixed and mobile situations, including 4G, 5G, NB-IoT, and other LPWAN applications. It comes fitted with 5m 9006 (RG58) cable terminated with SMA-male connector.

        Product Features:

        • TLA2150 has a wide band design that allows it to be used with a variety of devices.
        • With a high impact resistant vacuum formed ABS radome and silicon mounting gasket, the TLA2150 can be used for indoor or outdoor applications
        • Applications include public vending machines, ATM kiosks and industrial automotive use
        • Designed for use on conductive or nonconductive surfaces

        Application Areas:

        • Terminals, Base Stations and Routers
        • Industrial, Commercial and Residential IoT
        • Industrial, Commercial and Residential Smart Home / Office
        • ATM Machines
        • IoT Dispensers
        • Vending Machines
        • Electrical Metering
        • Smart Cities and Infrastructure

        In the Box:

        • 1x 5G LTE Transit Antenna

        Documents:

        RFI TLA2150 Antenna - Datasheet RFI TLA2150 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length (cm) 18
        Width (cm) 18
        Height (cm) 10
        Antenna Application IoT and M2M, Terminal Antenna, Vehicle Antenna
        Antenna Configuration SISO
        Antenna Port Connectors SMA (M)
        Antenna Type Low Profile, Low Profile Transit
        Cable And Connector 5m of 9006 cable terminated with an SMA Male
        Cable Length (m) 5.0
        Cable Type 9006
        Coverage Type Omni-directional
        Frequency [MHz] 698-3800
        Ingress Protection (IP) IP65
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 3800
        Max Gain (dBd/dBi) 9.0
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 1.0
        Mount Supported Screw mount
        Mount Supported - Detailed Screw mount
        No. of Antenna Ports 1
        Nominal Gain [dBi] 4 @ 698-960 / 8 @1710-2700 / 9 @ 3400-3800
        Power [W] 10.0, 10
        Radome Diameter Mm 135
        Technologies Supported 4G, 5G
        Tuned Bandwidth Full. No tuning required
        VSWR <2.5:1
