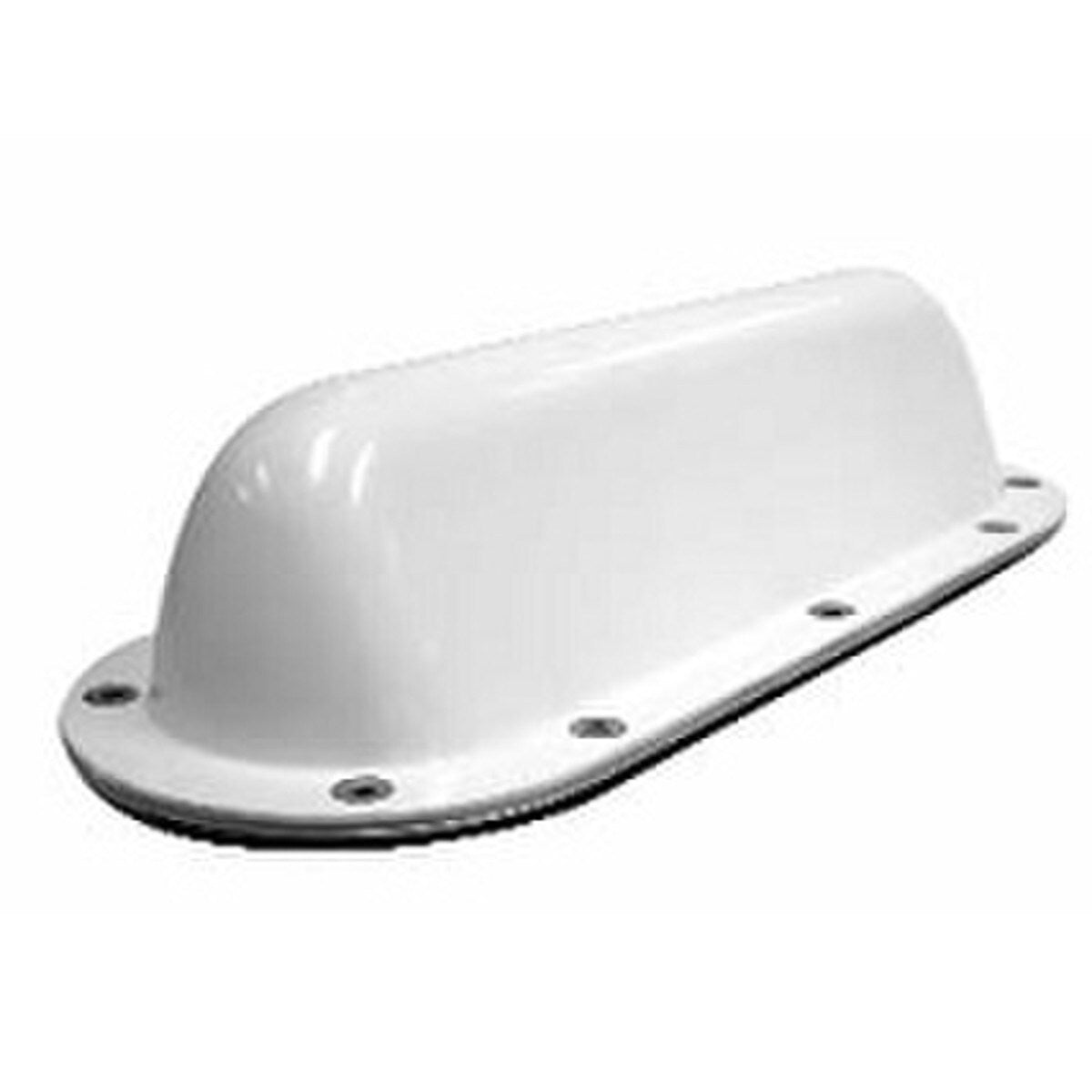

The TLA600 series is a range of low profile transmission line antennas for use in applications where little or no ground plane exists. These antennas (TLA600-66) can be used on buses, trucks, trains or in telemetry applications where the antennas are to be mounted on a fibreglass roof or similar non-conductive surface.
Product Features:
- Available with integrated active GPS antenna for asset tracking/vehicle location applications on request.
- Functions with or without a ground plane, allowing one antenna to be used in an entire system, regardless of mounting application.
- Performance equivalent to a 1/4 whip wave mounted in the centre of a metal roof
- All antennas supplied pre-tuned to the nominated bands and require no field adjustment
- Low profile (<80mm) height overall
- Plastic moulded radome is attractive and durable, resistant to car washes, UV Stable and weatherproofed
- Neoprene gasket seal provides excellent waterproofing of fitted antenna
- Available in all major UHF bands
Application Areas:
- Public Safety and Emergency Services
- Public Transport and Fleet Management
- Industrial and Mining Operations
- Utilities and Smart Grid Communication
- Railway and Aviation Communication
- Construction and Heavy Equipment
- Maritime and Offshore Communication
- Two-Way Radio Systems
- Government and Military Applications
In The Box:
- RFI UHF Unity Transit Antenna, MPN TLA600-66
Documents:
RFI TLA600-66 UHF Transit Antenna - Datasheet
RFI TLA600-66 UHF Transit Antenna - Installation Guide
