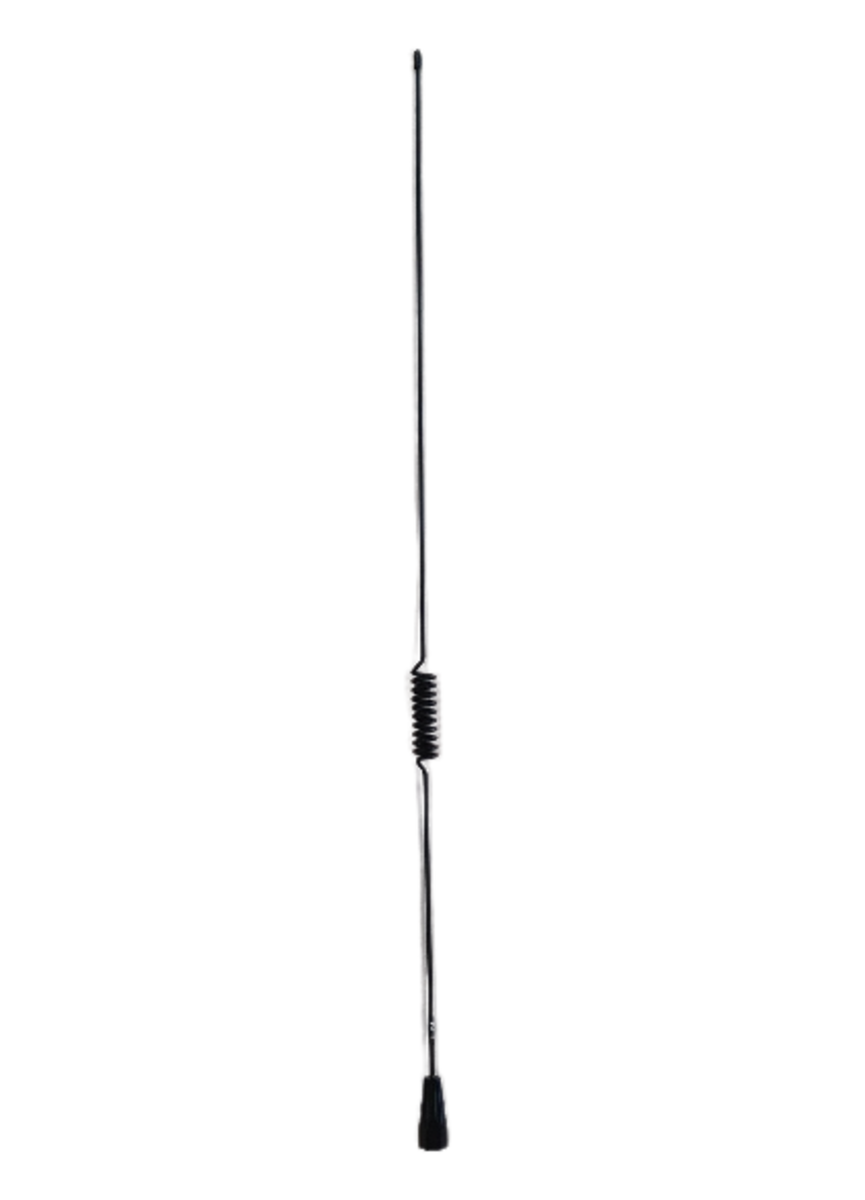

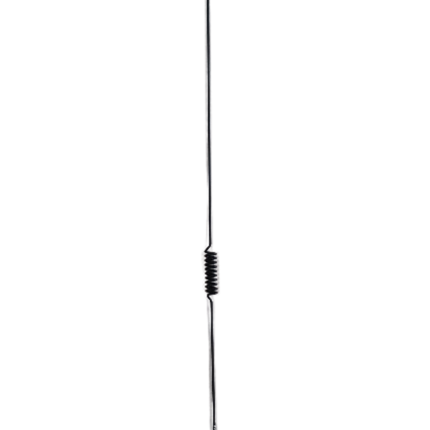

RFI CSW23-66 UHF Phasemaster Whip, 420-450 MHz, 4.5 dB - Black

RFI CSW23-66 UHF Phasemaster Whip, 420-450 MHz, 4.5 dB - Black

Sold out

Brand:
Item ID:
167015881
Export:
Restricted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CSW23-66
Send Request for Quote (RFQ) Discount Offers
RFI UHF 4.5 dB Phasemaster Whip (420-450 MHz); Black has stainless steel construction. It offers exceptional strength and designed for roof mounts.
Regular price $70.30
Regular price $0.00 Sale price $70.30
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CSW20 Series Phasemaster antennas stand out as the top choice for roof mounts, offering unmatched performance and exceptional strength. RFI UHF 4.5 dB Phasemaster Whip (420-450 MHz); Black is highly flexible and stainless steel whip make them a favorite for various roof mount applications.

Features:

  • Outstanding performance: Achieved through precisely matched phasing coil separating e wave over ½ wave electrical elements
  • Color coded bands: Supplied for fine-tuning in the field using a chart
  • Black flexible whip: Constructed from 17-7PH stainless steel, ensuring resilience against knocks and bumps

Documents:

RFI CSW23-66 Antenna - Datasheet

Product Specifications

MPN CSW23-66
Antenna application Vehicle Antenna
Antenna configuration SISO
Antenna type Ground Dependent
Band 420 - 440MHz
Brands RFI
Cable and connector Not included, order separately
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 420-440
Height 3
Installation type Vehicle mounting
Length 73
Low pim No
Max frequency mhz 440
Max gain dbd dbi 4.5
Mimo support No
Min frequency mhz 420
Min gain dbd dbi 4.5
Mount supported Magnetic base
Mount supported detailed MB10 or MB12 bases
Mounting MB10 or MB12 base (not included)
Nominal gain dbi 4.5
Packaging Clear hanging bag
Power w 100.0, 100
Technologies supported UHF
Tuned bandwidth 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
Tuning Trim to frequency using supplied tuning chart
Vswr 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
Whip length mm 687
Whip material 17-7 PH Stainless steel with black high gloss plating
Width 3
