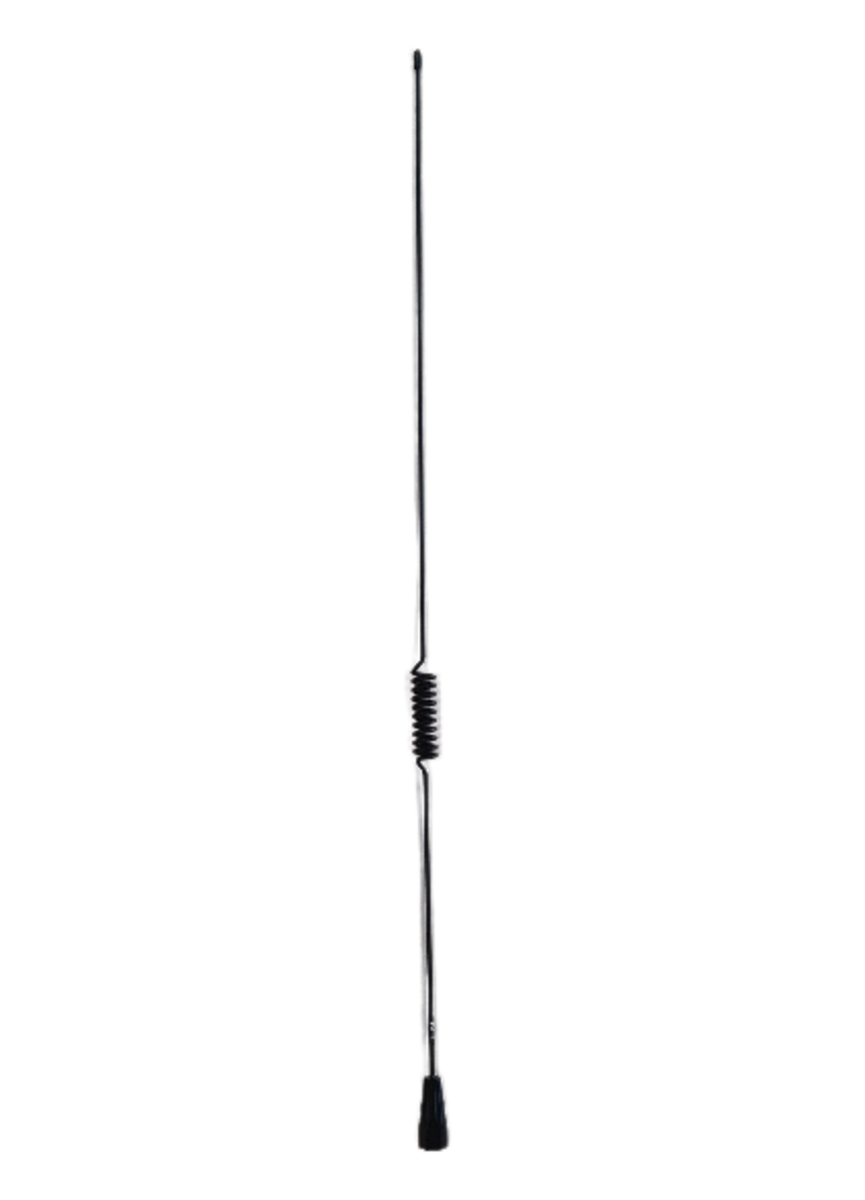

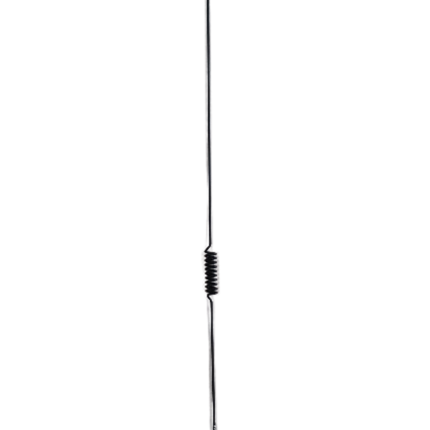

RFI CSW24 UHF Phasemaster Whip, 450-470 MHz, 4.5 dB - Black

    RFI CSW24 UHF Phasemaster Whip, 450-470 MHz, 4.5 dB - Black

      Product form

      RFI UHF 4.5 dB Phasemaster Whip (450-470 MHz), the most popular roof mounts due to their unmatched performance and superior strength.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015883
      MPN
      CSW24
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $45.20

      Export restricted item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The CSW20 Series, the original Phasemaster antennas are the most popular roof mounts due to their unmatched performance and superior strength. The highly flexible 17-7 PH stainless steel whip and consistent 4.5dB gain has made them a favorite in virtually all roof mount applications.

        Key Features:

        • Outstanding performance - precisely matched phasing coil separating e wave over 1/2 wave electrical elements
        • Supplied in colour coded bands then fine tuned in field with chart
        • Black flexible 17-7PH Stainless steel whip will always bounce back after knocks and bumps

        Documents:

        RFI CSW24 Antenna - Datasheet

        Product Specifications

        Product Category Antennas
        Brand RFI
        Length (cm) 62
        Width (cm) 3
        Height (cm) 3
        Antenna Application Vehicle Antenna
        Antenna Port Connectors Not included, order separately
        Antenna Type Ground Dependent
        Band 450 - 470MHz
        Cable And Connector Not included, order separately
        Coverage Type Omni-directional
        Frequency [MHz] 450-470
        Frequency Band UHF 380-520 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 470
        Max Gain (dBd/dBi) 4.5
        MIMO Support No
        Min Frequency (MHz) 450
        Min Gain (dBd/dBi) 4.5
        Mount Supported Magnetic base
        Mount Supported - Detailed Magnetic base
        No. of Antenna Ports 1
        Nominal Gain [dBi] 4.5
        Power [W] 100
        Technologies Supported UHF
        Tuned Bandwidth 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
        Tuning Trim to frequency using supplied tuning chart
        VSWR 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
        Whip Length mm 608
        Whip Material 17-7 PH Stainless steel with black high gloss plating
