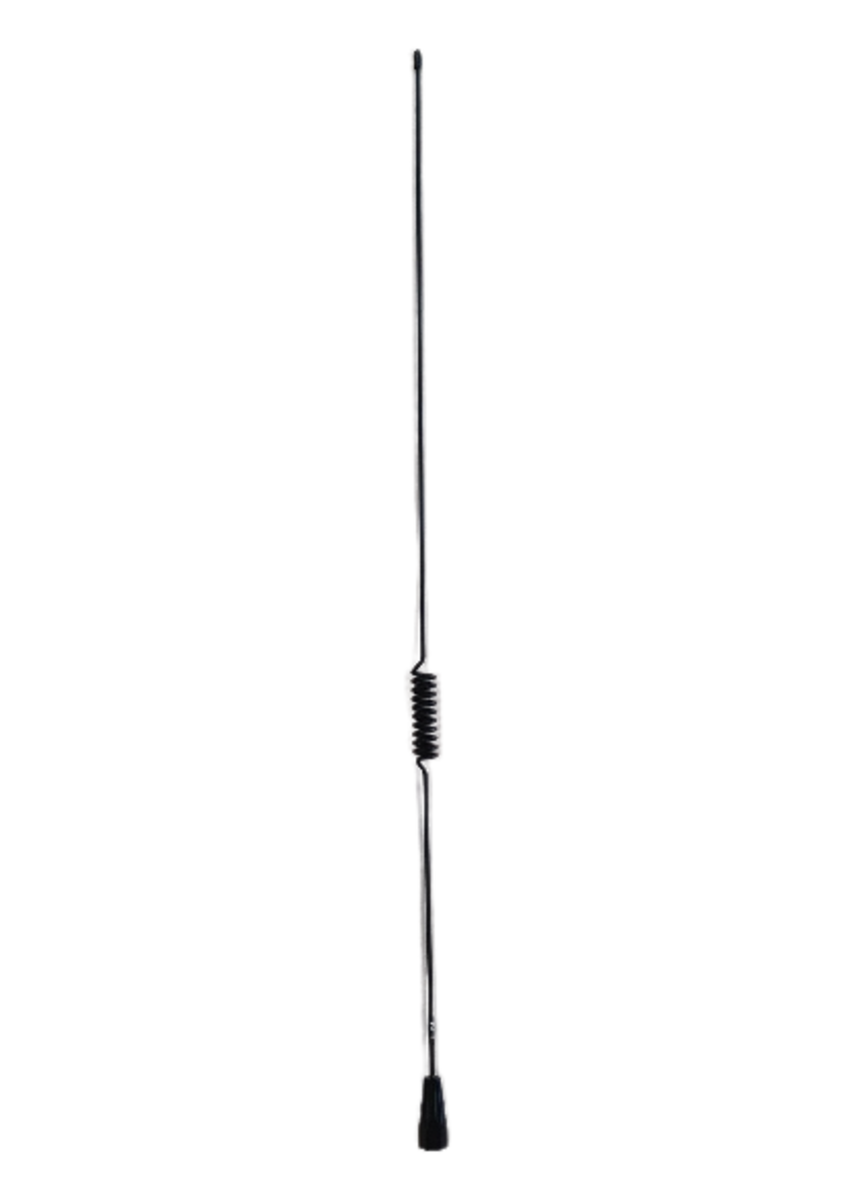

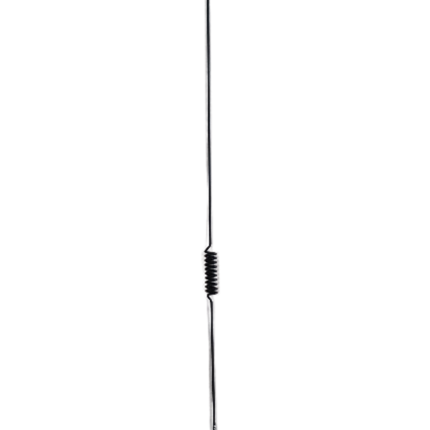

RFI CSW26 UHF Phasemaster Whip, 490-520 MHz, 4.5 dB - Black

    RFI CSW26 UHF Phasemaster Whip, 490-520 MHz, 4.5 dB - Black

      Product form

      RFI UHF 4.5 dB Phasemaster Whip (490-520 MHz), the most popular roof mounts due to their unmatched performance and superior strength.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015887
      MPN
      CSW26
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $43.26

      Export restricted item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI UHF 4.5 dB Phasemaster Whip (490-520 MHz); Black

        • Outstanding performance - precisely matched phasing coil separating e wave over ½ wave electrical elements.
        • Supplied in colour coded bands then fine tuned in field with chart.
        • Black flexible 17-7PH Stainless steel whip will always bounce back after knocks and bumps.

        Documents:

        RFI CSW26 Antenna - Datasheet
        RFI CSW26 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length (cm) 60
        Width (cm) 3
        Height (cm) 3
        Antenna Application Vehicle Antenna
        Antenna Port Connectors Not included, order separately
        Antenna Type Ground Dependent
        Band 490 - 520MHz
        Cable And Connector Not included, order separately
        Coverage Type Omni-directional
        Frequency [MHz] 490-520
        Frequency Band UHF 380-520 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 520
        Max Gain (dBd/dBi) 4.5
        MIMO Support No
        Min Frequency (MHz) 490
        Min Gain (dBd/dBi) 4.5
        Mount Supported Magnetic base
        Mount Supported - Detailed Magnetic base
        No. of Antenna Ports 1
        Nominal Gain [dBi] 4.5
        Power [W] 100
        Technologies Supported UHF
        Tuned Bandwidth 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
        Tuning Trim to frequency using supplied tuning chart
        VSWR 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
        Whip Length mm 560
        Whip Material 17-7 PH Stainless steel with black high gloss plating
