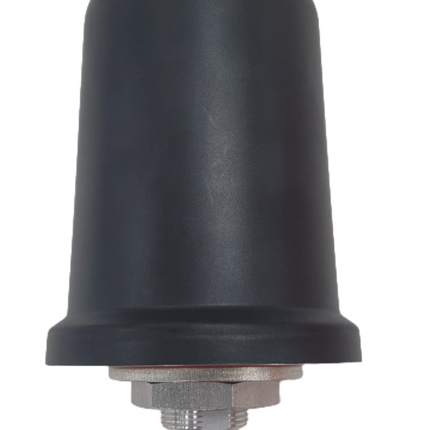

The RFI LPU3847-N UHF Broadband Antenna 380-470 MHz; Low Profile; N(F) is a rugged UHF broadband antenna designed for vehicle installations with low overhead clearances, such as buses, fire-fighting appliances, railroad equipment, airport service vehicles, and construction equipment. This antenna provides wideband coverage from 380-470 MHz without the need for field tuning, making it ideal for various applications.

Features:

• High Impact Moulded ASA Radome: The antenna is housed in a high impact moulded ASA UV stable radome, ensuring long-lasting performance under severe environmental conditions.
• Compact Lightweight Design: Despite its rugged construction, this antenna features a compact and lightweight design, ideal for mobile applications.
• Low Profile: With a low profile design, this antenna minimizes exposure to theft or vandalism.
• Wideband Coverage: Covers the Australian GRN band, providing wideband coverage from 380-470 MHz.
• Integrated N Female Connector: Features an integrated N female connector for ease of installation.
• All Weather Operation (IP67): Designed for all weather operation, this antenna is rated IP67 for protection against dust and water ingress.

Electrical Specifications:

• Frequency MHz: 380-470
• Peak Gain dBi: 2.5
• VSWR: <1.5:1
• Polarization: Vertical
• Impedance Ω: 50
• Radiation Pattern: Omni-directional
• Power Input (Max) W: 50

Mechanical Specifications:

• Mounting: Screw Mount
• Dimensions mm: Ø 96 x 130
• Radome: ASA UV Stable
• Radome Colour: Black
• Antenna Base: Aluminum
• Operating Temperature °C: -40 to +85
• Connector: Integrated N female
• Certificates: IP67, IP69, IK09

Documents:

RFI LPU3847-N Antenna - Datasheet
