RFI FW15-HD UHF Antenna Whip, Heavy Duty Fibreglass, 477 MHz, 4.5 dB

    RFI FW15-HD UHF Antenna Whip, Heavy Duty Fibreglass, 477 MHz, 4.5 dB

      Product form
      Brand:
      RFI
      Item ID:
      168015922
      MPN:
      FW15-HD
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

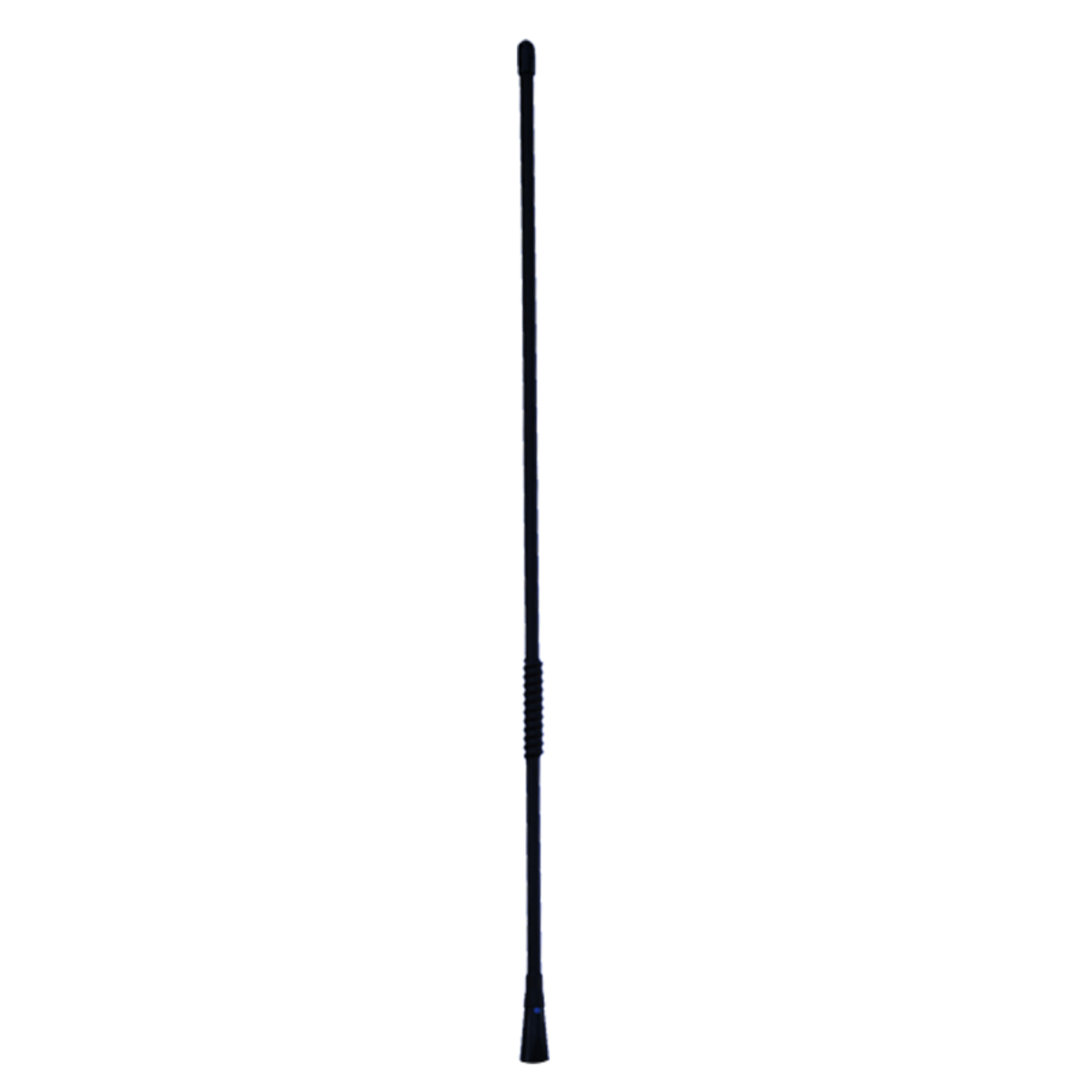

      FW15-HD is a heavy-duty 4.5 dBi fibreglass whip antenna features black heatshrink tubing and a black chrome RFI-style ferrule. It fits standard 5/16 26 TPI bases, measures 580 mm, and operates at 470-490 MHz.

      Available

      $47.04

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        TheFW15-HD antennas are traditional fiberglass roof mount antennas from RFI designed for high gain performance in a durable package. These dual-element fiberglass collinear antennas (5/8 wave over a ½ wave) provide a 4.5dBi omnidirectional gain. Constructed from heavy-duty fiberglass for maximum strength and rigidity, the antennas feature a copper braided whip with a centrally located phasing coil that separates the two electrical elements. For environmental protection, the antennas are covered with UV-stabilized black heat shrink.

        Key Features:

        • Omnidirectional 4.5 dBi gain performance
        • Robust fibreglass rod covered with UV stable heatshrink
        • Supplied pre-tuned to cover 470 - 490 MHz
        • Mounts to a standard 5/16"- 26 TPI base (MB10 or MB12)

        Documents:

        RFI FW15-HD Fibreglass Whip - Datasheet

        Product Specifications

        Brand RFI
        Length 60
        Width 2
        Height 2
        Antenna Application Vehicle Antenna
        Antenna Port Connectors No connector
        Antenna Type Ground Dependent
        Band 470 - 490MHz
        Coverage Type Omni-directional
        Frequency [MHz] 806-870
        Frequency Band UHF 380-520 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 490
        Max Gain (dBd/dBi) 4.5
        MIMO Support No
        Min Frequency (MHz) 470
        Min Gain (dBd/dBi) 4.5
        Mount Supported Magnetic base
        Mount Supported - Detailed Magnetic base
        No. of Antenna Ports 1
        Nominal Gain [dBi] 4.5
        Power [W] 50
        Technologies Supported UHF
        Tuned Bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        VSWR <2.0:1
        Whip Length mm 595
        Whip Material Heavy Duty Fibreglass Rod Covered with UV Stable Heatshrink.
