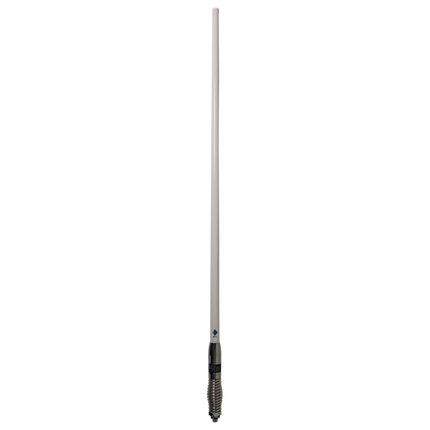

RFI CDQ5000-W UHF Collinear Antenna, 477 MHz, 5 dBi - White

    RFI CDQ5000-W UHF Collinear Antenna, 477 MHz, 5 dBi - White

      Product form
      Brand:
      RFI
      Item ID:
      167015695
      MPN:
      CDQ5000-W
      Export:
      Restricted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI UHF CB 5 dBi Collinear Antenna (477 MHz); 5m FME(F) UHF(A) - White are based on our CD5000 antenna and designed to the same revolutionary performance.

      Sold-out

      $246.03

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

        Features:

        • Patented PCB based Meander collinear design offering the ultimate in pattern and gain stability.
        • 5 dBi gain across the full 477 MHz UHF CB band.
        • Q-Fit removable whip system for ease of removal in low height environments such as multi-story car parks, car wash's or for security.
        • Ground Independent

        Documents:

        RFI CDQ5000 Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 99
        Width 3
        Height 3
        Adapter Included FME to UHF
        Antenna Application Vehicle Antenna
        Antenna Cable Type RG58
        Antenna Port Connectors FME (F)
        Antenna Type Ground Independent
        Band 477MHz
        Cable And Connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
        Cable Length (m) 5
        Coverage Type Omni-directional
        Frequency [MHz] 477
        Frequency Band UHF 380-520 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 478
        Max Gain (dBd/dBi) 5
        MIMO Support No
        Min Frequency (MHz) 476
        Min Gain (dBd/dBi) 5
        Mount Supported Spring base
        Mount Supported - Detailed Spring base
        Mounting Threaded Stud
        No. of Antenna Ports 1
        Nominal Gain [dBi] 5
        Power [W] 25
        Radome Diameter Mm 22.5 - 15.6
        Technologies Supported UHF CB
        Tuned Bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        VSWR <1.5:1
        Whip Material PCB radiating element housed in tapered high impact fibreglass
