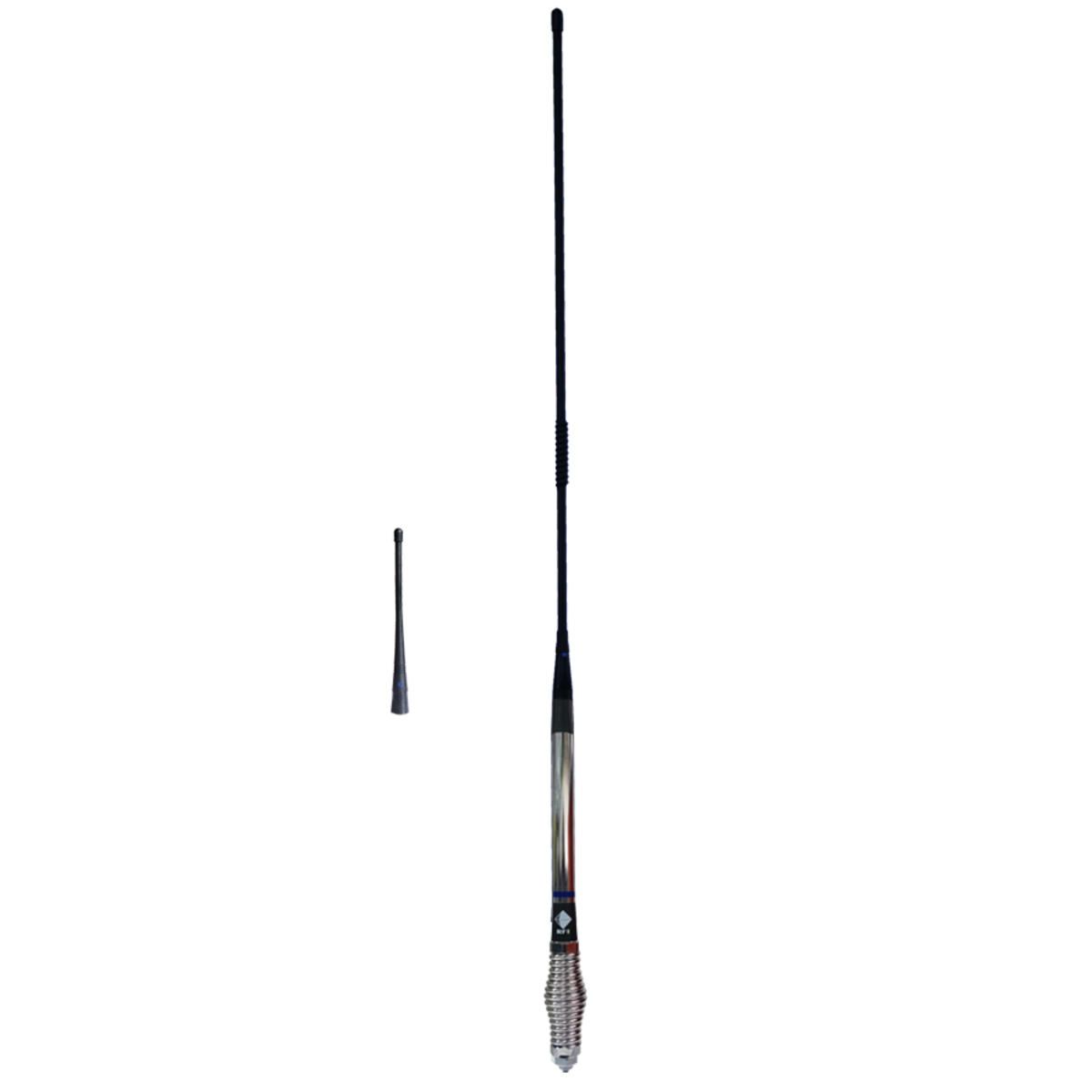

RFI CD953 Country Pack1 - CD953-71-75 UHF CB Antenna + SW125 Whip

    RFI CD953 Country Pack1 - CD953-71-75 UHF CB Antenna + SW125 Whip

      Product form

      RFI UHF CB 6.5 dB E/Feed Mopole Antenna (470-490 MHz); FW15-HD/SW125; 5 FME(F) & UHF(M) Adaptor are high performance elevated feed mobile antennas

      Brand
      RFI
      Export
      Accepted
      Item ID
      168028525
      MPN
      CD953-71-75+SW125
      Shipping
      Not available to ship
      Standard Warranty Global Insurance Except USA & Canada

      Sold-out

      $183.83

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna design Design guide ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna designBefore you buy a two-way radio system, know which of the three ACMA paths it will run under: a class licence you never apply...Read the guide

        Product Description

        Features:

        • Totally ground plane independent
        • Elevated feed boosts radiating element above obstructions
        • FW15-HD heavy duty fibreglass whip section provides unsurpassed performance and strength
        • SW125 unity gain whip
        • Quality construction - Choke assembly is crafted from solid brass and available in both chrome and black finishes
        • Supplied pre-terminated with FME connector and UHF adaptor
        Can be used with a variety of mounts. See accessories section for options.

        Documents:

        RFI CD900 Series Antenna - Datasheet
        RFI CD900 Series Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length (cm) 62
        Width (cm) 10
        Height (cm) 6
        Antenna Application Vehicle Antenna
        Antenna Cable Type Cellfoam
        Antenna Configuration SISO
        Antenna Port Connectors FME (F), UHF (M)
        Antenna Type Omni
        Band 470-490MHz
        Cable And Connector UHF adapter supplied., 5m Cellfoam with FME-101 terminated
        Cable Length (m) 5
        Connector FME(F), UHF(M)
        Coverage Type Omni-directional
        Frequency [MHz] 470 - 490
        Frequency Band UHF 380-520 MHz
        Frequency Range [MHz] 470 - 490
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 490
        Max Gain (dBd/dBi) 6.5
        MIMO Support No
        Min Frequency (MHz) 470
        Min Gain (dBd/dBi) 0
        Mount Supported Spring base
        Mount Supported - Detailed Spring base
        Mounting Spring Assembly with Threaded Stud
        No. of Antenna Ports 2
        Nominal Gain [dBq] 6.5 & Unity (SW125)
        Power [W] 100
        Technologies Supported UHF CB
        Tuned Bandwidth Full. No tuning required
        Tuning Supplied pre-tuned

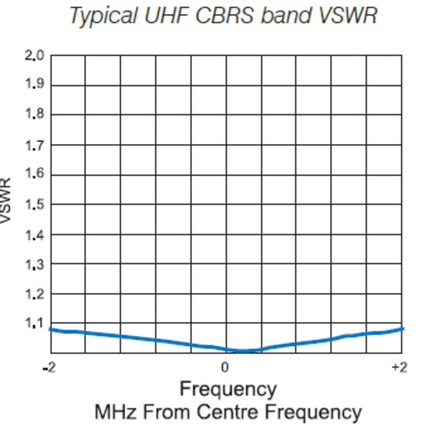

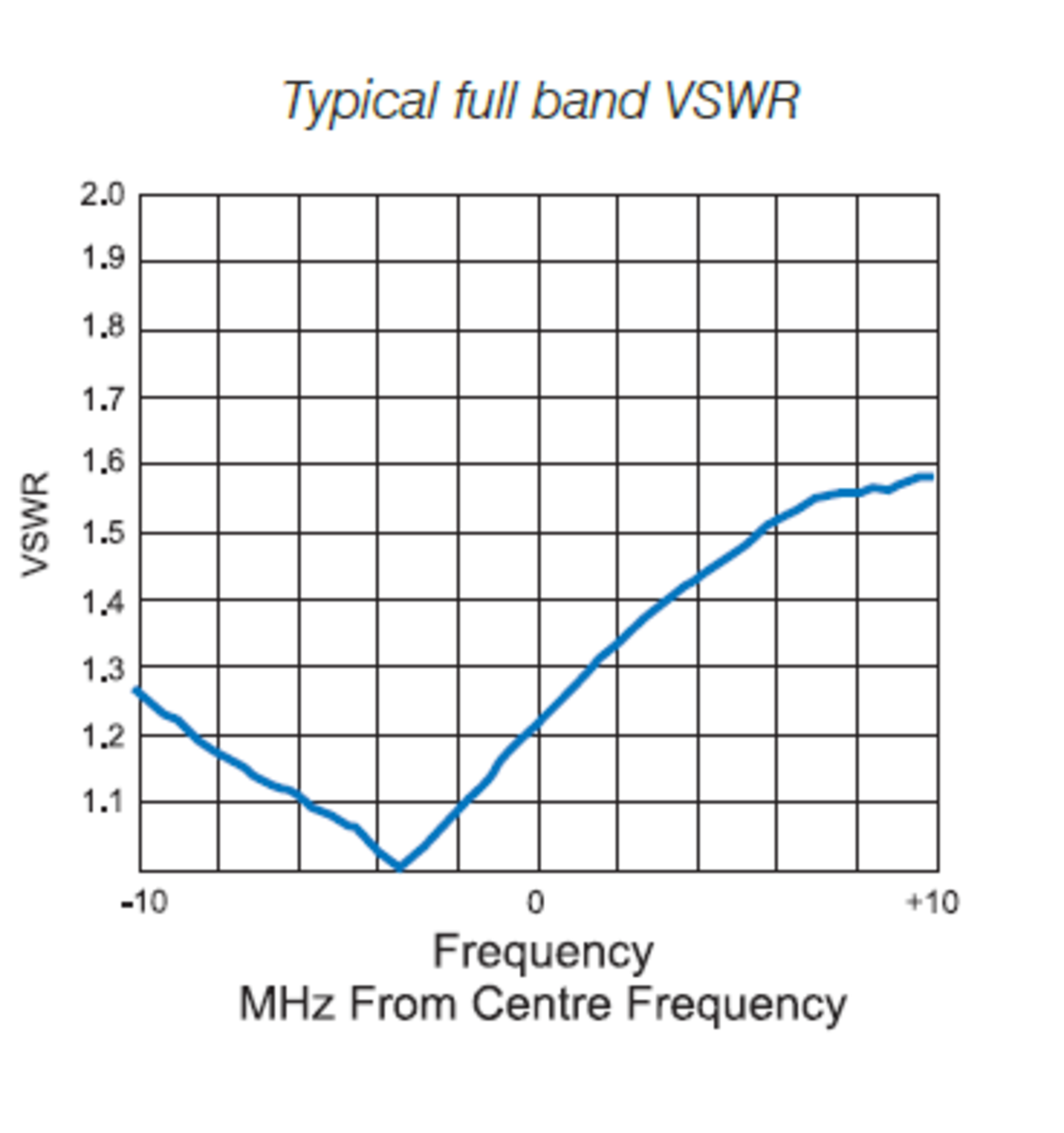

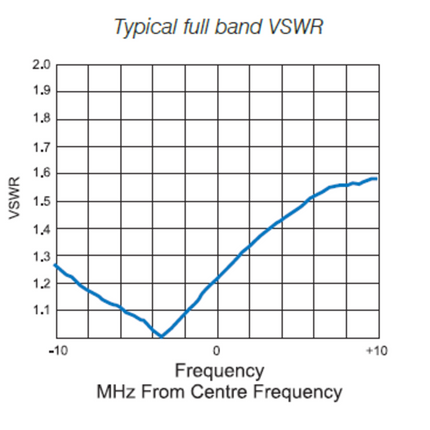

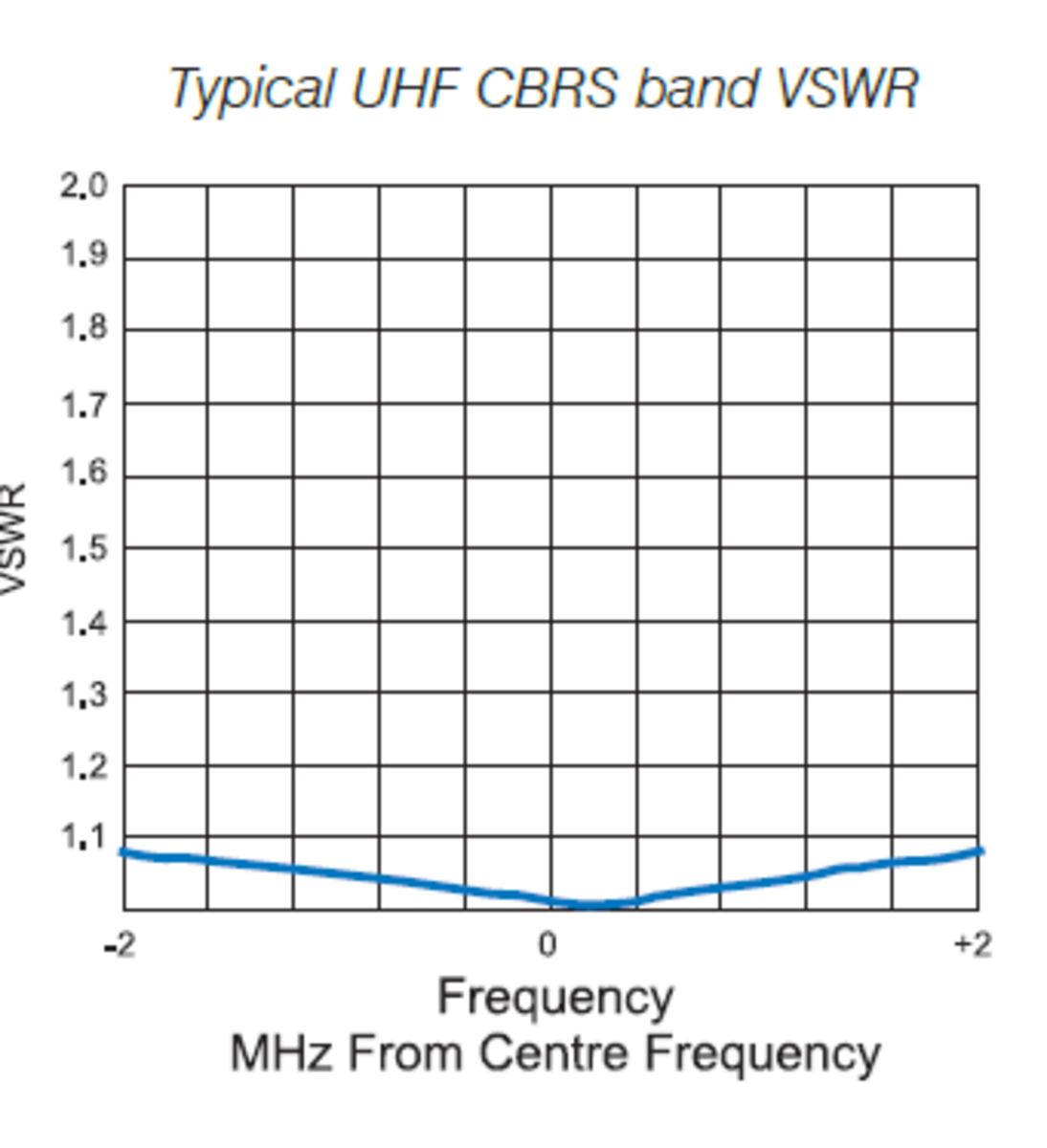

        VSWR <1.6:1 @ 470-490MHz & <1.25:1 @ 476-478MHz
        Whip Length mm 850
        Whip Material Fibreglass whip section on bright chrome choke & spring
