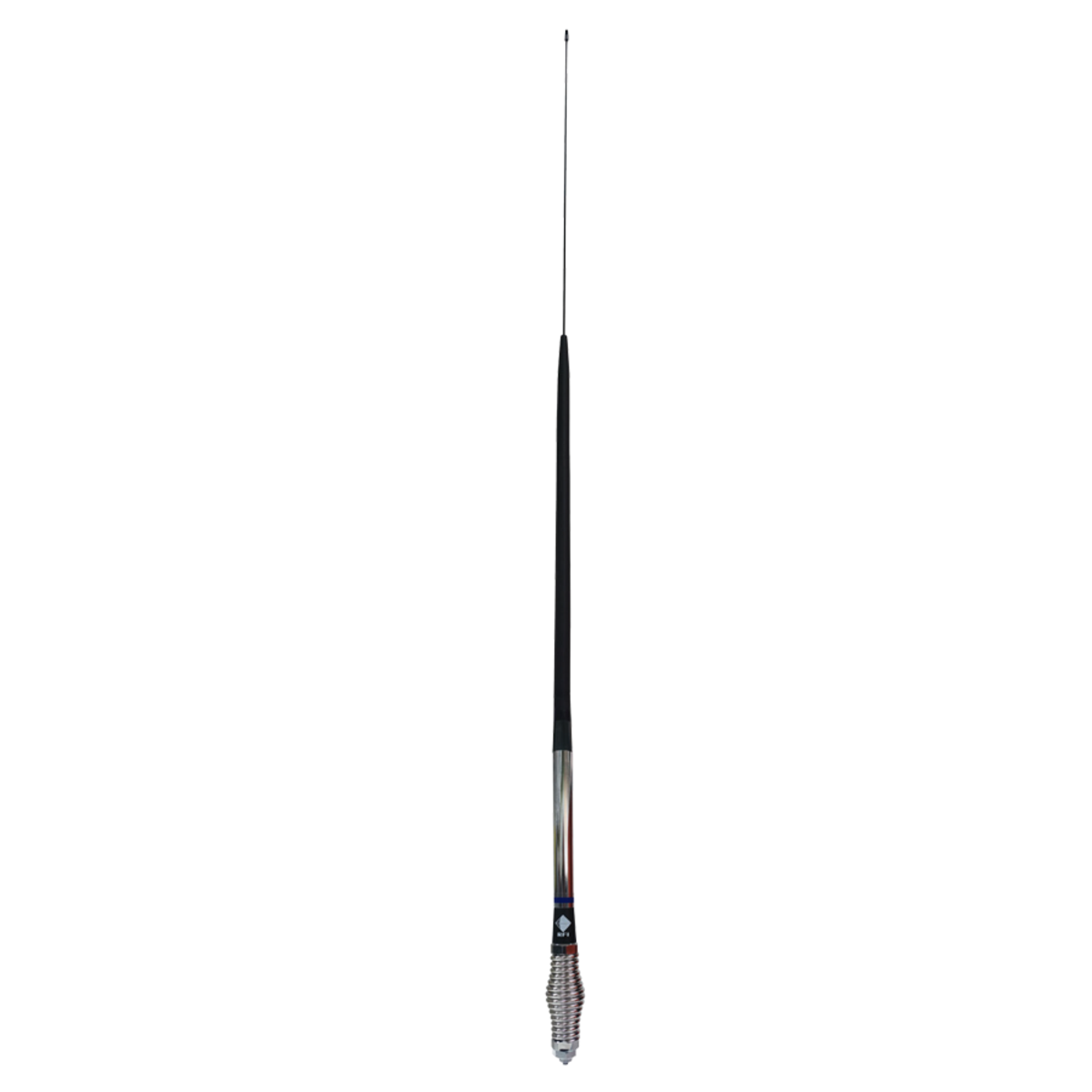

RFI's CD951-71-75 antenna is a UHF Mopole antenna with MSW35 whip and provides excellent radio performance over 470-490 MHz frequency range. This antenna comes with a 5m cable with FME-Female connector that make antenna installation an easy job. A Pulse UHF-Male adapter is included in the box for easy integration with standard radio systems. The CD900 Series are high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted, high above a vehicle, CD900 series antennas deliver a full 6.5 dB gain. When the CD951-71-75 gets mounted in other positions, such as on a vehicle fender or bull bar, the elevated feed design places a large portion of the antenna above the vehicle cabin, providing good all round performance regardless of mounting position.

Key Features:

• Totally ground plane independent
• Elevated feed boosts radiating element above obstructions
• MSW35 Phasemaster II whip section provides unsurpassed performance and strength
• Quality construction - Choke assembly is crafted from solid brass and available in both chrome and black finishes
• Supplied pre-terminated with FME(F) connector and UHF adaptor
• Can be used with a variety of mounts. See accessories section for options.

In The Box:

• 1x RFI CD951-71-75 UHF Mopole Antenna with Spring and 5m cable terminated with FME(F) connector
• 1x UHF(M) adapter

Documents:

RFI CD951 Antenna - Datasheet RFI CD951 Antenna - Cabling Instructions
