RFI’s CD951-71-75 antenna is a UHF Mopole antenna with MSW35 whip and provides excellent radio performance over 470-490 MHz frequency range. This antenna comes with a 5m cable with FME-Female connector that make antenna installation an easy job. A Pulse UHF-Male adapter is included in the box for easy integration with standard radio systems.
The CD900 Series are high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted, high above a vehicle, CD900 series antennas deliver a full 6.5 dB gain. When the CD951-71-75+SW125 City/Country Pack gets mounted in other positions, such as on a vehicle fender or bull bar, the elevated feed design places a large portion of the antenna above the vehicle cabin, providing good all round performance regardless of mounting position.
- Totally ground plane independent
- Elevated feed boosts radiating element above obstructions
- MSW35 Phasemaster IIâ„¢ whip section provides unsurpassed performance and strength
- Quality construction - Choke assembly is crafted from solid brass and available in both chrome and black finishes
- Supplied pre-terminated with FME(F) connector and UHF(M) adaptor
- Can be used with a variety of mounts. See accessories section for options.
RFI SW125 Whip:
The SW125 antennas are low-profile, flexible ¼ wave antennas that offer outstanding omnidirectional performance when mounted high on a vehicle. They are ideal for roof mounting, especially when paired with an MB10/MB12 base or a CD90/900 Series elevated feed choke for other mounting locations. These antennas are available pre-tuned to specific frequency bands (380MHz to 520MHz) or can be field-tuned from 400-520MHz. Designed to withstand extreme conditions, the SW120 Series is made from twisted stainless steel wire encased in a UV-stabilized TPU radome, making them both flexible and robust.
- RFI's SW125 whip has omnidirectional unity gain performance.
- These antennas are flexible and robust with UV-stable construction.
- These antennas are supplied pre-tuned to specific bands and color-coded for easy identification.
- SW125 is field-tuneable from 400-520 MHz.
- This antenna mounted to the CD951 choke or to a standard 5/16†– 26 TPI base (MB10 or MB12).
In the Box:
This country pack includes the following:

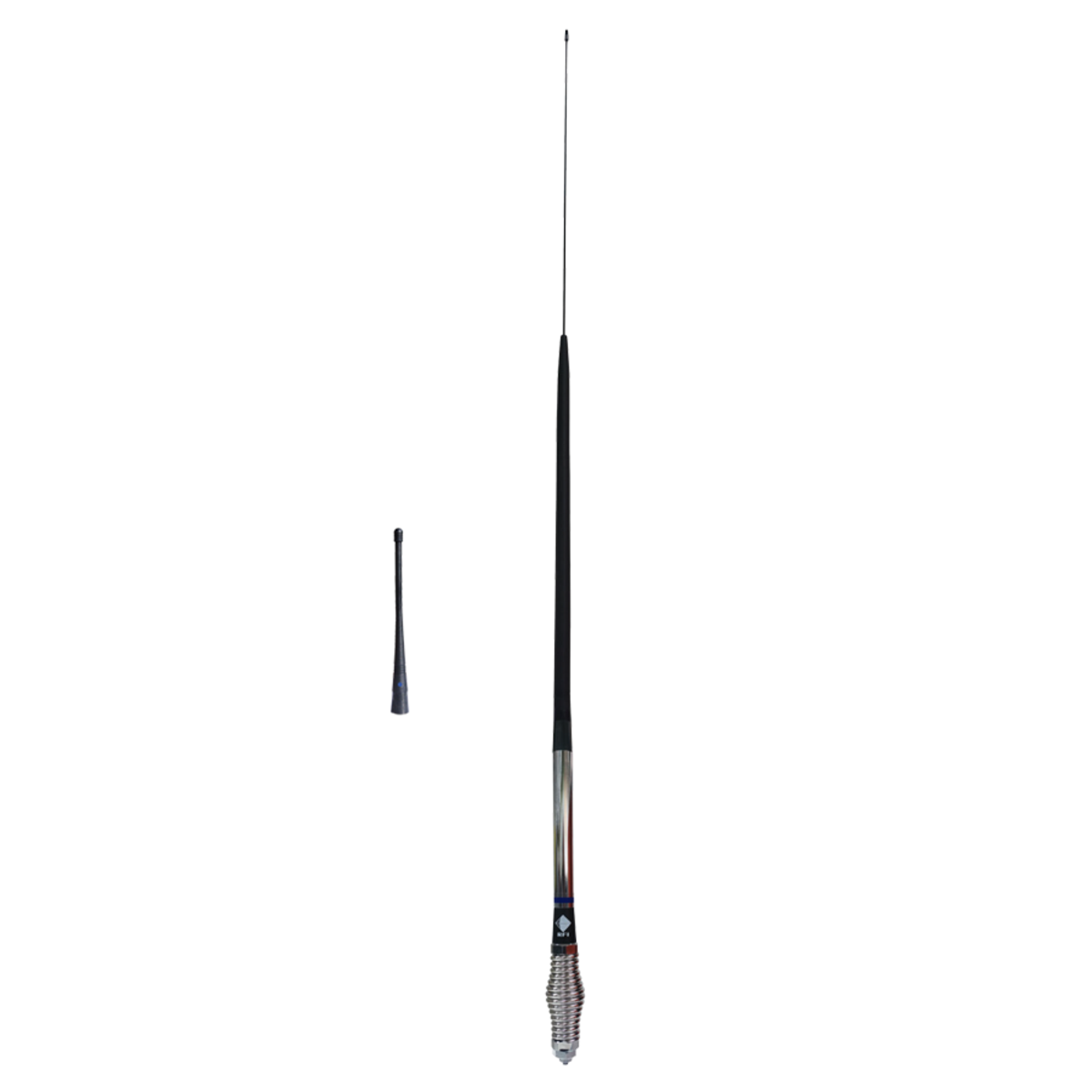

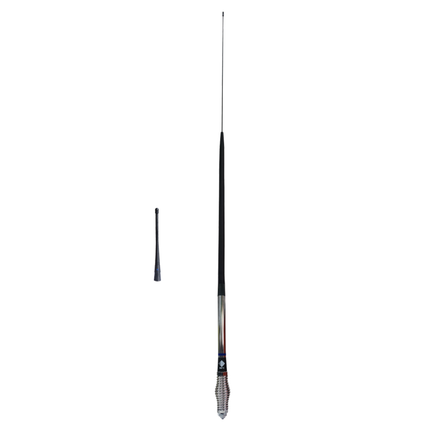

- 1x CD951-71-75 UHF CB Antenna with MSW35 Whip, 5m cable terminated with FME(F) connector
- 1x SW125 UHF 1/4 wave Whip mountable on CD951 choke
- 1x UHM(M)adapter
Documents:
RFI CD951-71-75 Antenna - Installation Guide
