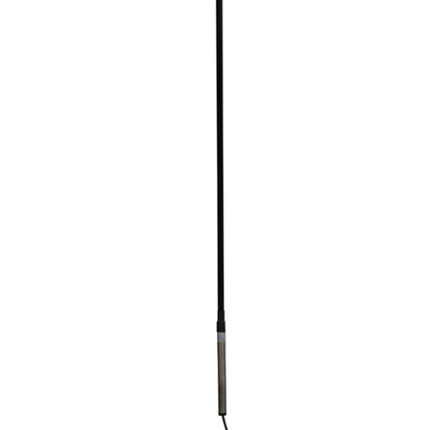

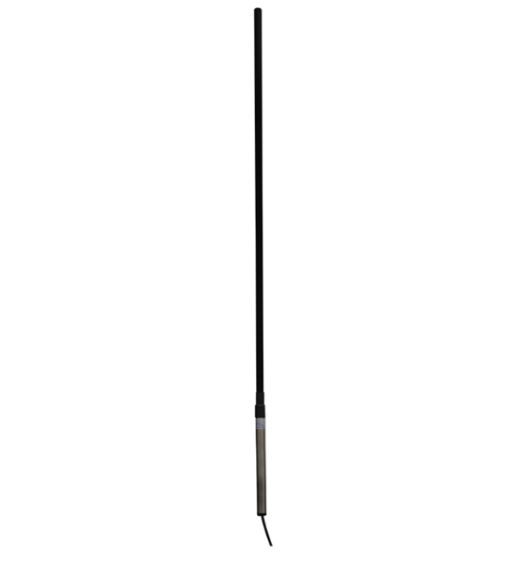

RFI UHF Collinear Antenna 5 dBi 330-380 MHz; COL3000; 0.3m N(F)
RFI UHF Collinear Antenna 5 dBi 330-380 MHz; COL3000; 0.3m N(F); features breakthrough Meander® collinear technology. This (COL3000) high-gain, omni-directional antenna ensures consistent gain and radiation patterns through its patented PCB-based design.
The antenna is DC grounded, providing effective lightning protection and minimizing static noise for clearer communication. This feature enhances the antenna's durability and ensures reliable operation even in challenging weather conditions. The COL3000 is factory-tuned for optimal performance, offering ease of installation and immediate usability. This makes it ideal for a wide range of applications, including public safety, transportation, and industrial settings.
RFI UHF Collinear Antenna COL3000 features a rugged construction that can withstand harsh environmental conditions. Its sturdy build ensures long-lasting performance, making it a cost-effective solution for demanding applications. The antenna's omni-directional design allows for flexible mounting options, including pole mounting and wall mounting. This versatility makes it suitable for a variety of installation scenarios, providing flexibility and ease of use.
Features:
-
Meander® Collinear Technology: Patented PCB-based design for unparalleled pattern and gain stability.
-
High Gain: Achieve 5 dBi gain for enhanced UHF signal performance.
-
Stainless Steel Mounting Tube: 230 mm (x 25 mmØ) tube provides durability and secure vertical support.
-
Easy Installation: Designed for vertical mounting with two optional UC1 brackets.
-
Versatile Frequency Range: RFI UHF Collinear Antenna covers 330-380 MHz for a wide range of UHF applications.
-
DC Grounded: Ensures lightning protection and dissipates static noise for uninterrupted communication.
Electrical Specifications:
- Frequency MHz: 330-380
- Nominal Gain dBd (dBi): 3.0 (5.1)
- Tuned Bandwidth: Full

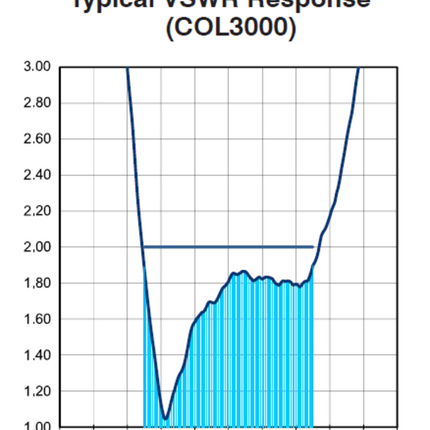

- VSWR: <2.0:1
- Impedance Ω: 50

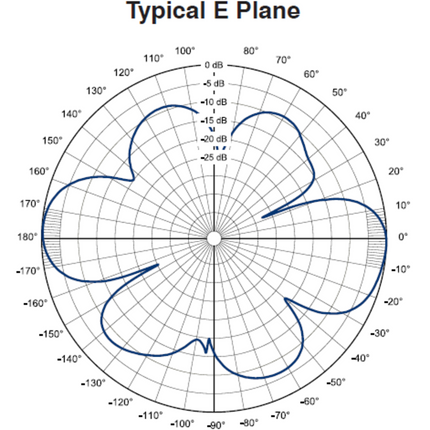

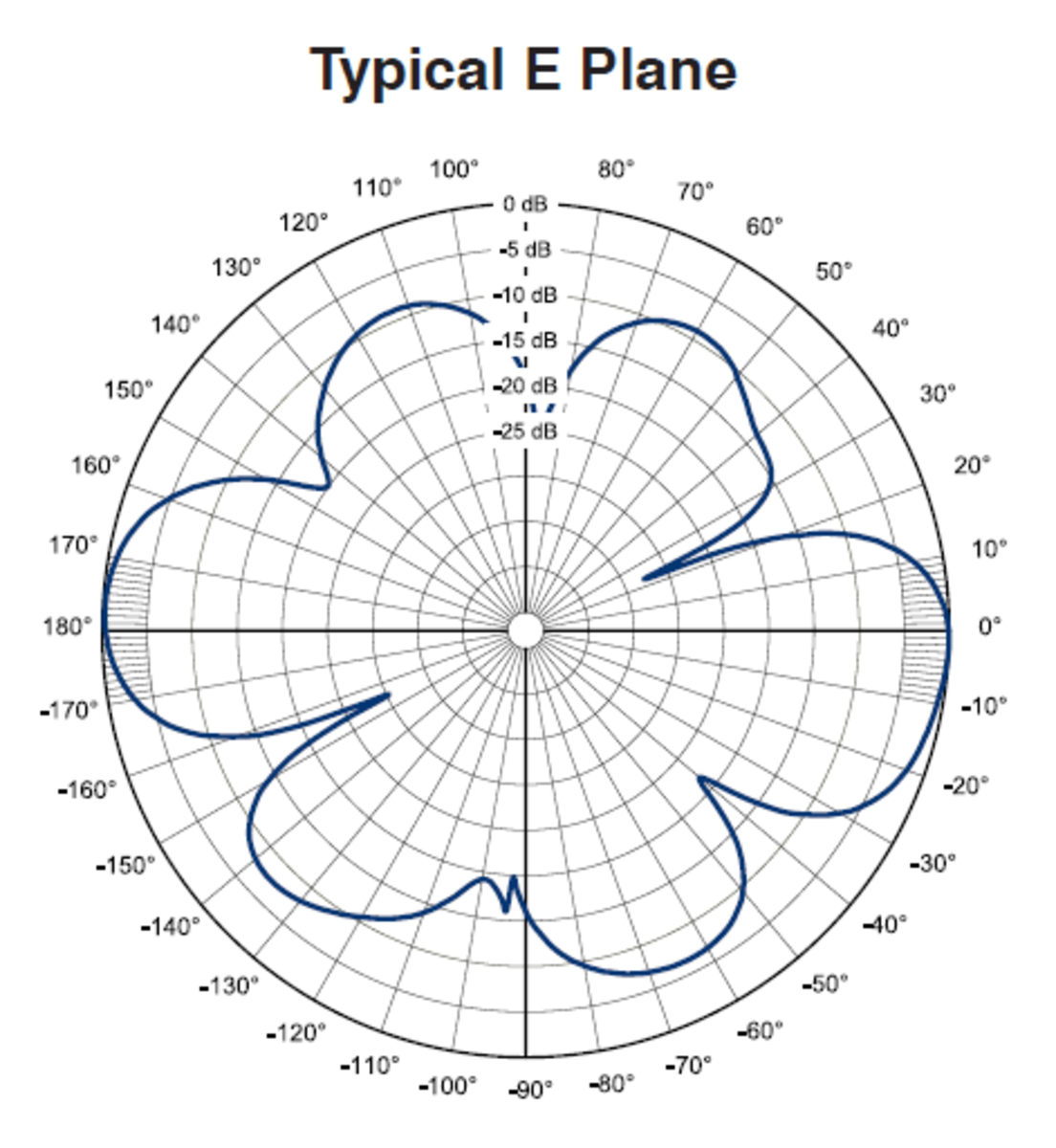

- Vertical Beamwidth °: 35
- Horizontal Beamwidth °: Omni ± 0.5dB
- Power W: 50
Mechanical Specifications:
- Construction: Black fiberglass radome
- Radome Diameter mm: 23
- Length mm: 1400
- Weight kg: 0.5
- Cable / Connector: 300mm 9006 low loss cable terminated with N Type female connector
- Mounting: 230mm (x 25mm Ø) polished stainless steel mounting tube
- Suggested Clamps: 2 x UB1
- Projected Area – No Ice (cm²): 334
- Projected Area – With Ice (cm²): 662
- Lateral Thrust @ 160km/h (N): 89
- Wind Gust Rating (km/h): 240
- Torque @ 160km/h (Nm): 51
Documents:
RFI COL3000 Antenna - Datasheet
