RFI CR4-67 UHF Corner Reflector Antenna, 400-520 MHz, N-Female

    RFI CR4-67 UHF Corner Reflector Antenna, 400-520 MHz, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015859
      MPN:
      CR4-67
      Export:
      Restricted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI UHF Corner Reflector Antenna (400-520 MHz) is single element 90° corner reflectors, delivering high gain and high front to back ratios for long path.

      Sold-out

      $976.44

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI UHF Corner Reflector Antenna (400-520 MHz); N(F)

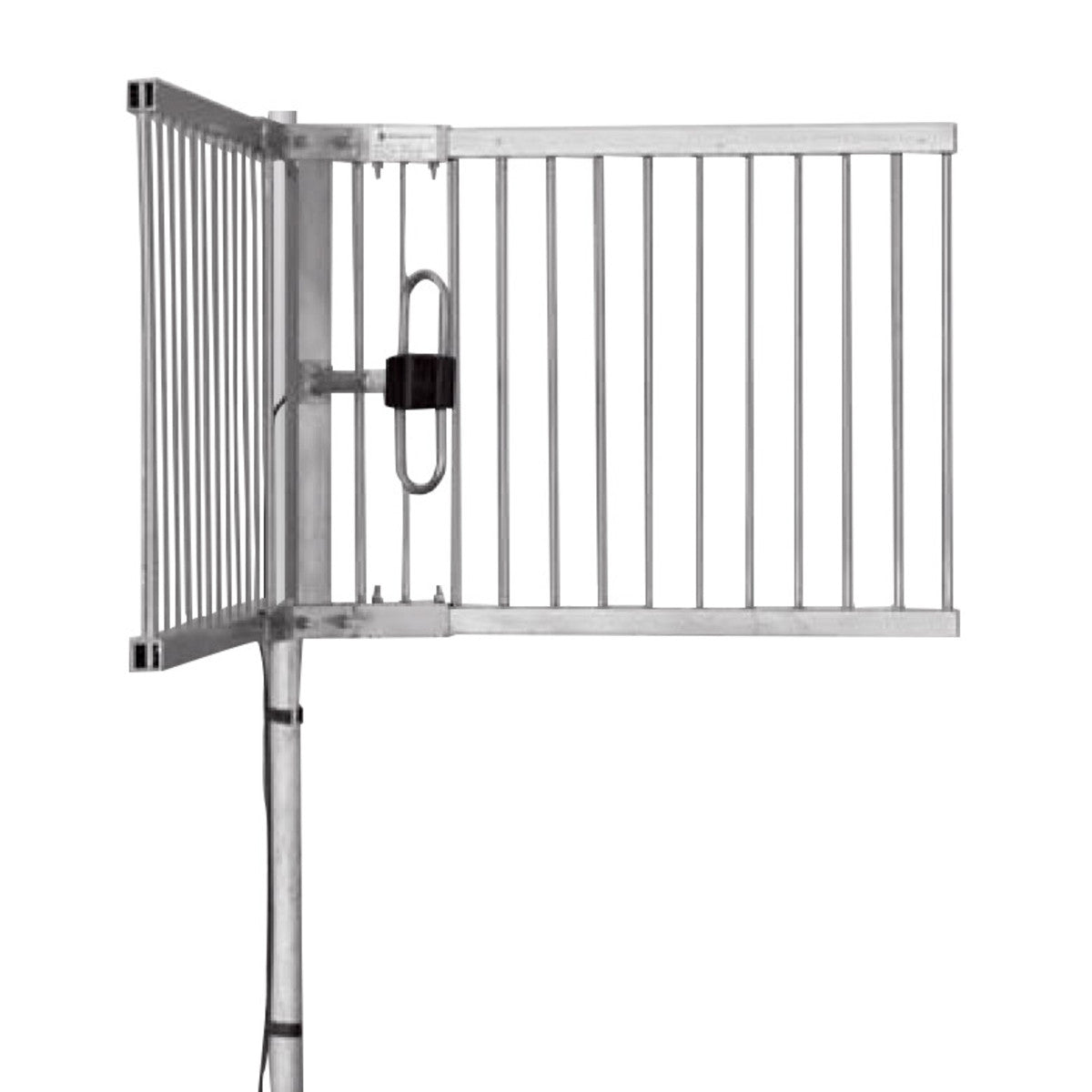

        The CR4 and CR8 are constructed with an aluminium grid-style back screen with close element spacing to maximise pattern control characteristics. The all welded screens are of alodined aluminium finish for corrosion protection and the single folded dipole element is mounted using all stainless steel fittings. The CR8 corner reflector is similar in electrical design however it features a solid sheet back screen, constructed of all stainless steel with a dipole element enclosed in a small UPVC radome.
        • Extremely high front to back ratios and minimal side lobe characteristics
        • Shipped unassembled for ease of handling, easily assembled on site
        • Direct DC grounded for lightning protection and reduction of precipitation static noise

        Product Specifications

        Brand RFI
        Length 99
        Width 3
        Height 3
        Antenna Application Base Station Antenna
        Antenna Features Multi Band Capable, PIM Rated, High Power Multi Channel
        Antenna Type Exposed Dipole Array
        Construction Welded aluminium grid with alodined finish and stainless steel fittings
        Frequency [MHz] 400-520
        Frequency Band UHF 380-520 MHz
        Front Back Ratio dB 23
        Horizontal Beamwidth 40?
        Mounting Area Clamps to diam. 40-52mm, 568mm apart (supplied)
        PIM (3rd, 2 x 20 W) dBc <140
        Polarisation Vertical
        Power [W] 500
        Termination N female with short 9142 cable tail
        Tuned Bandwidth Full. No tuning required
        Vertical Beamwidth 57?
        VSWR <1.5:1
