RFI TLA600-65-GPS UHF Transit Antenna, 400-420 MHz, 2 dBi, N-Female and SMA-Female

    RFI TLA600-65-GPS UHF Transit Antenna, 400-420 MHz, 2 dBi, N-Female and SMA-Female

      Product form
      Brand:
      RFI
      Item ID:
      168016154
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      TLA600-65-GPS
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI TLA600-65-GPS UHF/GPS Unity Transit Antenna (400-420 MHz); UHF(F) SMA(F) low profile transmission line antennas for use in applications.

      Available

      $350.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

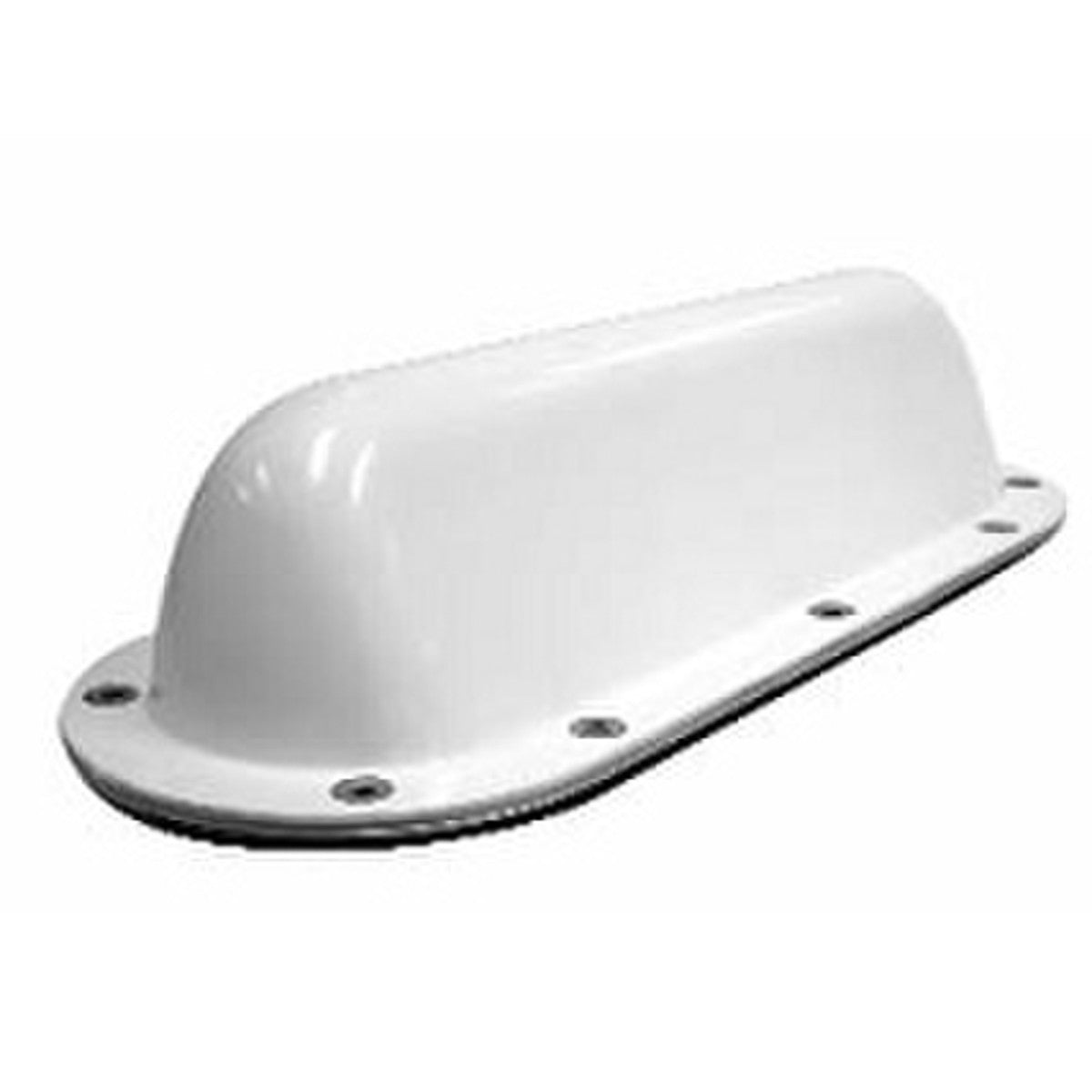

        RFI TLA600-65-GPS UHF/GPS Unity Transit Antenna (400-420 MHz); N(F) SMA(F)

        RFI TLA600-65-GPS antenna can be used on buses, trucks, trains or in telemetry applications where the antennas are to be mounted on a fibreglass roof or similar non-conductive surface.

        Features:

        • Available with integrated active GPS antenna for asset tracking/vehicle location applications on request.
        • Functions with or without a ground plane, allowing one antenna to be used in an entire system, regardless of mounting application.
        • Performance equivalent to a 1/4 whip wave mounted in the centre of a metal roof
        • All antennas supplied pre-tuned to the nominated bands and require no field adjustment
        • Low profile (80 mm) height overall
        • Plastic moulded radome is attractive and durable, resistant to car washes, UV Stable and weatherproofed
        • Neoprene gasket seal provides excellent waterproofing of fitted antenna
        • Available in all major UHF bands

        Documents:

        RFI TLA600 Series Antenna - Datasheet RFI TLA600 Series Antenna - Installation Guide

        Product Specifications

        MPN TLA600-65-GPS
        Antenna application Vehicle Antenna
        Antenna port connectors N (F), SMA (F)
        Antenna type Low Profile Transit
        Band 400 - 420MHz & GPS
        Brands RFI
        Coverage type Omni-directional
        Frequency band UHF 380-520 MHz
        Height 7.8
        Ingress protection ip IP65
        Installation type Vehicle mounting
        Length 37.5
        Low pim No
        Max frequency mhz 420
        Max gain dbd dbi 1
        Mimo support No
        Min frequency mhz 400
        Min gain dbd dbi 1
        Mount supported Screw mount, Gasket
        Mount supported detailed Screw mount, Gasket
        Mounting Screw and Gasket
        No of antenna ports 2
        Nominal gain dbi Unity and 28 @ GPS
        Packaging Cardboard Box
        Power w 50
        Technologies supported UHF, GPS
        Termination N female connector. Alternative BNC connector also available (subject to MOQ)
        Tuned bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        Vswr <2.0:1
        Width 14
