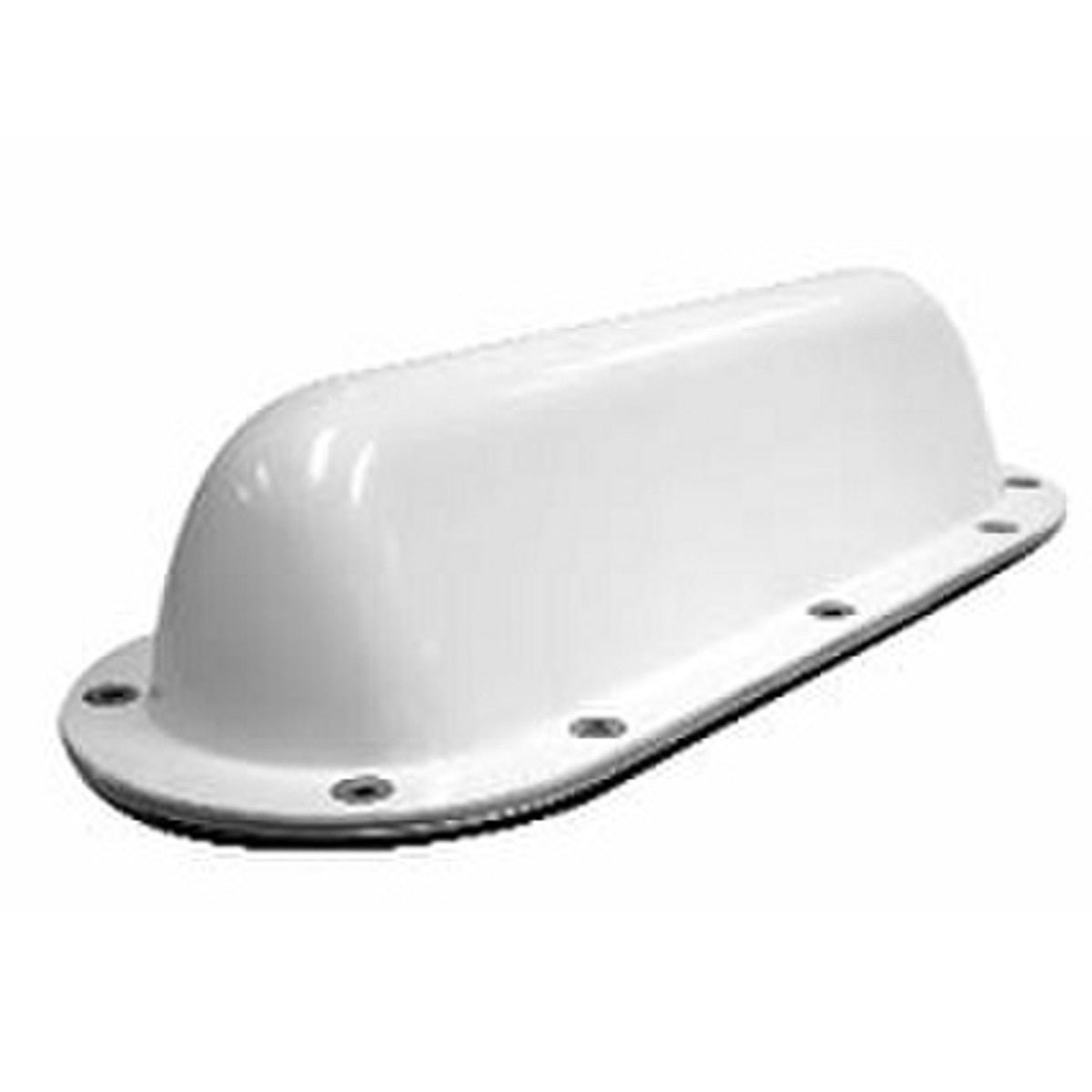

RFI TLA600-66-GPS UHF Transit Antenna, 410-430 MHz, 2 dBi, N-Female and SMA-Female

    RFI TLA600-66-GPS UHF Transit Antenna, 410-430 MHz, 2 dBi, N-Female and SMA-Female

      Product form
      Brand:
      RFI
      Item ID:
      168016156
      MPN:
      TLA600-66-GPS
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI TLA600-66-GPS UHF/GPS Unity Transit Antenna (410-430 MHz); UHF(F) SMA(F), low profile transmission line antennas for use in applications.

      Available

      $396.37

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI TLA600-66-GPS UHF/GPS Unity Transit Antenna (410-430 MHz); N(F) SMA(F)

        The RFI TLA600-66-GPS antenna can be used on buses, trucks, trains or in telemetry applications where the antennas are to be mounted on a fibreglass roof or similar non-conductive surface.

        Features:

        • Available with integrated active GPS antenna for asset tracking/vehicle location applications on request.
        • Functions with or without a ground plane, allowing one antenna to be used in an entire system, regardless of mounting application.
        • Performance equivalent to a 1/4 whip wave mounted in the centre of a metal roof
        • All antennas supplied pre-tuned to the nominated bands and require no field adjustment
        • Low profile (80 mm) height overall
        • Plastic moulded radome is attractive and durable, resistant to car washes, UV Stable and weatherproofed
        • Neoprene gasket seal provides excellent waterproofing of fitted antenna
        • Available in all major UHF bands

        Documents:

        RFI TLA600 Series Antenna - Datasheet RFI TLA600 Series Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 37.5
        Width 14
        Height 7.8
        Antenna Application Vehicle Antenna
        Antenna Port Connectors N (F), SMA (F)
        Antenna Type Low Profile Transit
        Band 410 - 430MHz + GPS
        Coverage Type Omni-directional
        Frequency Band UHF 380-520 MHz
        Ingress Protection (IP) IP65
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 430
        Max Gain (dBd/dBi) 1
        MIMO Support No
        Min Frequency (MHz) 410
        Min Gain (dBd/dBi) 1
        Mount Supported Screw mount, Gasket
        Mount Supported - Detailed Screw mount, Gasket
        Mounting Screw and Gasket
        No. of Antenna Ports 2
        Nominal Gain [dBi] Unity and 28 @ GPS
        Power [W] 50
        Technologies Supported UHF, GPS
        Termination N female connector. Alternative BNC connector also available (subject to MOQ)
        Tuned Bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        VSWR <2.0:1
