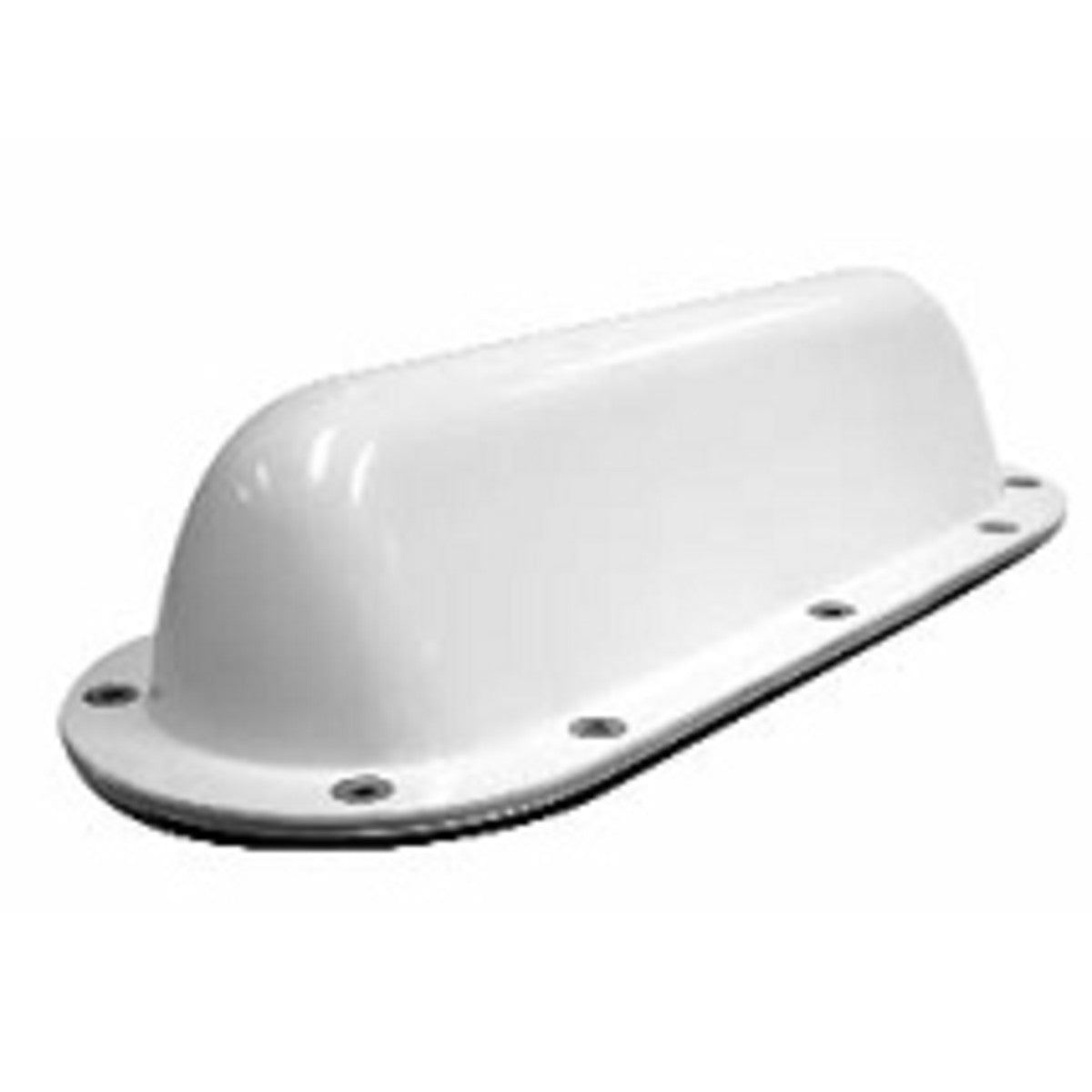

RFI TLA600-67-GPS UHF Transit Antenna, 430-450 MHz, 2 dBi, N-Female and SMA-Female

    RFI TLA600-67-GPS UHF Transit Antenna, 430-450 MHz, 2 dBi, N-Female and SMA-Female

      Product form
      Brand:
      RFI
      Item ID:
      168016160
      MPN:
      TLA600-67-GPS
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI TLA600-67-GPS UHF/GPS Unity Transit Antenna (430-450 MHz); UHF(F) SMA(F), low profile transmission line antennas for use in applications.

      $396.37

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      RFI TLA600-67-GPS UHF/GPS Unity Transit Antenna (430-450 MHz); N(F) SMA(F)

      The RFI TLA600-67-GPS antenna can be used on buses, trucks, trains or in telemetry applications where the antennas are to be mounted on a fibreglass roof or similar non-conductive surface.

      Features:

      • Available with integrated active GPS antenna for asset tracking/vehicle location applications on request.*
      • Functions with or without a ground plane, allowing one antenna to be used in an entire system, regardless of mounting application.
      • Performance equivalent to a 1/4 whip wave mounted in the centre of a metal roof
      • All antennas supplied pre-tuned to the nominated bands and require no field adjustment
      • Low profile (80 mm) height overall
      • Plastic moulded radome is attractive and durable, resistant to car washes, UV Stable and weatherproofed
      • Neoprene gasket seal provides excellent waterproofing of fitted antenna
      • Available in all major UHF bands

      Documents:

      RFI TLA600 Series Antenna - Datasheet RFI TLA600 Series Antenna - Installation Guide

      Product Specifications

      Brand RFI
      Length 37.5
      Width 14
      Height 7.8
      Antenna Application Vehicle Antenna
      Antenna Port Connectors N (F), SMA (F)
      Antenna Type Low Profile Transit
      Coverage Type Omni-directional
      Frequency Band UHF 380-520 MHz
      Ingress Protection (IP) IP65
      Installation Type Vehicle mounting
      Low PIM No
      Max Frequency (MHz) 450
      Max Gain (dBd/dBi) 1
      MIMO Support No
      Min Frequency (MHz) 430
      Min Gain (dBd/dBi) 1
      Mount Supported Screw mount, Gasket
      Mount Supported - Detailed Screw mount, Gasket
      No. of Antenna Ports 2
      Power [W] 50
      Technologies Supported UHF, GPS
