RFI HPA-4547-BNC UHF Hand Portable Antenna, 450-470 MHz, 2 dBi, BNC-Male

    RFI HPA-4547-BNC UHF Hand Portable Antenna, 450-470 MHz, 2 dBi, BNC-Male

      Product form
      Brand:
      Item ID:
      168015959
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      HPA-4547-BNC

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI UHF Hand Portable Antenna (450-470 MHz); BNC(M) is ideal for for workshop use with most models and are supplied factory tuned for ease of installation.

      Sold-out/Backorder

      $30.90

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

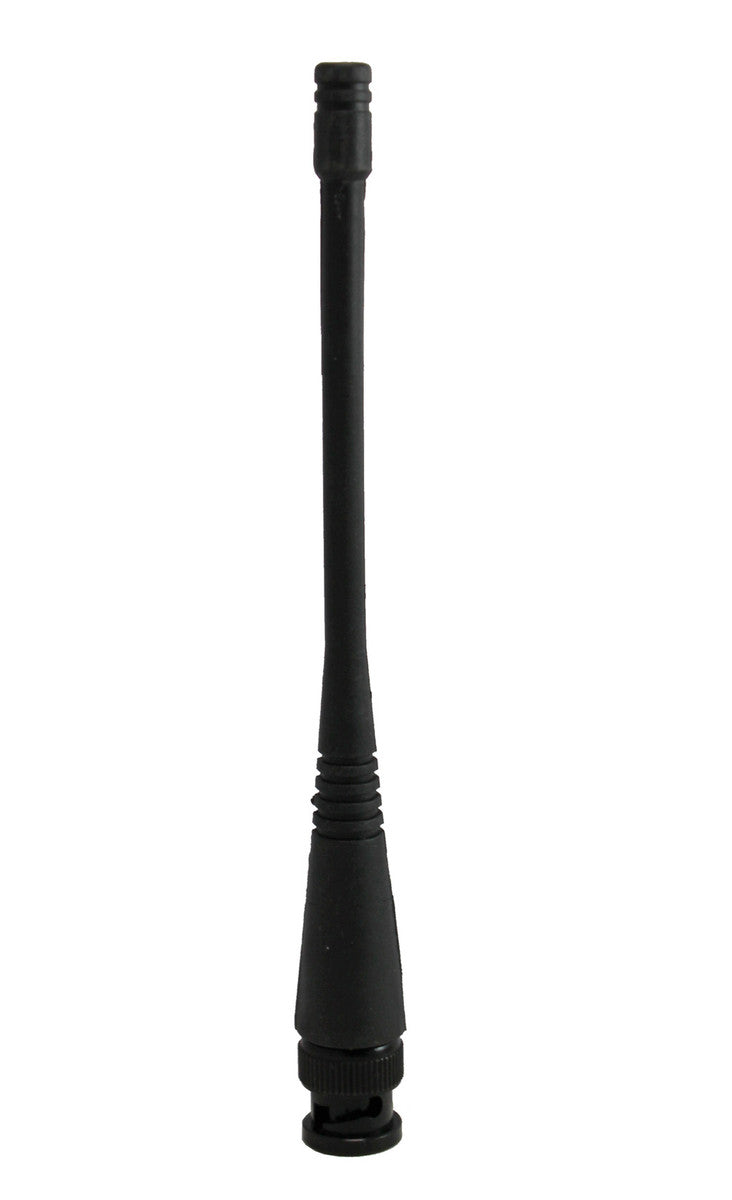

        RFI UHF Hand Portable Antenna (450-470 MHz); BNC(M)

        • Attractive, modern styling
        • Superior performance
        • Engineered to withstand extreme conditions of temperature & humidity
        • Also available with SMA (female), SMA (female special) and MX connectors to suit most radios.

        Documents:

        RFI HPA-4547-BNC Hand Portable Antenna - Datasheet

        Product Specifications

        MPN HPA-4547-BNC
        Antenna application Handheld Antenna

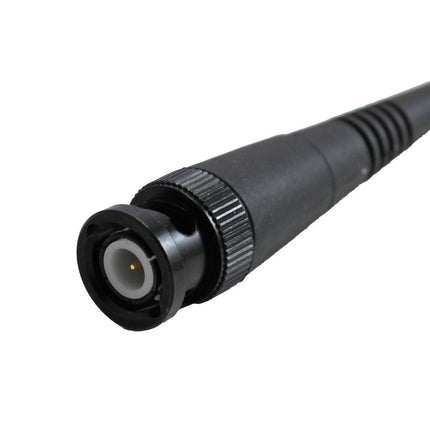

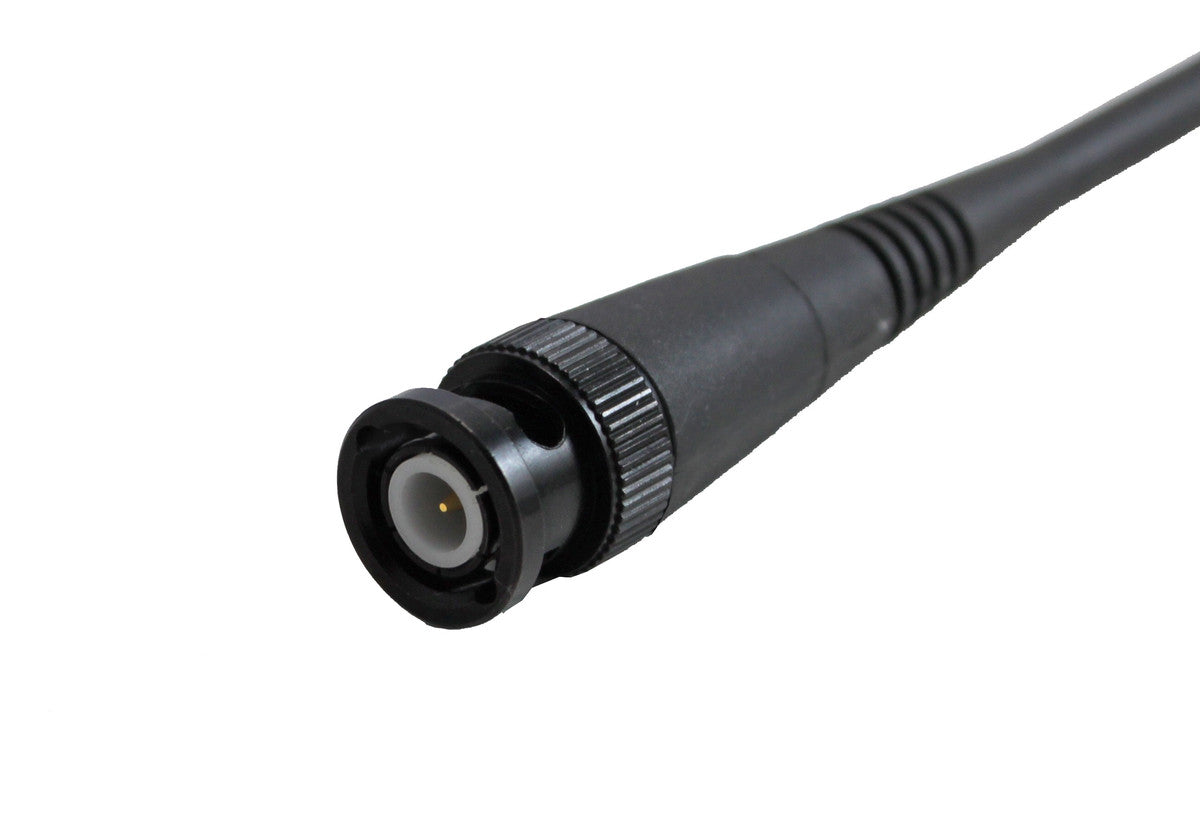

        Antenna port connectors BNC (M)
        Antenna type Ground Independent
        Brands RFI
        Connector vhf BNC Male
        Coverage type Omni-directional
        Frequency band UHF 380-520 MHz
        Frequency mhz 260-800
        Height 3
        Ingress protection ip IP67
        Installation type Device mounting
        Length 20
        Low pim No
        Max frequency mhz 470
        Max gain dbd dbi 1.0
        Mimo support No
        Min frequency mhz 450
        Min gain dbd dbi 1.0
        Mount supported Connector mount
        Mount supported detailed Device mount
        No of antenna ports 1
        Technologies supported UHF
        Vswr <2.0:1

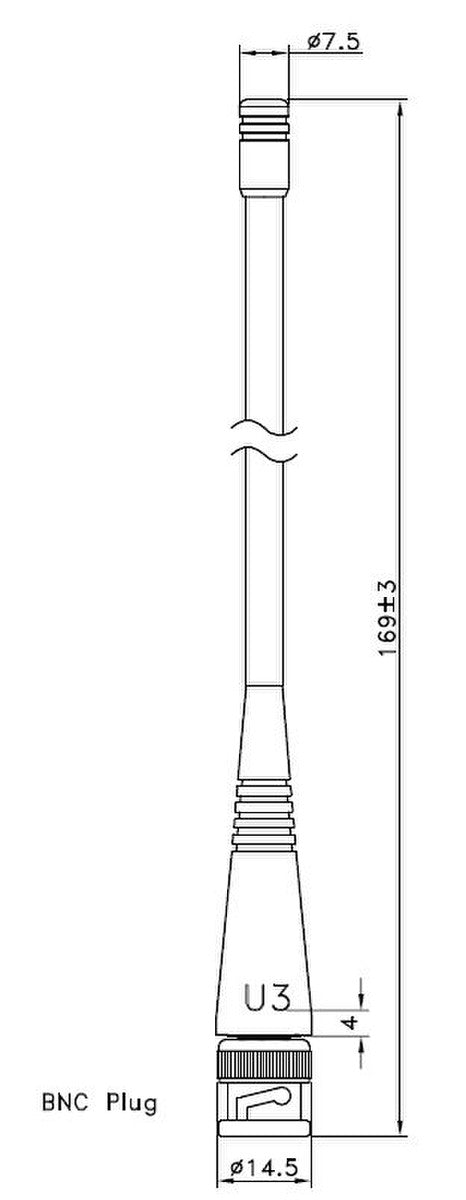

        Whip length mm 169mm
        Width 3
