RFI HPA-4752-BNC UHF Hand Portable Antenna, 470-520 MHz, 2 dBi, BNC-Male

    RFI HPA-4752-BNC UHF Hand Portable Antenna, 470-520 MHz, 2 dBi, BNC-Male

      Product form
      Brand:
      Item ID:
      168015972
      MPN:
      HPA-4752-BNC
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI UHF Hand Portable Antenna (470-520 MHz); BNC(M) is ideal for for workshop use with most models and are supplied factory tuned for ease of installation.

      Sold-out

      $30.89

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

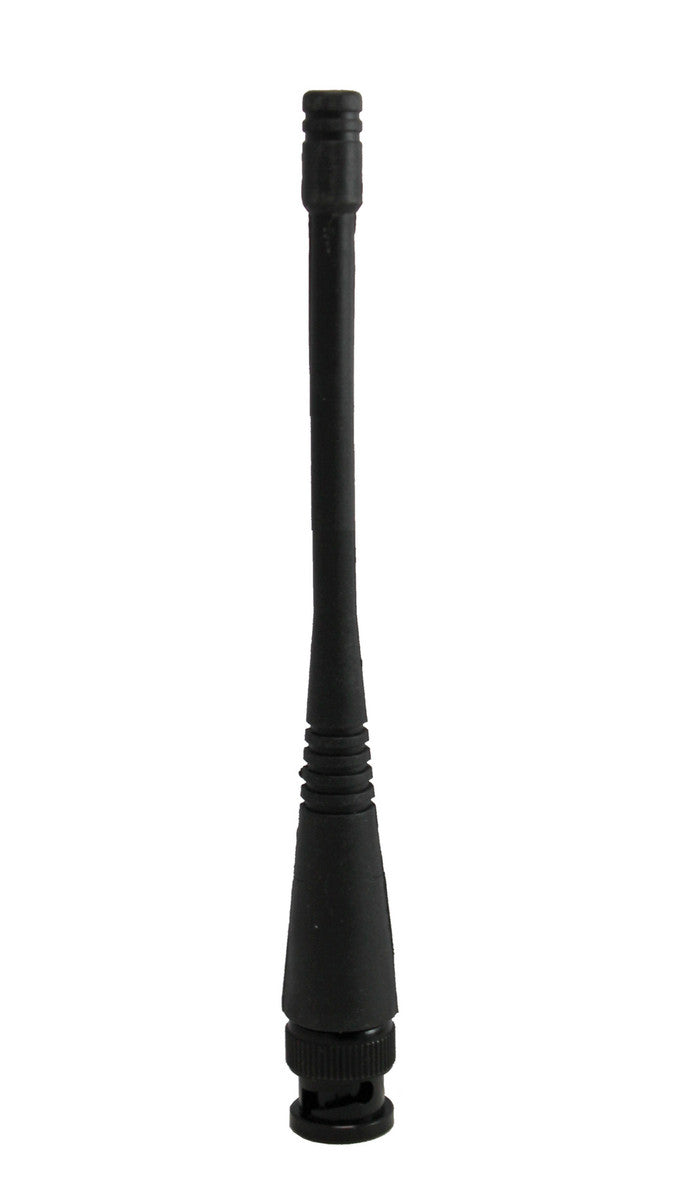

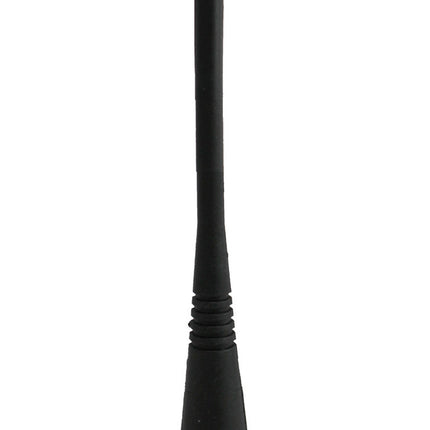

        RFI UHF Hand Portable Antenna (470-520 MHz); BNC(M)

        • Attractive, modern styling
        • Superior performance
        • Engineered to withstand extreme conditions of temperature & humidity
        • Also available with SMA (female), SMA (female special) and MX connectors to suit most radios.

        Documents:

        RFI HPA-4752-BNC Hand Portable Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 20
        Width 3
        Height 3
        Antenna Application Handheld Antenna

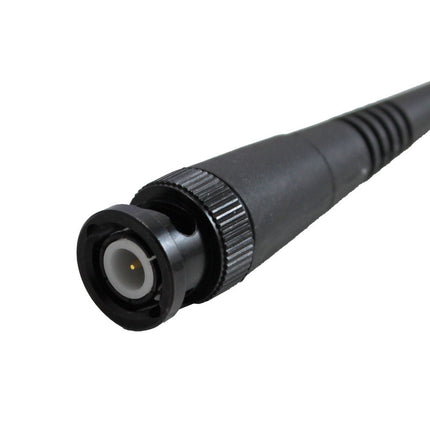

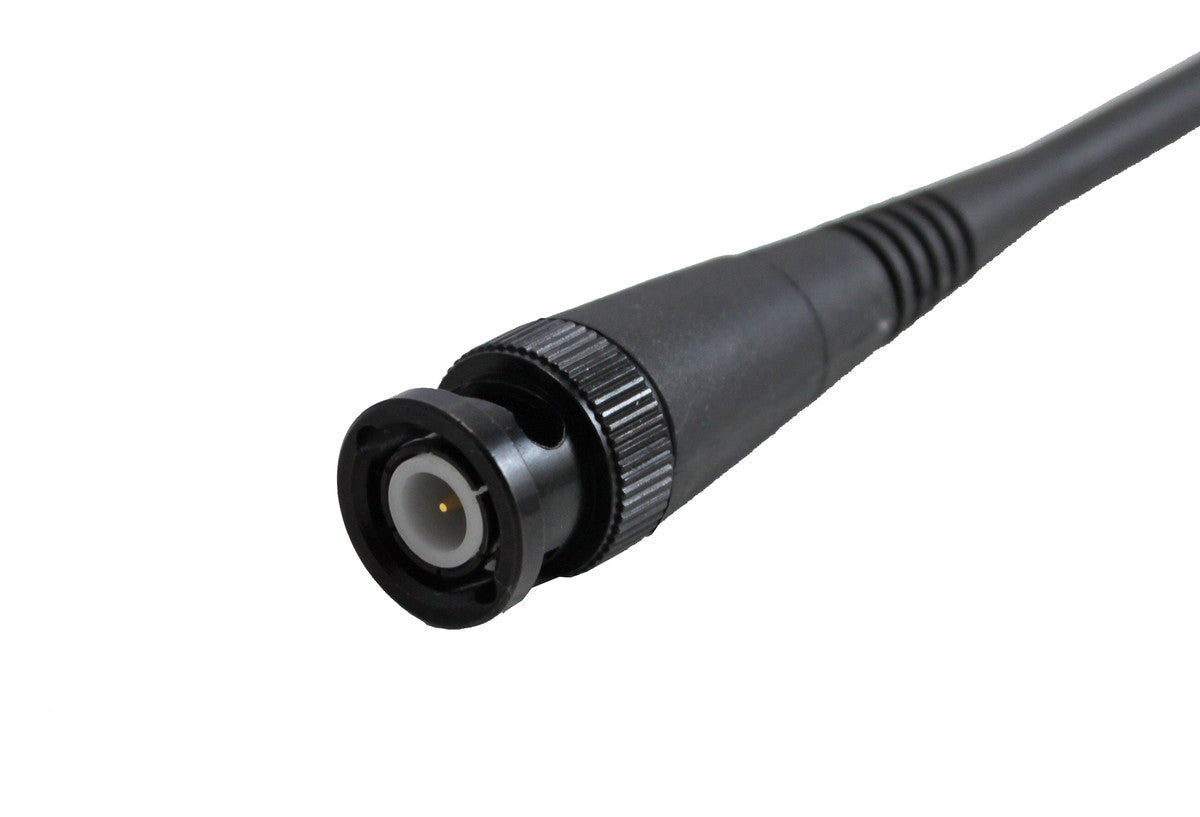

        Antenna Port Connectors BNC (M)
        Antenna Type Ground Independent
        Connector VHF BNC Male
        Coverage Type Omni-directional
        Frequency [MHz] 260-800
        Frequency Band UHF 380-520 MHz
        Ingress Protection (IP) IP67
        Installation Type Device mounting
        Low PIM No
        Max Frequency (MHz) 520
        Max Gain (dBd/dBi) 1.0
        MIMO Support No
        Min Frequency (MHz) 470
        Min Gain (dBd/dBi) 1.0
        Mount Supported Connector mount
        Mount Supported - Detailed Device mount
        No. of Antenna Ports 1
        Technologies Supported UHF
        VSWR <2.0:1

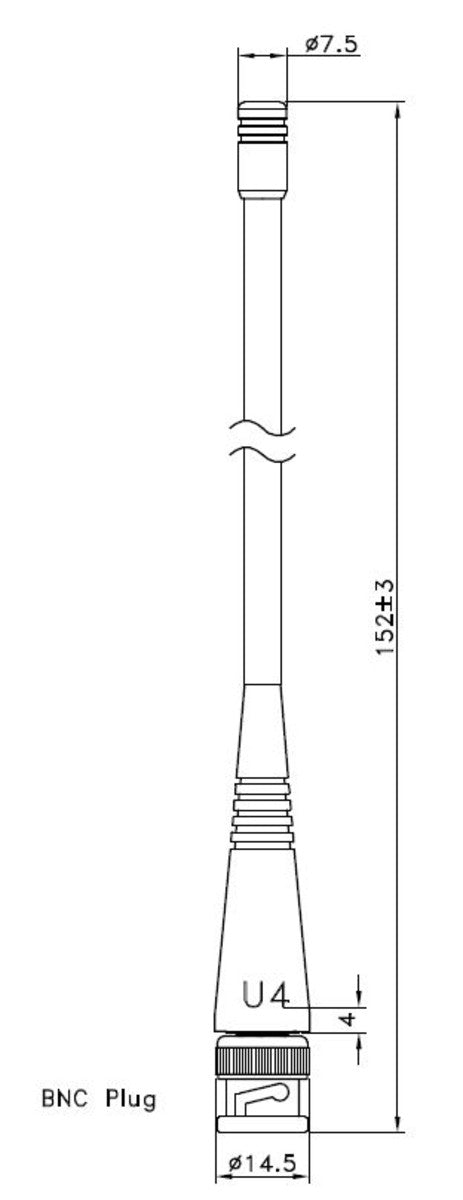

        Whip Length mm 152mm
