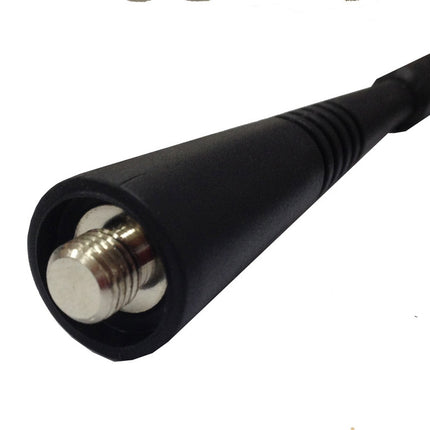

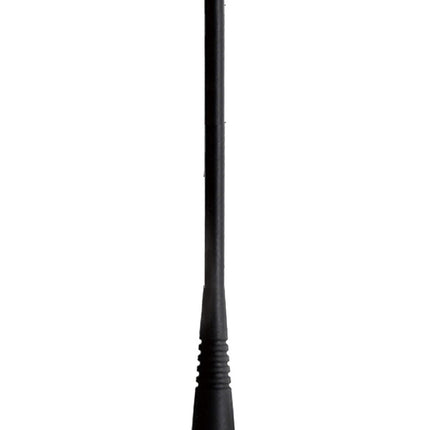

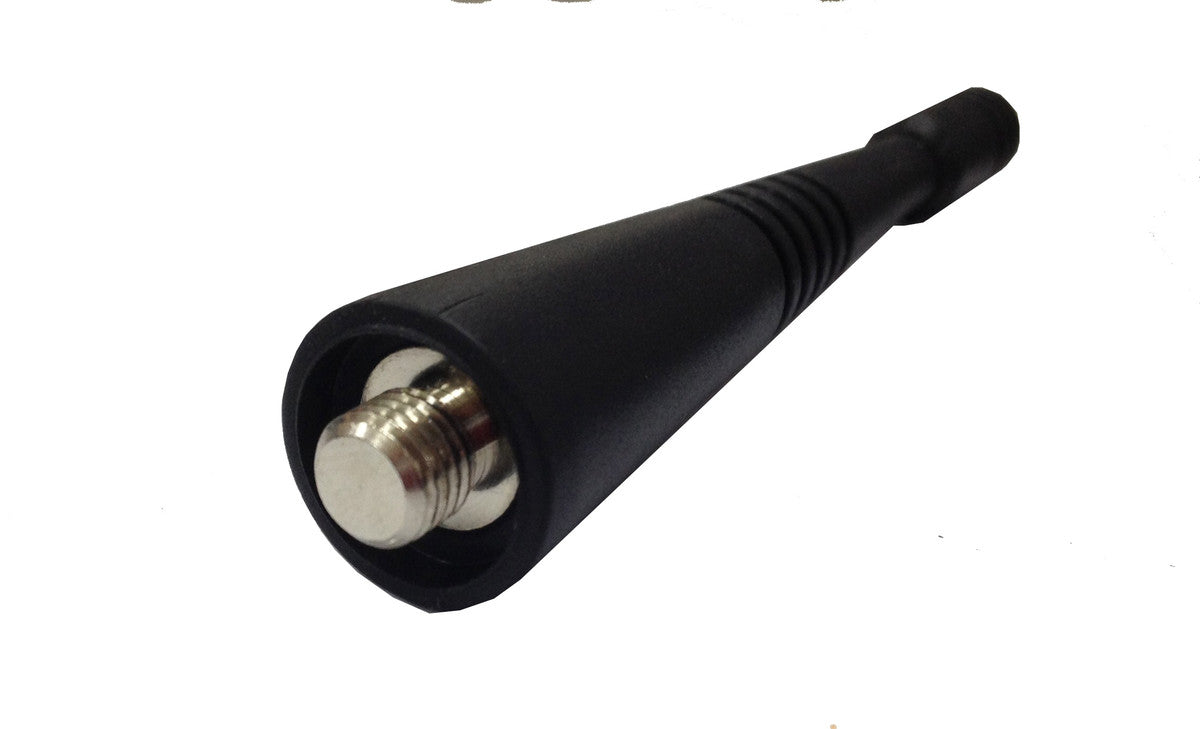

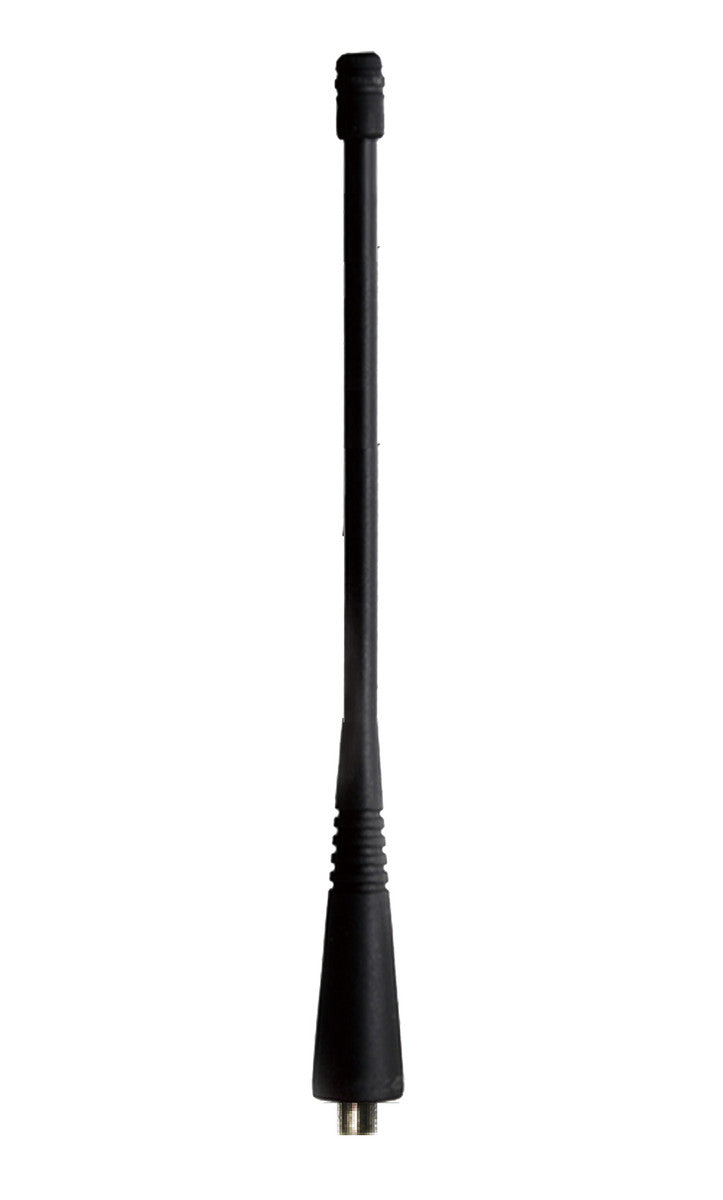

RFI UHF Hand Portable Antenna HPA-4547-MX; 450-470 MHz; MX

RFI UHF Hand Portable Antenna HPA-4547-MX, designed for 450-470 MHz frequency range with a MX connector.  It is factory tuned for ease of installation. RFI offers a range of durable handheld antennas for UHF PMR applications. A wide range of connector options are available to cover a variety of frequency bands.  These antennas are factory tuned and easy to install. This pre-tuned feature making these antennas ideal for workshop use.

Hand Portable Antenna Features:

• Design: The antenna has a stylish and modern design.
• Performance: It provides excellent performance in UHF PMR applications.
• Construction: Its durable design ensures to withstand extreme conditions of temperature and humidity.
• Multiple Connector Options: RFI UHF Handheld Antenna is available with SMA (female), SMA (female special), and BNC (male) connectors to accommodate most radios.

Product Specifications:

• MPN: HPA-4547-MX
• Connector: MX connector - (1/4”-32 x 7/32”)
• VSWR: <2.0:1
• Whip Length mm: 155 mm
• Antenna Type: Omni
• Antenna Application: Handheld Antenna
• Frequency [MHz]: 450-470
• Frequency Band: UHF 380-520 MHz
• Antenna Configuration: SISO
• Gain: Unity
• Impedance: 50 Ohm
• Bandwidth: 5%
• Dimensions: Approximately 155 mm
• Polarisation: Vertical
• Radome: TPE
• IP Rating: IP67
• Operating Temp.: -20 to +65°C

Documents:

RFI HPA-4547-MX Hand Portable Antenna - Datasheet
