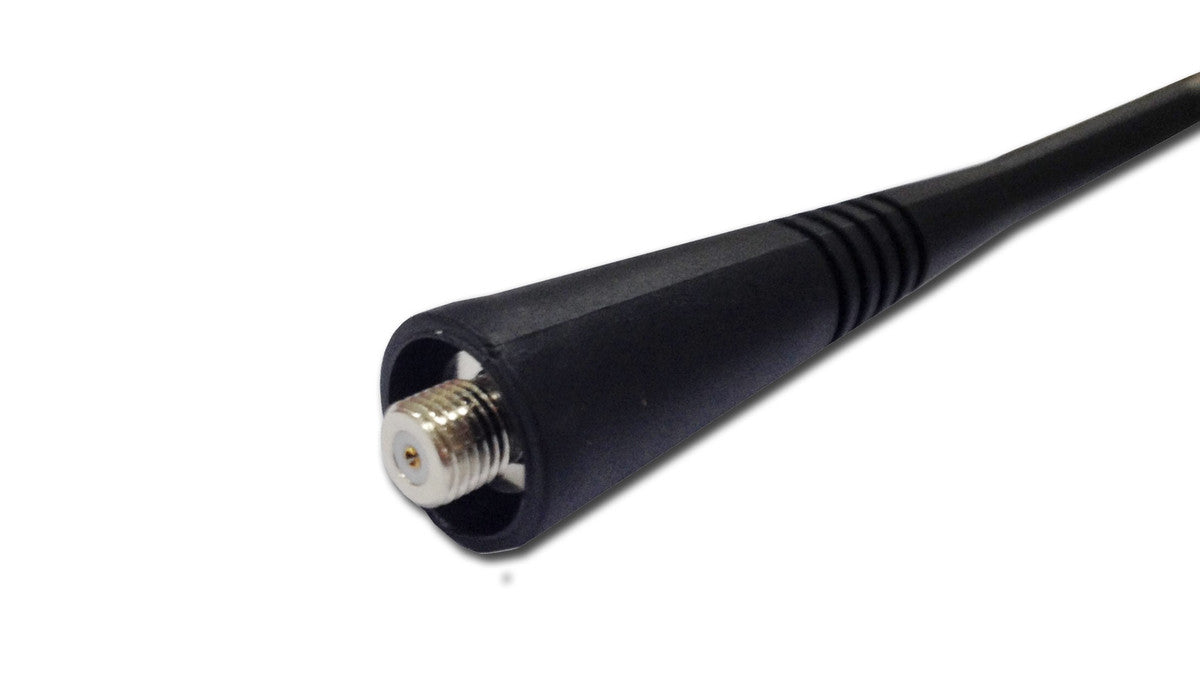

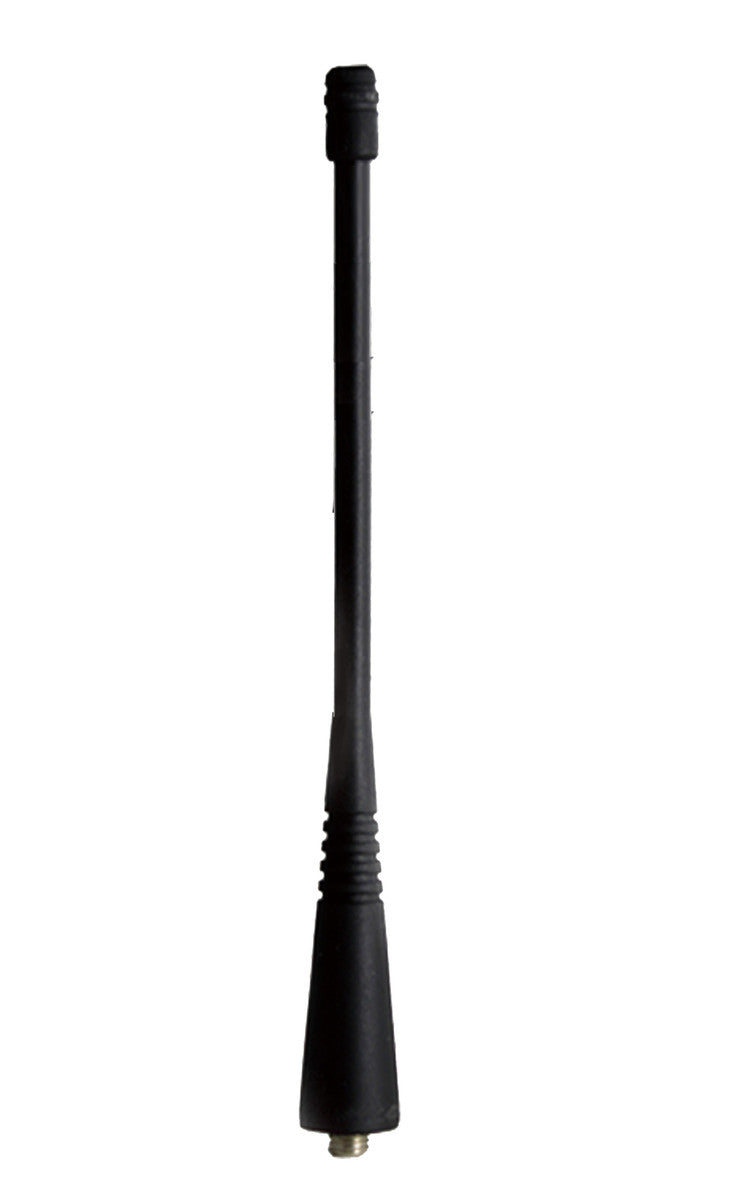

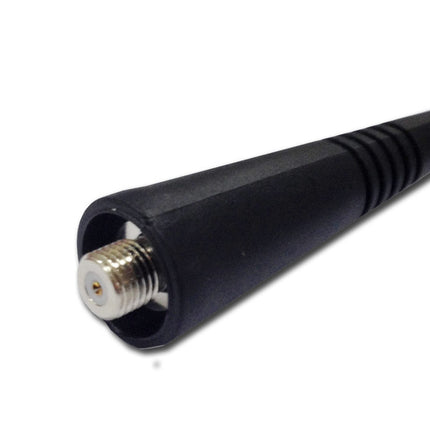

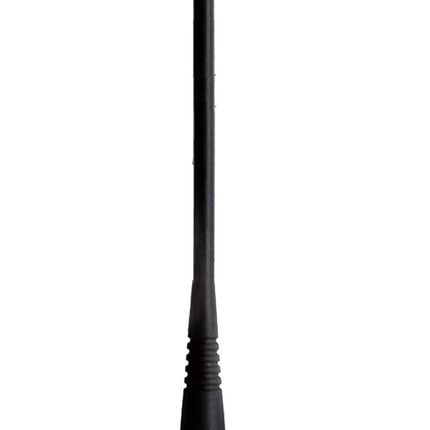

RFI UHF Hand Portable Antenna HPA-4752-SMAF-S, designed for 470-520 MHz frequency range with SMA(F) Special connector. It is factory tuned for ease of installation. RFI offers a range of durable handheld antennas for UHF PMR applications. A wide range of connector options are available to cover a variety of frequency bands. These antennas are factory tuned and easy to install. This pre-tuned feature making these antennas ideal for workshop use.
Hand Portable Antenna Features:
-
Design: The antenna has a stylish and modern design.
-
Performance: It provides excellent performance in UHF PMR applications.
-
Construction: Its durable design ensures to withstand extreme conditions of temperature and humidity.
-
Multiple Connector Options: RFI UHF Handheld Antenna is available with SMA (female), SMA (female special), and BNC (male) connectors to accommodate most radios.
Product Specifications:
-
MPN: HPA-4752-SMAF-S
-
Connector: SMA(F) Special
-
VSWR: 2.0:1
-
Whip Length mm: 145 mm
-
Antenna Type: Omni
-
Antenna Application: Handheld Antenna
-
Frequency [MHz]: 470-520
-
Frequency Band: UHF 380-520 MHz
-
Antenna Configuration: SISO
-
Gain: Unity
-
Impedance: 50 Ohm
-
Bandwidth: 5%
-
Dimensions: Approximately 145 mm
-
Polarisation: Vertical
-
Radome: TPE
-
IP Rating: IP67
-
Operating Temp.: -20 to +65°C
Documents:
RFI HPA-4752-SMAF-S Hand Portable Antenna - Datasheet
