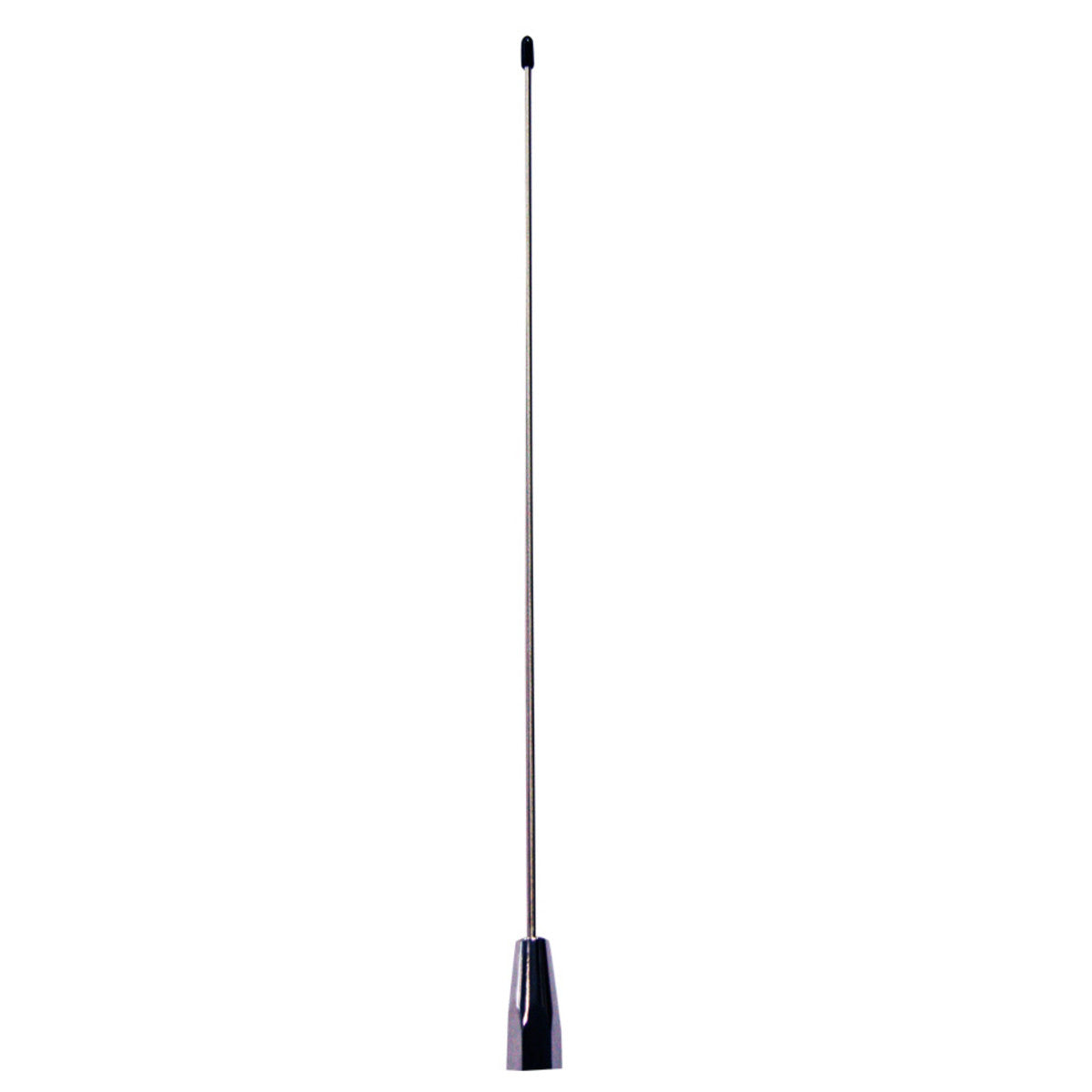

RFI SW7 UHF Stainless Steel Whip, 380-520 MHz, 2 dBi

Name: RFI SW7 UHF Stainless Steel Whip, 380-520 MHz, 2 dBi
Brand: RFI
SKU: 168016120
Price: 25.4 AUD
Availability: InStock

Product form

Brand:

Item ID:

168016120

MPN:

SW7

Export:

Accepted

Shipping:

Ships out in 1-2 business days

Warranty:

Standard Warranty

Product Liability:

Global Insurance Except USA & Canada

RFI UHF Unity Gain Stainless Steel Whip (380-520 MHz), provide excellent omnidirectional performance, are easily tuned and are extremely affordable.

Available

$25.40

Product Description

Parallel Stainless steel whip
Interference thread locking mechanism prevents loosening of whip due to vibration
Trimmed to user frequency

Brand	RFI
Length	33
Width	3
Height	3
Antenna Application	Vehicle Antenna
Antenna Port Connectors	Not included, order separately
Antenna Type	Ground Dependent
Cable And Connector	Not included, order separately
Coverage Type	Omni-directional
Frequency [MHz]	380-520
Frequency Band	UHF 380-520 MHz
Installation Type	Vehicle mounting
Low PIM	No
Max Frequency (MHz)	520
Max Gain (dBd/dBi)	1
MIMO Support	No
Min Frequency (MHz)	380
Min Gain (dBd/dBi)	1
Mount Supported	MB base
Mount Supported - Detailed	Suit MB9, MB10 or MB12 bases (not included)
No. of Antenna Ports	1
Nominal Gain [dBi]	Unity
Power [W]	100
Technologies Supported	UHF
Tuned Bandwidth	Any 40 MHz segment @ <2.0:1 VSWR
Tuning	Field tune to minimum VSWR
VSWR	Any 40 MHz segment @ <2.0:1 VSWR
Whip Length mm	330 (un-tuned)
Whip Material	Parallel stainless steel with chrome plated ferrule
