RFI TLA600-67 UHF Transit Antenna, 430-450 MHz, 2 dBi, N-Female

    RFI TLA600-67 UHF Transit Antenna, 430-450 MHz, 2 dBi, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168016158
      MPN:
      TLA600-67
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI TLA600-67 UHF Antenna (430-450 MHz); UHF(F), low profile transmission line antennas for use in applications where little or no ground plane exists.

      Available

      $279.06

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

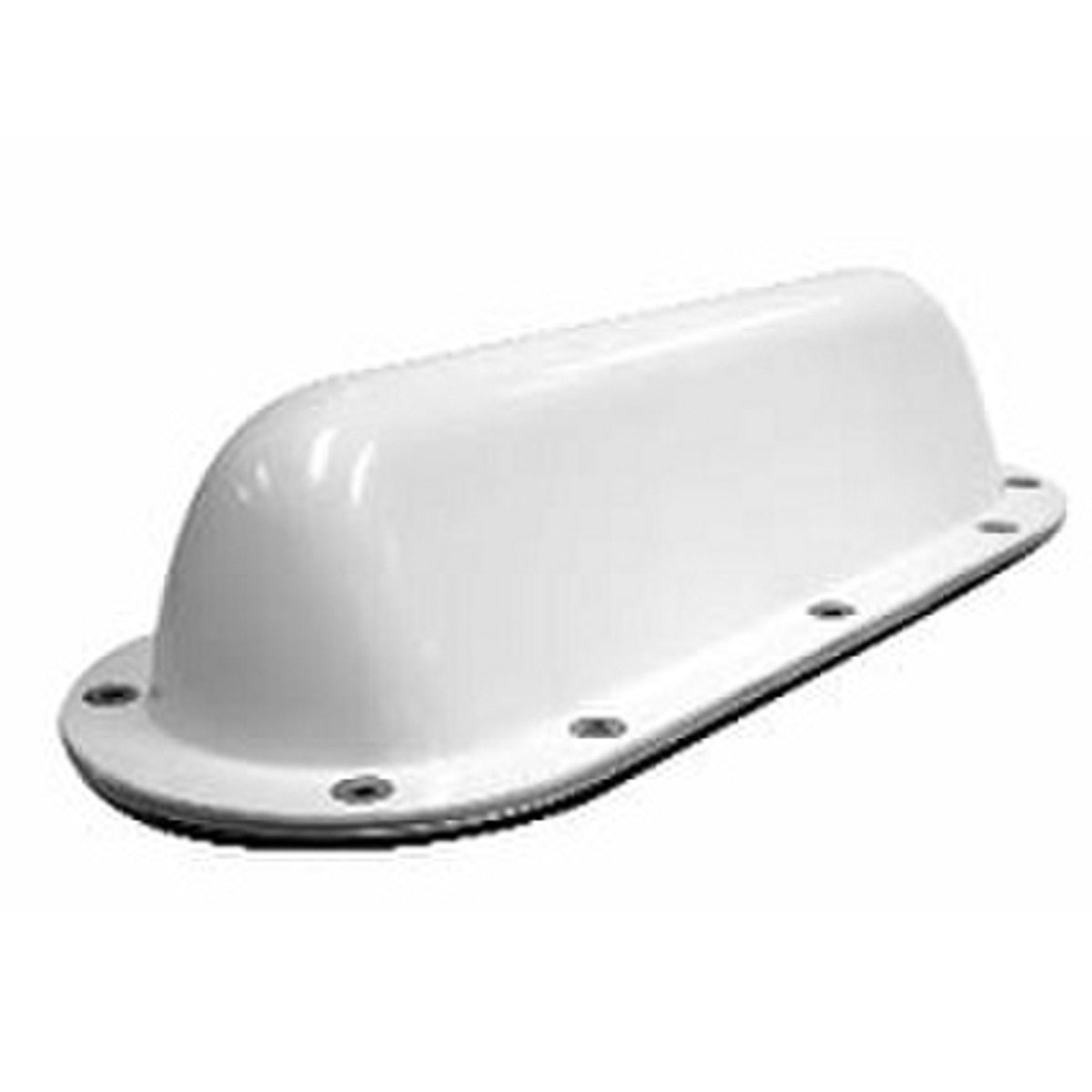

        RFI TLA600-67 UHF Unity Transit Antenna (430-450 MHz); N(F)

        The RFI TLA600 Series antennas (TLA600-67) can be used on buses, trucks, trains or in telemetry applications where the antennas are to be mounted on a fibreglass roof or similar non-conductive surface.

        Features:

        • Available with integrated active GPS antenna for asset tracking/vehicle location applications on request.*
        • Functions with or without a ground plane, allowing one antenna to be used in an entire system, regardless of mounting application.
        • Performance equivalent to a 1/4 whip wave mounted in the centre of a metal roof
        • All antennas supplied pre-tuned to the nominated bands and require no field adjustment
        • Low profile (80 mm) height overall
        • Plastic moulded radome is attractive and durable, resistant to car washes, UV Stable and weatherproofed
        • Neoprene gasket seal provides excellent waterproofing of fitted antenna
        • Available in all major UHF bands

        Documents:

        RFI TLA600 Series Antenna - Datasheet RFI TLA600 Series Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 37.5
        Width 14
        Height 7.8
        Antenna Port Connectors N (F)
        Coverage Type Omni-directional
        Ingress Protection (IP) IP65
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 450
        Max Gain (dBd/dBi) 1
        MIMO Support No
        Min Frequency (MHz) 430
        Min Gain (dBd/dBi) 1
        Mount Supported Screw mount, Gasket
        Mount Supported - Detailed Screw mount, Gasket
        No. of Antenna Ports 1
        Power [W] 50
        Technologies Supported UHF
