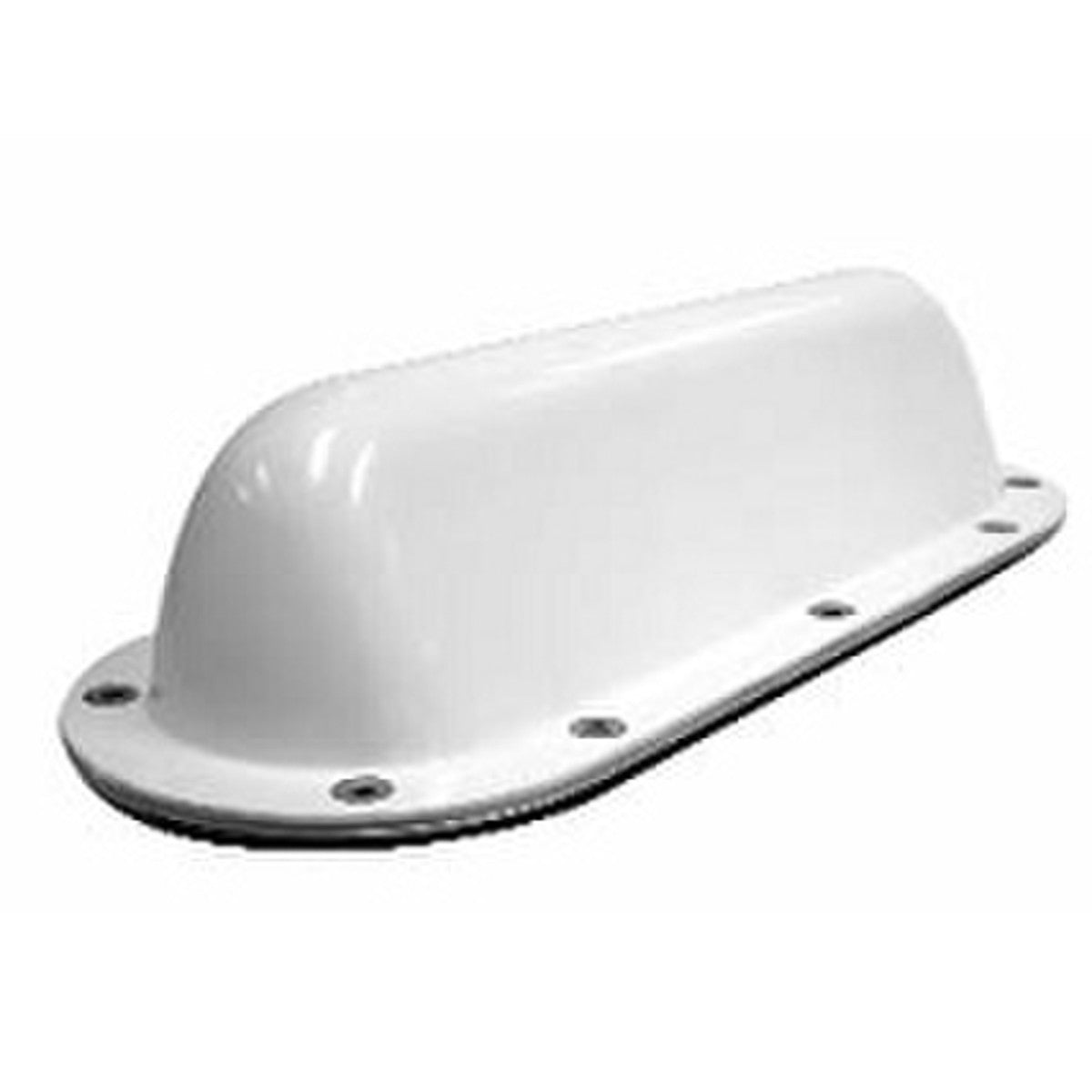

RFI TLA600-70 UHF Transit Antenna, 450-470 MHz, 2 dBi, N-Female

RFI TLA600-70 UHF Transit Antenna, 450-470 MHz, 2 dBi, N-Female

Low stock

Brand:
Item ID:
168016162
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
TLA600-70
Send Request for Quote (RFQ) Discount Offers
RFI TLA600-70 UHF Antenna (450-470 MHz); UHF(F), low profile transmission line antennas for use in applications where little or no ground plane exists.
Regular price $254.00
Regular price $0.00 Sale price $254.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI TLA600-70 UHF Unity Transit Antenna (450-470 MHz); N(F)

These RFI antennas (TLA600-70) can be used on buses, trucks, trains or in telemetry applications where the antennas are to be mounted on a fibreglass roof or similar non-conductive surface.

Features:

  • Available with integrated active GPS antenna for asset tracking/vehicle location applications on request.
  • Functions with or without a ground plane, allowing one antenna to be used in an entire system, regardless of mounting application.
  • Performance equivalent to a 1/4 whip wave mounted in the centre of a metal roof
  • All antennas supplied pre-tuned to the nominated bands and require no field adjustment
  • Low profile (<80 mm) height overall
  • Plastic moulded radome is attractive and durable, resistant to car washes, UV Stable and weatherproofed
  • Neoprene gasket seal provides excellent waterproofing of fitted antenna
  • Available in all major UHF bands

Documents:

RFI TLA600 Antenna - Datasheet RFI TLA600 Antenna - Installation Guide

Product Specifications

MPN TLA600-70
Antenna application Vehicle Antenna
Antenna port connectors N (F)
Antenna type Low Profile Transit
Band 450 - 470MHz
Brands RFI
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 450-470
Height 7.8
Ingress protection ip IP65
Installation type Vehicle mounting
Length 37.5
Low pim No
Max frequency mhz 470
Max gain dbd dbi 1
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 1
Mount supported Screw mount, Gasket
Mount supported detailed Screw mount, Gasket
Mounting Screw and Gasket
No of antenna ports 1
Nominal gain dbi Unity
Packaging Cardboard Box
Power w 50
Technologies supported UHF
Termination N female connector. Alternative BNC connector also available (subject to MOQ) Optional GPS unit terminates with MCX connector
Tuned bandwidth Full. No tuning required
Tuning Supplied pre-tuned
Vswr <2.0:1
Width 14
