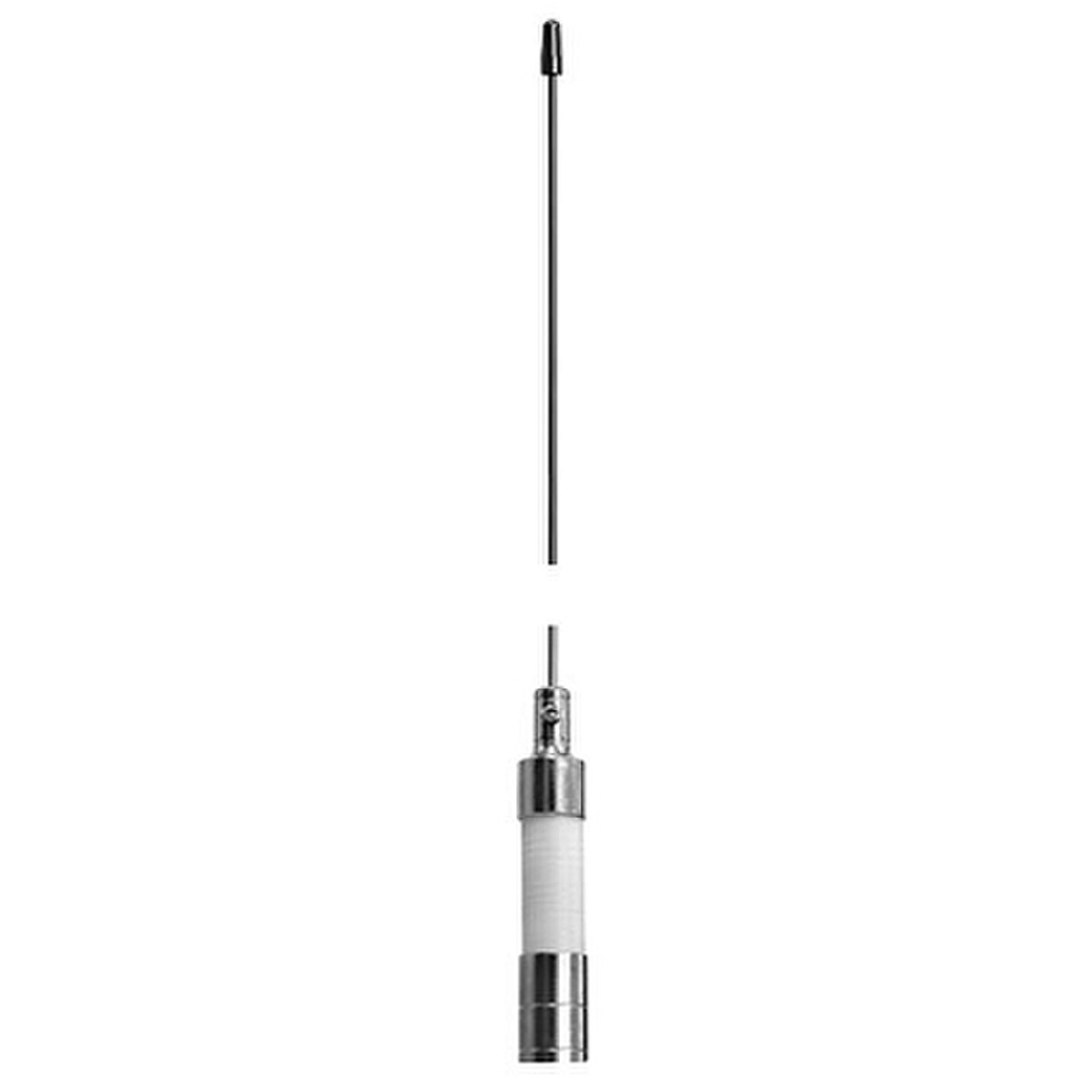

RFI SW12 VHF Roof Mount Antenna, 148-175 MHz, 3 dB, 1340mm

    RFI SW12 VHF Roof Mount Antenna, 148-175 MHz, 3 dB, 1340mm

      Product form
      Brand:
      RFI
      Item ID:
      167016105
      MPN:
      SW12
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI VHF 3 dB Roof Mount Antenna (148-175 MHz); 1340 mm provide superior gain and pattern characteristics when mounted high on a roof clear of obstructions.

      Available

      $95.10

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI VHF 3 dB Roof Mount Antenna (148-175 MHz); 1340 mm

        Both antennas are easily tuned in the field for minimum VSWR. They mount via standard VHF bases and can utilise the full line of accessories and fittings which are offered in this range.
        • 17-7PH tapered stainless steel whip fitted to a durable fibreglass base loading coil
        • Resilient construction retains shape after bending or knocks

        Documents:

        RFI SW12 Whip - Datasheet

        Product Specifications

        Brand RFI
        Length 99
        Width 3
        Height 3
        Antenna Application Vehicle Antenna
        Antenna Port Connectors Not included, order separately
        Antenna Type Ground Dependent
        Band 148 - 175MHz
        Cable And Connector Not included, order separately
        Coverage Type Omni-directional
        Frequency [MHz] 148-175
        Frequency Band VHF High Band 118-180 MHz
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 175
        Max Gain (dBd/dBi) 3
        MIMO Support No
        Min Frequency (MHz) 148
        Min Gain (dBd/dBi) 3
        Mount Supported Wall mount, Roof mount
        Mount Supported - Detailed MB9 base, MB10 base, MB12 base
        Mounting MB10 or MB12 base (not included), MB9
        No. of Antenna Ports 1
        Nominal Gain [dBi] 3
        Power [W] 100
        Technologies Supported VHF
        Tuned Bandwidth 3.0 MHz @ 1.5:1 VSWR
        Tuning Field tune to minimum VSWR
        VSWR 3.0 MHz @ 1.5:1 VSWR
        Whip Length mm 1340
        Whip Material Tapered 17-7 PH stainless steel
