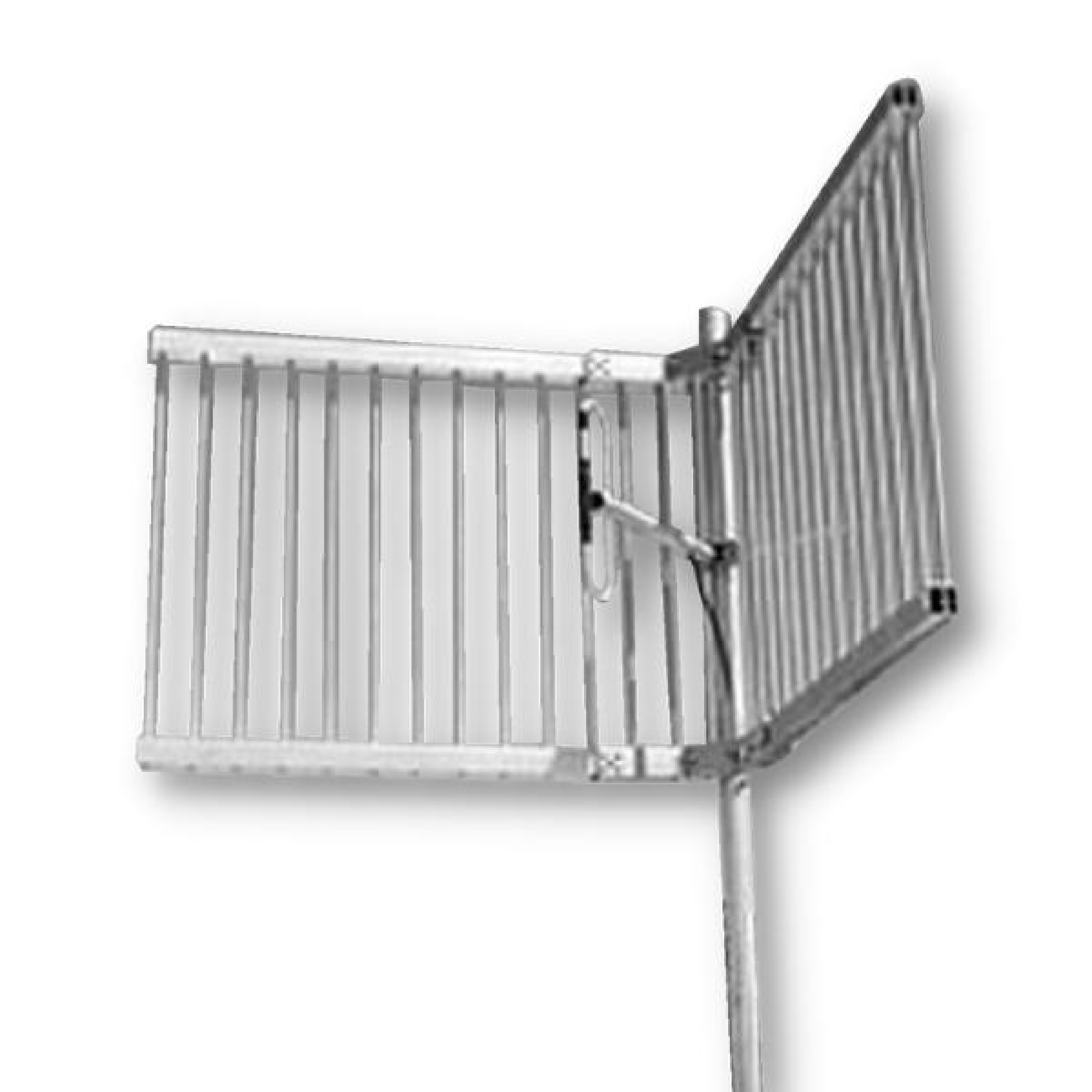

RFI CR2 VHF Corner Reflector Antenna, 136-174 MHz, 7 dBi, N-Female

    RFI CR2 VHF Corner Reflector Antenna, 136-174 MHz, 7 dBi, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015363
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      CR2
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI VHF Corner Reflector Antenna (136-174 MHz); N(F) is a single element 90° corner reflectors, delivering high gain and high front to back ratios

      $1,764.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The CR2 is constructed with an aluminium grid-style back screen with close element spacing to maximise pattern control characteristics. The all welded screen is of alodined aluminium finish for corrosion protection and the single folded dipole element is mounted using all stainless steel fittings.

      Features:

      • Extremely high front to back ratios and minimal side lobe characteristics
      • Shipped unassembled for ease of handling, easily assembled on site
      • Direct DC grounded for lightning protection and reduction of precipitation static noise
      • Covers either 136-162 MHz or 148-174 MHz (request band on order)

      Documents:

      RFI CR2 Corner Reflector Antenna - Datasheet

      Product Specifications

      MPN CR2
      Antenna application Base Station Antenna
      Antenna cable type 9142
      Antenna features Multi Band Capable, PIM Rated, High Power Multi Channel
      Antenna port connectors N (F)
      Antenna type Exposed Dipole Array
      Brands RFI
      Cable length m 0.1
      Construction Welded aluminium grid with alodined finish and stainless steel fittings
      Coverage type Directional
      Frequency band VHF High Band 118-180 MHz
      Frequency mhz 136-174
      Front back ratio db 22
      Height 3
      Horizontal beamwidth 62?
      Installation type External mounting
      Length 99
      Low pim Yes
      Max frequency mhz 174
      Max gain dbd dbi 9
      Mimo support No
      Min frequency mhz 136
      Min gain dbd dbi 9
      Mount supported Pole mount
      Mount supported detailed Pole mount
      Mounting area Clamps to diam. 40-85mm, 1166mm apart (supplied)
      No of antenna ports 1
      Pim 3rd 2x20 w dbc <140
      Polarisation Vertical
      Power w 750
      Technologies supported VHF
      Termination N female with short 9142 cable tail
      Torque nm 602
      Vertical beamwidth 69?
      Vswr <1.5:1
      Width 3
      Wind gust km h 214
      Wind thrust 1087
