RFI CD19-7785-53 VHF Mid-Band Antenna, 77-85 MHz, 1.5 dB, MBC Base, 5m, No Connector

    RFI CD19-7785-53 VHF Mid-Band Antenna, 77-85 MHz, 1.5 dB, MBC Base, 5m, No Connector

      Product form
      Brand:
      RFI
      Item ID:
      167015499
      MPN:
      CD19-7785-53
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI VHF Mid-Band 1.5 dB Broadband Antenna (77-85 MHz); MBC Base 5m No ConnectorBottom of Form provide great bandwidth coverage

      Available

      $225.30

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

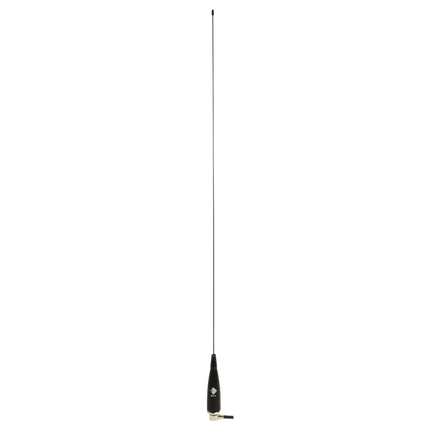

        The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered black powder coated stainless steel highly flexible whip. The CD19 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades.

        Features:

        • Ground plane independent design allows alternative mounting locations
        • Ultra-broadband coverage (70-77 MHz or 77-85 MHz) means no tuning in the field
        • Highly flexible tapered black powder coated stainless steel whip
        • Base is virtually indestructible

        Documents:

        RFI CD19 Antenna - Datasheet RFI CD19 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 99
        Width 2
        Height 2
        Antenna Application Vehicle Antenna
        Antenna Cable Type RG50C/U
        Antenna Port Connectors No connector
        Antenna Type Ground Independent, MBC Base Mount
        Cable Length (m) 5
        Coverage Type Omni-directional
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 85
        Max Gain (dBd/dBi) 1.5
        MIMO Support No
        Min Frequency (MHz) 77
        Min Gain (dBd/dBi) 1.5
        Mount Supported MBC base
        Mount Supported - Detailed MBC base - Right Angle
        No. of Antenna Ports 1
        Nominal Gain [dBq] 1.5
        Polarisation Vertical
        Power [W] 25
        Technologies Supported VHF
        VSWR <1.8:1
