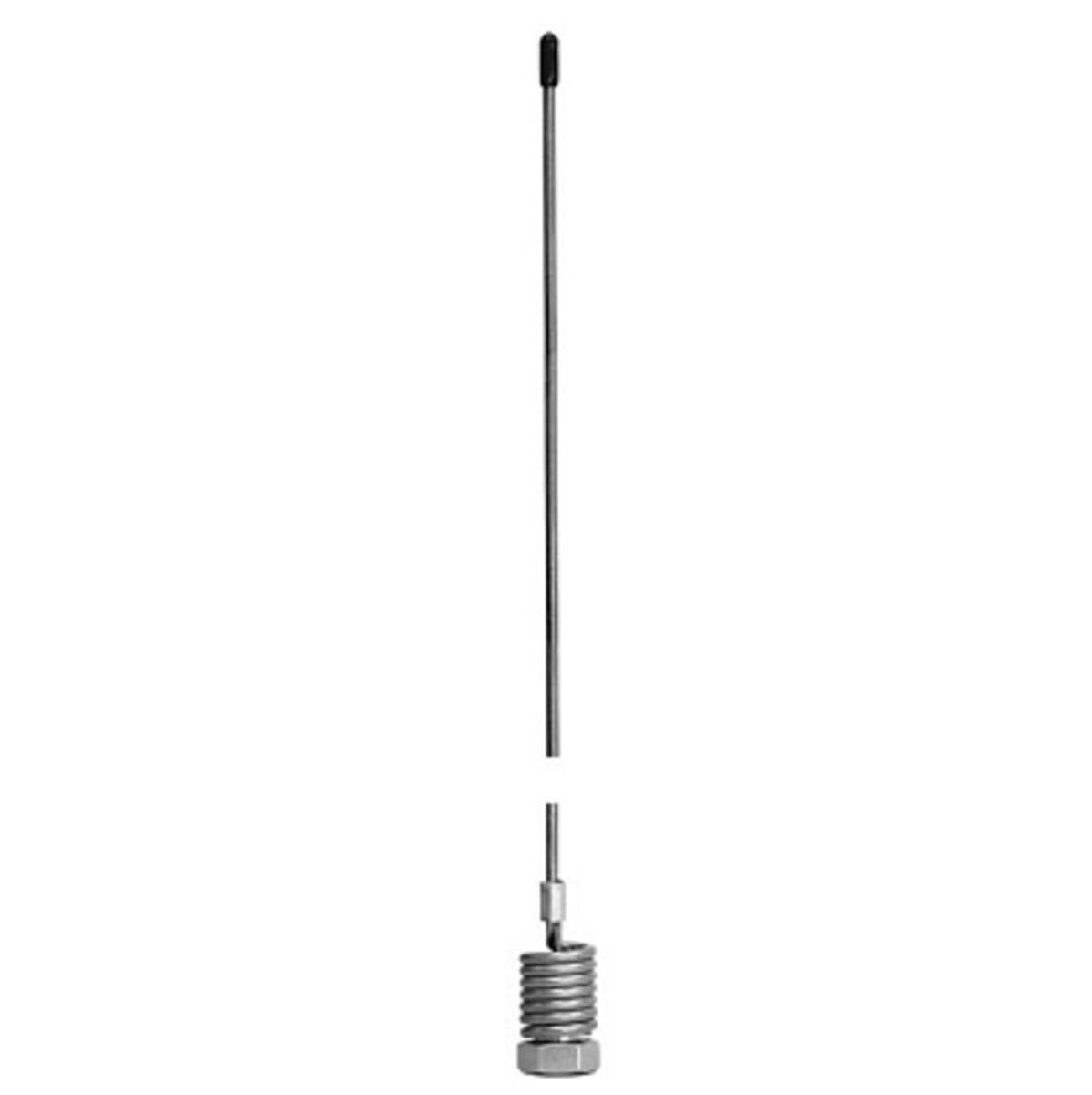

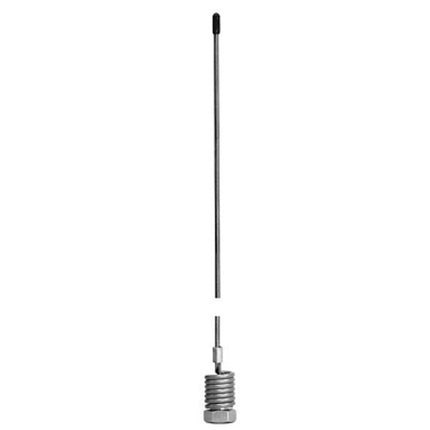

RFI 111ST VHF Stainless Steel Whip, 66-175 MHz, 2 dBi

    RFI 111ST VHF Stainless Steel Whip, 66-175 MHz, 2 dBi

      Product form

      111ST is a unity gain omni-directional antenna manufactured by RFI for mobile applications.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015386
      MPN
      111ST
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $62.61

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        111ST is a unity gain omni-directional antenna manufactured by RFI for heavy industrial mobile applications. This antenna operate on 66-175 MHz frequency range, is very affordable and provides excellent performance.
        • All of these antennas can be mounted to a standard 5/16 - 26 TPI base such as the MB9, MB10 or MB12.
        • They can utilise the full line of accessories and fittings available for such applications.
        • ¼ wave stainless whip with integral spring
        • Ideal for heavy industrial applications

        Documents:

        RFI 111ST VHF Stainless Steel Whip - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 135
        Width (cm) 14
        Height (cm) 12
        Antenna Application Vehicle Antenna
        Antenna Port Connectors Not included, order separately
        Antenna Type Ground Dependent
        Band 66 - 175MHz
        Cable And Connector Not included, order separately
        Coverage Type Omni-directional
        Frequency [MHz] 66-175
        Frequency Band VHF High Band 118-180 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 175
        Max Gain (dBd/dBi) 1
        MIMO Support No
        Min Frequency (MHz) 66
        Min Gain (dBd/dBi) 1
        Mount Supported MB base
        Mount Supported - Detailed Suit MB9, MB10 or MB12 bases (not included)
        No. of Antenna Ports 1
        Nominal Gain [dBi] Unity
        Polarisation Vertical
        Power [W] 100
        Technologies Supported VHF
        Tuning Field tune to minimum VSWR
        VSWR 3% @ <1.5:1
        Whip Length mm 1270
        Whip Material Parallel stainless steel with integral spring
