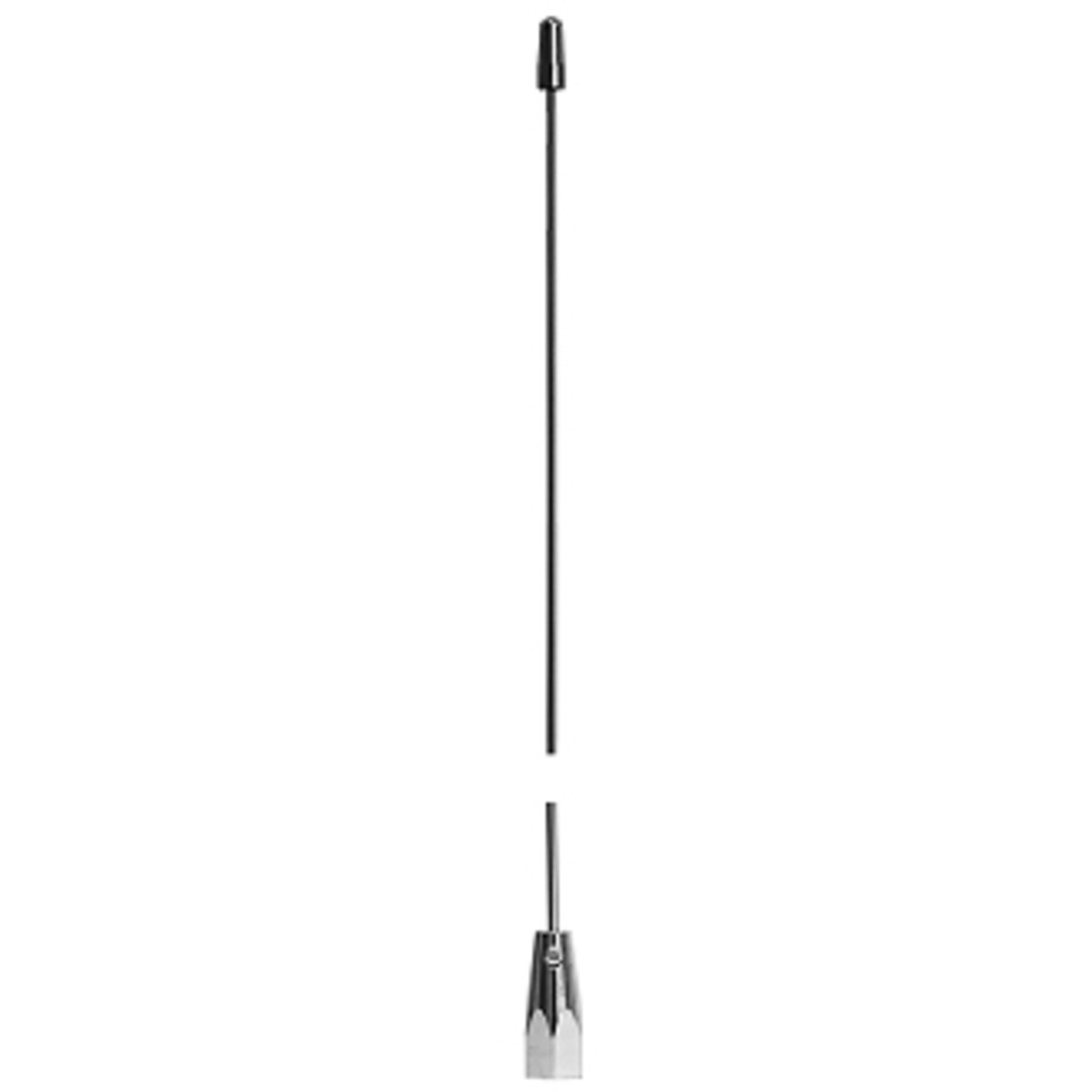

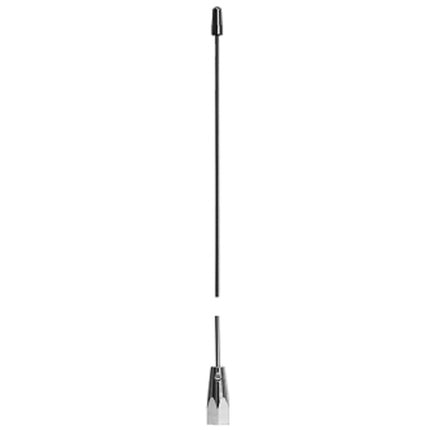

RFI TSW1 VHF Stainless Steel Whip, 70-175 MHz, 2 dBi

    RFI TSW1 VHF Stainless Steel Whip, 70-175 MHz, 2 dBi

      Product form
      Brand:
      RFI
      Item ID:
      167016172
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      TSW1
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      TSW1 is VHF unity gain stainless steel whip from RFI, field tuneable from 70 to 175 MHz. Can be mounted to a standard 5/16 - 26 TPI base such as the MB9, MB10 or MB12.

      Available

      $38.40

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        TSW1 is VHF unity gain stainless steel whip from RFI, field tuneable from 70 to 175 MHz. These antennas can be mounted to a standard 5/16 - 26 TPI base such as the MB9, MB10 or MB12. They can utilise the full line of accessories and fittings available for such applications.
        • 17-7PH tapered stainless steel whip
        • Resilient construction retains shape after bending or knocks

        Documents:

        RFI TSW1 Whip - Datasheet RFI TSW1 Whip - Cutting Chart

        Product Specifications

        MPN TSW1
        Antenna application Vehicle Antenna
        Antenna port connectors Not included, order separately
        Antenna type Ground Dependent
        Band 66-175MHz
        Brands RFI
        Cable and connector Not included, order separately
        Coverage type Omni-directional
        Frequency band VHF Mid Band 66-88 MHz
        Frequency mhz 66-175
        Height 3
        Installation type Vehicle mounting
        Length 99
        Low pim No
        Max frequency mhz 175
        Max gain dbd dbi 1
        Mimo support No
        Min frequency mhz 66
        Min gain dbd dbi 1
        Mount supported MB base
        Mount supported detailed Suit MB9, MB10 or MB12 bases (not included)
        Mounting MB10 or MB12 base (not included), MB9
        No of antenna ports 1
        Nominal gain dbi Unity
        Power w 100
        Technologies supported VHF
        Tuned bandwidth 6% @ <1.5:1 VSWR (Typically at 150MHz)
        Tuning Field tune to minimum VSWR
        Vswr 6% @ <1.5:1 VSWR (Typically at 150MHz)
        Whip length mm 1277
        Whip material Tapered 17-7PH stainless steel
        Width 3
