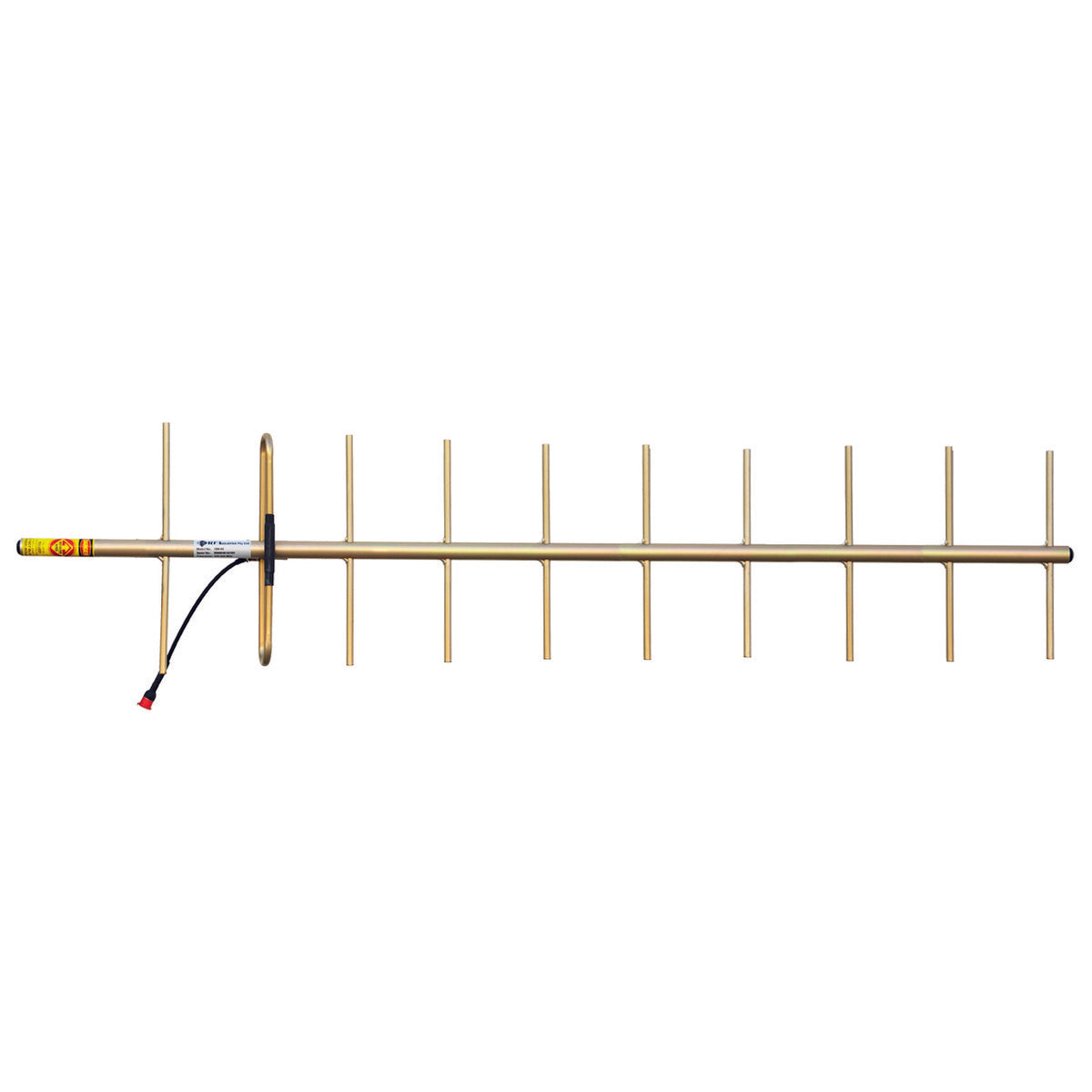

The RFI YB10-65 is a 10-element Yagi antenna designed for high-gain directional communication across the 400-420 MHz frequency range. Built with a full folded dipole and all-welded construction, this antenna delivers reliable performance, low intermodulation, and long-term durability for RF control and point-to-point applications.

Product Features:

• The RFI YB10-65 antenna features a full folded dipole feed element, offering maximum bandwidth and consistent performance.
• This model operates across the 400-420 MHz frequency range, making it ideal for specialized RF communication systems.
• It delivers 13 dBi gain with a narrow beamwidth and high front-to-back ratio to reduce interference.
• The passive elements are through-mounted and welded on both sides to minimize corrosion and passive intermodulation (PIM).
• The all-welded construction ensures maximum durability and long-term reliability in demanding environments.
• The alodined finish provides a conductive surface for effective grounding and corrosion resistance.
• It includes DC grounding on all elements for superior lightning protection and static noise dissipation.
• The antenna can be configured in stacks or bays using PH and PHE series phasing harnesses for higher gain applications.

Application Areas:

• The antenna is ideal for RF control and telemetry systems operating in the 400-420 MHz band.
• This model is suitable for short or long-haul point-to-point communication links.
• It is a dependable choice for installations requiring high directionality and low interference.
• The design supports use in both horizontal and vertical polarization systems.

In the Box:

• 1x RFI YB10-65 10 Element Yagi Antenna

Documents:

RFI YB10-65 Yagi Antenna - Datasheet RFI Phasing of Yagi Antenna - Technical Guide
