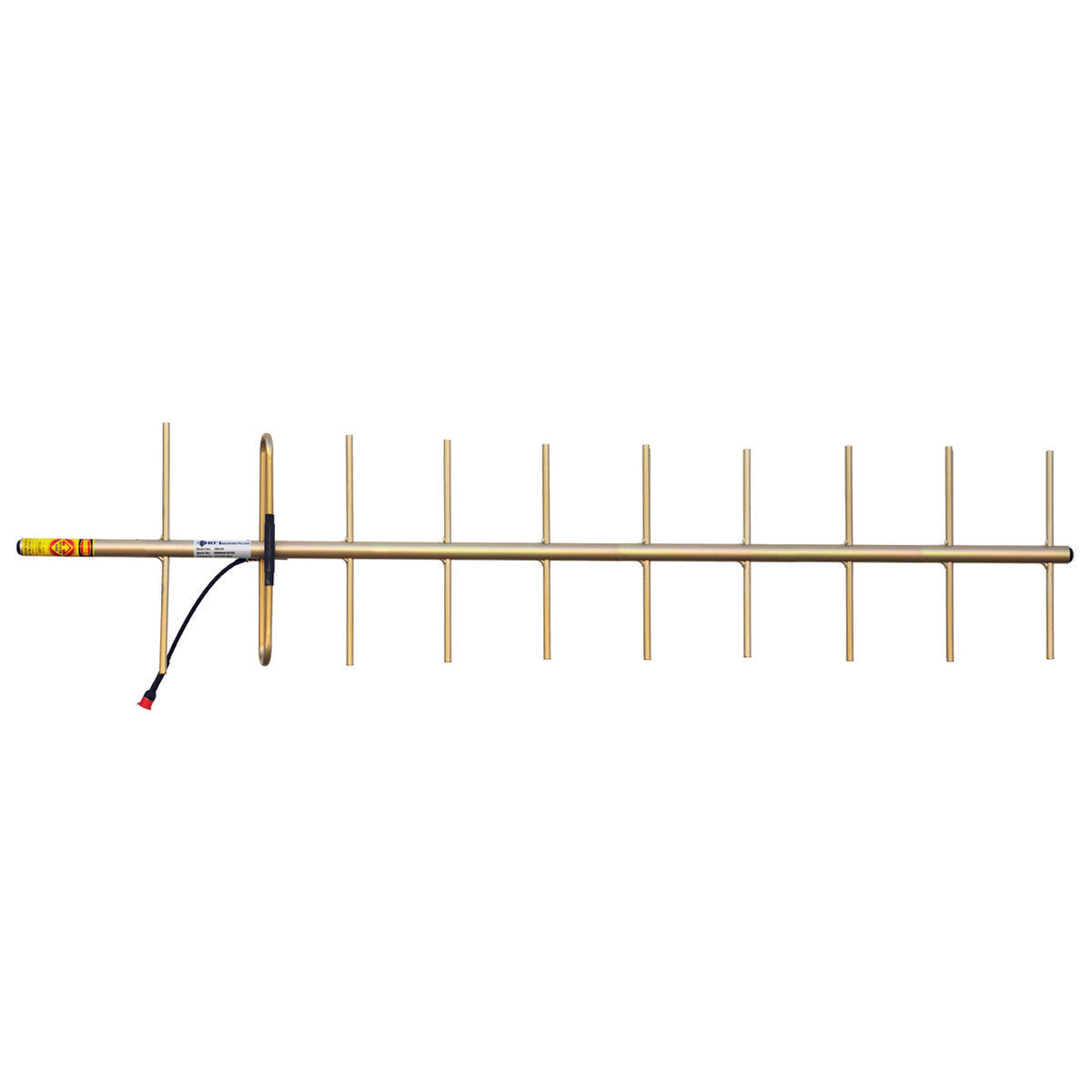

The RFI YB10-70 is a 10-element Yagi antenna engineered for directional communication across the 450-470 MHz frequency range. With a full folded dipole and rugged all-welded construction, this antenna offers high gain, low intermodulation, and reliable performance for point-to-point RF applications.

Product Features:

• The RFI YB10-70 antenna includes a full folded dipole feed element, ensuring wide bandwidth and stable performance.
• This model operates across the 450-470 MHz frequency range, supporting a variety of RF communication needs.
• It delivers 13 dBi gain with a narrow beamwidth and high front-to-back ratio to minimize interference.
• The passive elements are welded on both sides to a circular boom, reducing the risk of corrosion and passive intermodulation (PIM).
• The rugged all-welded construction ensures consistent performance in harsh environments.
• The alodined finish enhances conductivity for effective grounding and corrosion protection.
• It features DC grounding on all elements for lightning protection and static noise dissipation.
• The antenna can be configured in stacks or bays using PH and PHE series phasing harnesses for increased gain.

Application Areas:

• The antenna is ideal for RF control and telemetry systems operating in the 450-470 MHz band.
• This model is suitable for directional communication in both short and long-haul point-to-point links.
• It is a reliable solution for installations requiring high gain and minimal interference.
• The design supports both horizontal and vertical polarization configurations.

In the Box:

• 1x RFI YB10-70 10 Element Yagi Antenna
