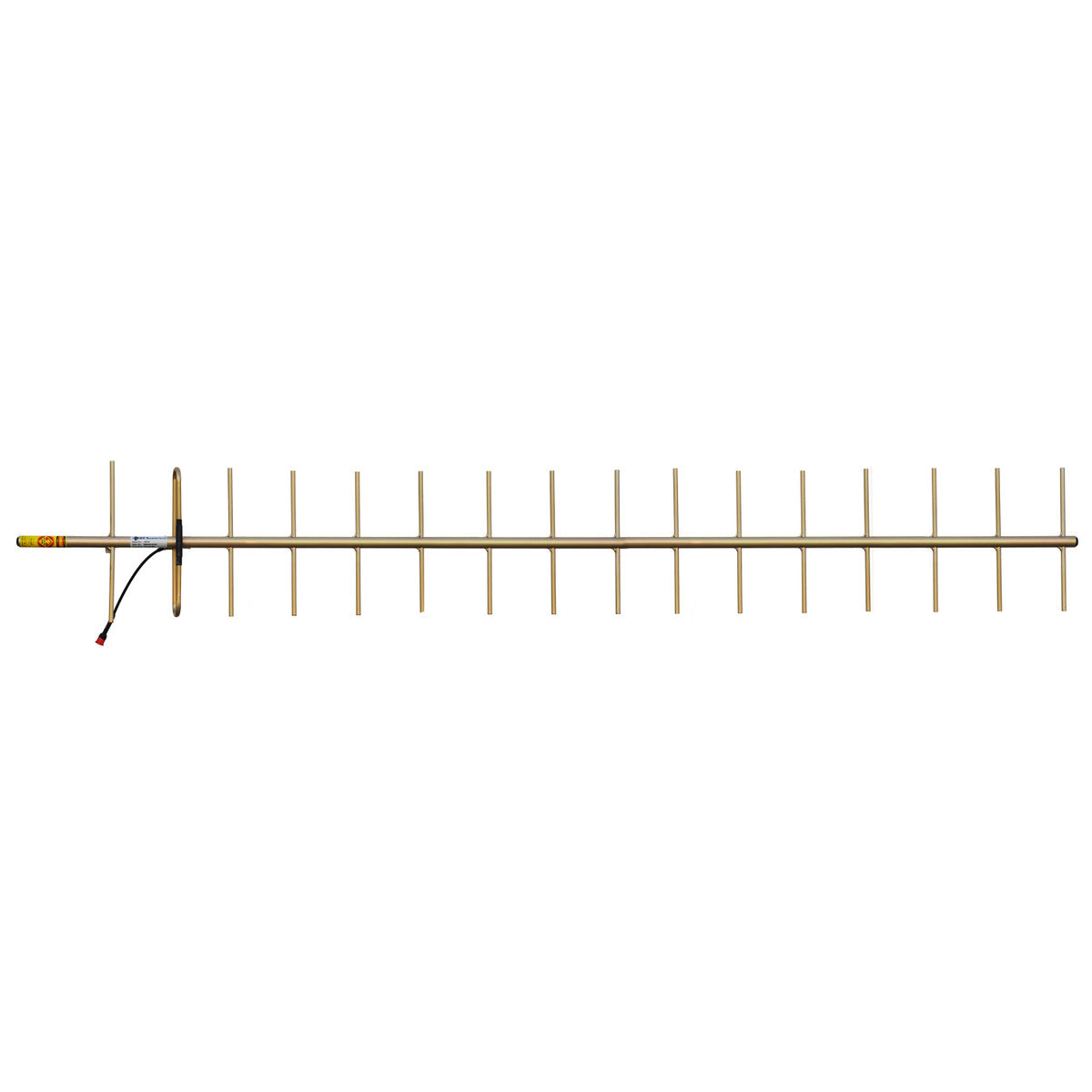

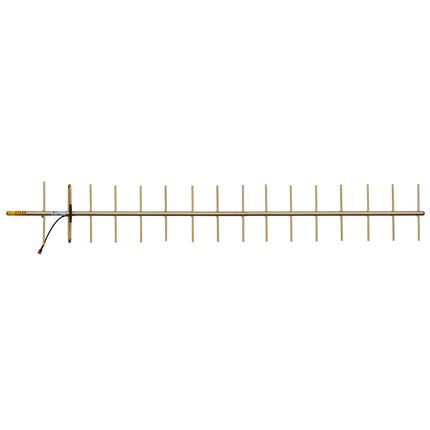

The RFI YB16-63 is a 16-element high-gain Yagi antenna designed for directional communication across the 480–500 MHz frequency range. With a gain of 14 dBi, it is ideal for point-to-point RF control and long-haul communication links. The antenna features a rugged all-welded construction and a narrow beamwidth, ensuring reliable performance and reduced interference.

Features:

• The RFI YB16-63 antenna delivers 14 dBi gain, making it suitable for high-performance directional communication.
• This antenna features narrow beamwidths and high front-to-back ratios to minimize interference from other systems.
• The feed element is a full folded dipole, welded to the boom for maximum bandwidth and long-term reliability.
• The passive elements are through-mounted and welded on both sides of the circular boom to reduce corrosion and intermodulation.
• The all-welded construction ensures consistent and reliable performance in demanding environments.
• The alodine finish provides a conductive surface for effective grounding.
• The antenna supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
• It includes DC grounding on all elements for lightning protection and static noise dissipation.
• The antenna is ideal for RF control, short or long-haul links, and other applications requiring high directionality.

Application Areas:

• The antenna is ideal for point-to-point RF communication in control and telemetry systems.
• This antenna is suitable for long-haul or short-haul directional links.
• It is designed for use in environments where interference reduction and signal focus are critical.

In the Box:

• 1x RFI YB16-63 16 Element Yagi Antenna

Accessories (sold separately):

Documents:

RFI YB16 Series Yagi Antennas - Datasheet
