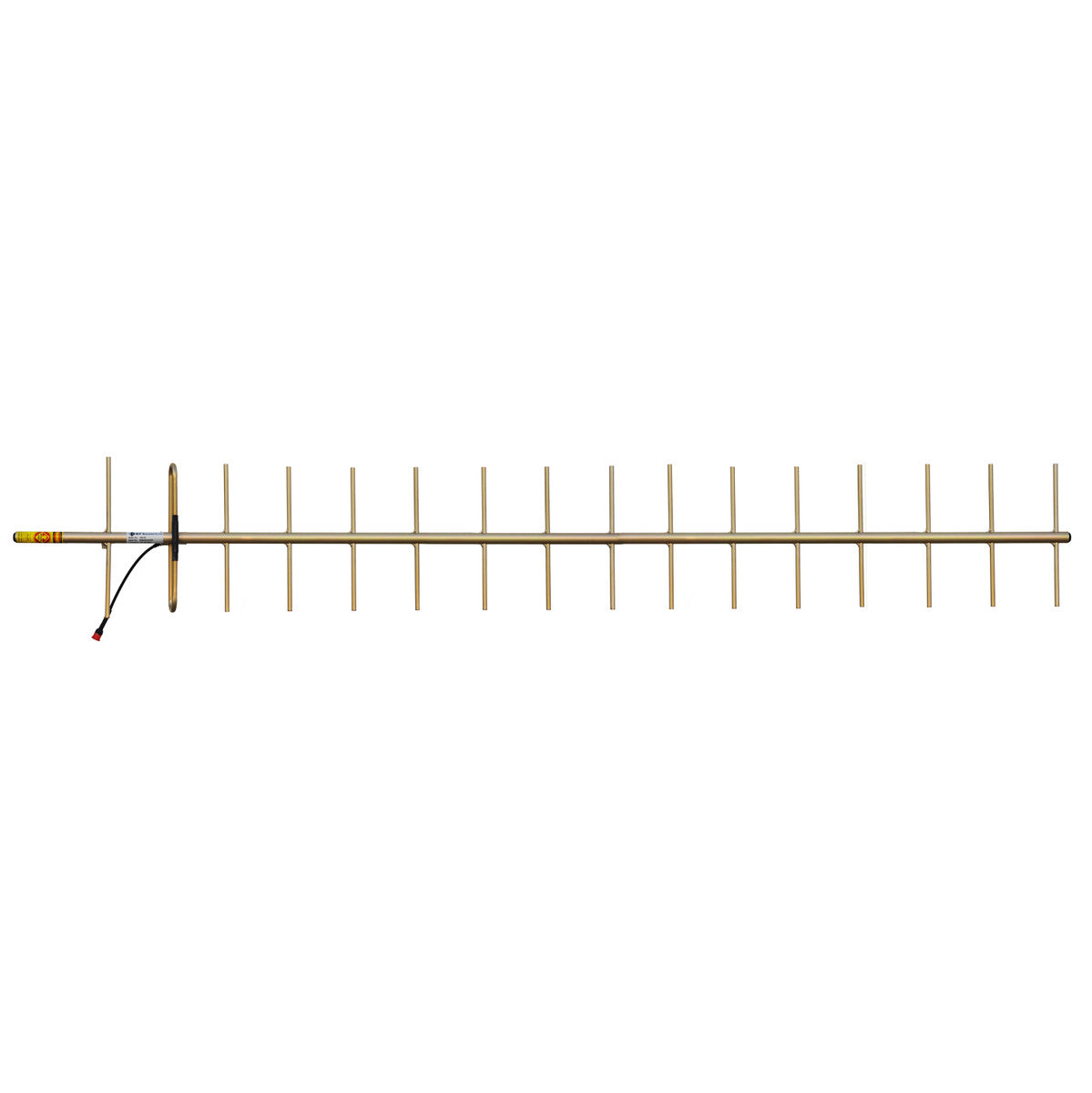

RFI YB16-70 16 Element Yagi Antenna, 450-470 MHz, 14 dBi

RFI YB16-70 16 Element Yagi Antenna, 450-470 MHz, 14 dBi

Low stock

Brand:
Item ID:
167016191
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YB16-70
Send Request for Quote (RFQ) Discount Offers
The RFI YB16-70 is a 16-element Yagi antenna designed for directional communication in the 450–470 MHz frequency range with a 14 dBi gain
Regular price $278.00
Regular price $0.00 Sale price $278.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YB16-70 is a 16-element Yagi antenna designed for directional communication in the 450–470 MHz frequency range. With a 14 dBi gain and robust construction, it is ideal for RF systems requiring high directionality and reliability.

Features:

  • The RFI YB16-70 antenna delivers 14 dBi gain for enhanced signal strength and range.
  • This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
  • The feed element is a full folded dipole, welded to the boom for maximum reliability.
  • The passive elements are through-mounted and welded on both sides to reduce corrosion and intermodulation.
  • The all-welded construction ensures consistent performance in harsh conditions.
  • The alodine finish provides a conductive surface for grounding.
  • It supports stacking or baying using PH and PHE series phasing harnesses.
  • The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.
  • It is suitable for RF control and long-haul communication links.

Application Areas:

  • The antenna is ideal for directional RF communication in control and telemetry systems.
  • This antenna is suitable for both short and long-haul point-to-point links.
  • It is designed for use in environments requiring high gain and interference mitigation.

In the Box:

  • 1x RFI YB16-70 16 Element Yagi Antenna

Accessories (sold separately):

Documents:

RFI YB16 Series Yagi Antennas - Datasheet

Product Specifications

MPN YB16-70
Antenna application Base Station Antenna
Antenna cable type 9008
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with alodined finish
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 450-470
Front back ratio db 18 (Typical)
Height 3
Horizontal beamwidth 36?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 470
Max gain dbd dbi 14
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 14
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm x 25mm diam.
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with 9008 cable tail
Torque nm 130
Tuned bandwidth Full band
Vertical beamwidth 34?
Vswr <1.5:1
Width 3
Wind gust km h 165
Wind thrust 124
