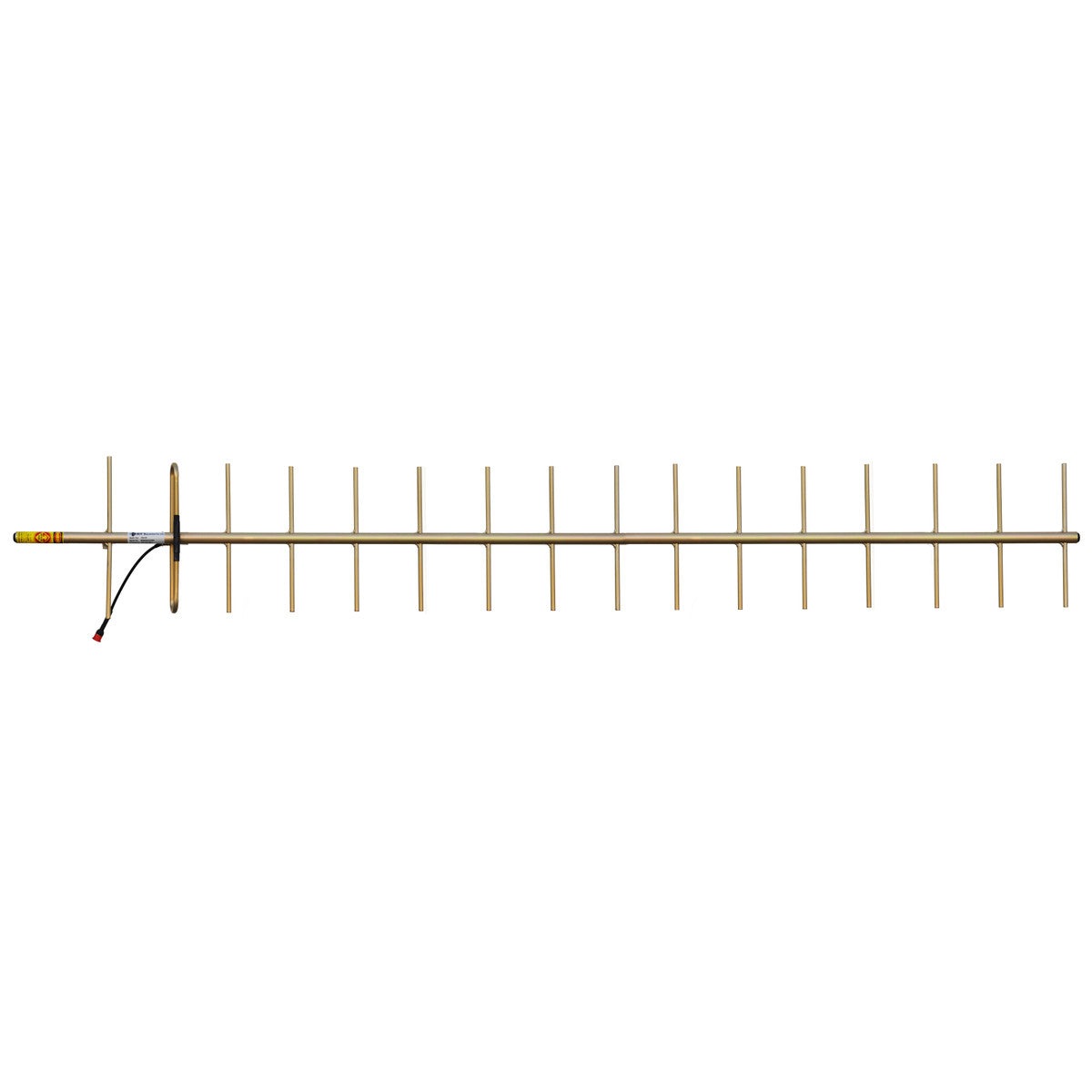

The RFI YB16-72 is a 16-element Yagi antenna designed for directional communication in the 500–520 MHz frequency range. With a gain of 14 dBi, it is ideal for RF systems requiring high performance and interference control.

Features:

• The RFI YB16-72 antenna delivers 14 dBi gain for strong directional signal coverage.
• This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
• The feed element is a full folded dipole, welded to the boom for maximum reliability.
• The passive elements are through-mounted and welded on both sides to reduce corrosion and intermodulation.
• The all-welded construction ensures consistent performance in demanding environments.
• The alodine finish provides a conductive surface for grounding.
• It supports stacking or baying using PH and PHE series phasing harnesses.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.
• It is suitable for RF control and long-haul communication links.

Application Areas:

• The antenna is ideal for directional RF communication in control and telemetry systems.
• This antenna is suitable for both short and long-haul point-to-point links.
• It is designed for use in environments requiring high gain and interference mitigation.

In the Box:

• 1x RFI YB16-72 16 Element Yagi Antenna

Accessories (sold separately):

Documents:

RFI YB16 Series Yagi Antennas - Datasheet
