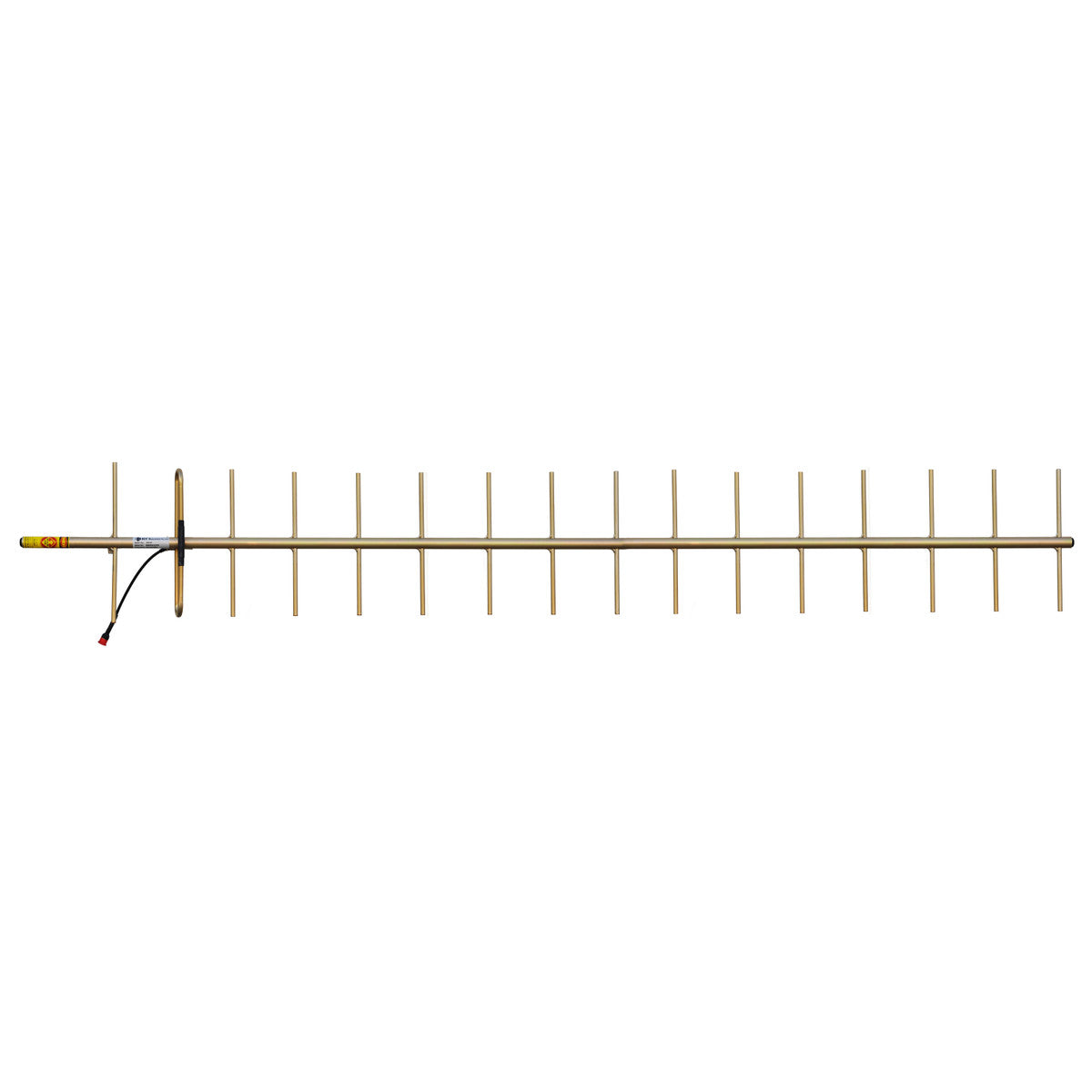

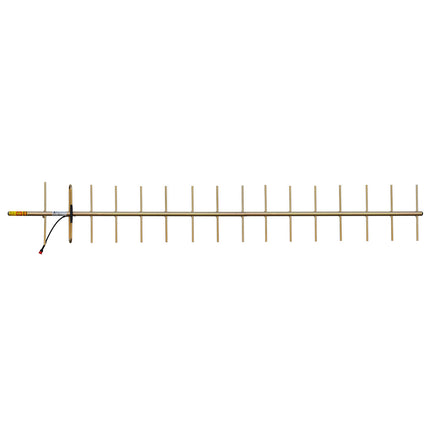

RFI YB16-99 16 Element Yagi Antenna, 400-600 MHz, 14 dBi - Custom Tuned

RFI YB16-99 16 Element Yagi Antenna, 400-600 MHz, 14 dBi - Custom Tuned

On backorder

Brand:
Item ID:
167016197
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YB16-99
Send Request for Quote (RFQ) Discount Offers
The RFI YB16-99 is a custom-tuned 16-element Yagi antenna designed for broadband directional communication across the 400–600 MHz and 14 dBi
Regular price $309.50
Regular price $0.00 Sale price $309.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YB16-99 is a custom-tuned 16-element Yagi antenna designed for broadband directional communication across the 400–600 MHz frequency range. With a gain of 14 dBi and a rugged welded design, it is ideal for RF systems requiring high performance and flexibility.

Features:

  • The RFI YB16-99 antenna is custom tuned for operation across the 400–600 MHz frequency range.
  • This antenna provides 14 dBi gain for strong directional signal coverage.
  • The feed element is a full folded dipole, welded to the boom for bandwidth and durability.
  • The passive elements are through-mounted and welded on both sides to reduce corrosion and intermodulation.
  • The all-welded construction ensures long-term performance in outdoor environments.
  • The alodine finish enhances grounding capability.
  • It supports stacking or baying with PH and PHE series phasing harnesses.
  • The antenna includes DC grounding on all elements for lightning protection and static dissipation.
  • It is suitable for broadband RF control and communication systems.

Application Areas:

  • The antenna is ideal for broadband point-to-point or point-to-multipoint RF communication.
  • This antenna is suitable for custom frequency applications requiring high gain and directionality.
  • It is designed for use in environments where performance and reliability are essential.

In the Box:

  • 1x RFI YB16-99 16 Element Yagi Antenna (custom tuned)

Accessories (sold separately):

Documents:

RFI YB16 Series Yagi Antennas - Datasheet

Product Specifications

MPN YB16-99
Antenna application Base Station Antenna
Antenna cable type 9008
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with alodined finish
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 400-600
Front back ratio db 18 (Typical)
Height 3
Horizontal beamwidth 36?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 600
Max gain dbd dbi 14
Mimo support No
Min frequency mhz 400
Min gain dbd dbi 14
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm x 25mm diam.
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with 9008 cable tail
Torque nm 165
Tuned bandwidth 0.05
Vertical beamwidth 34?
Vswr <1.5:1
Width 3
Wind gust km h 147
Wind thrust 141
