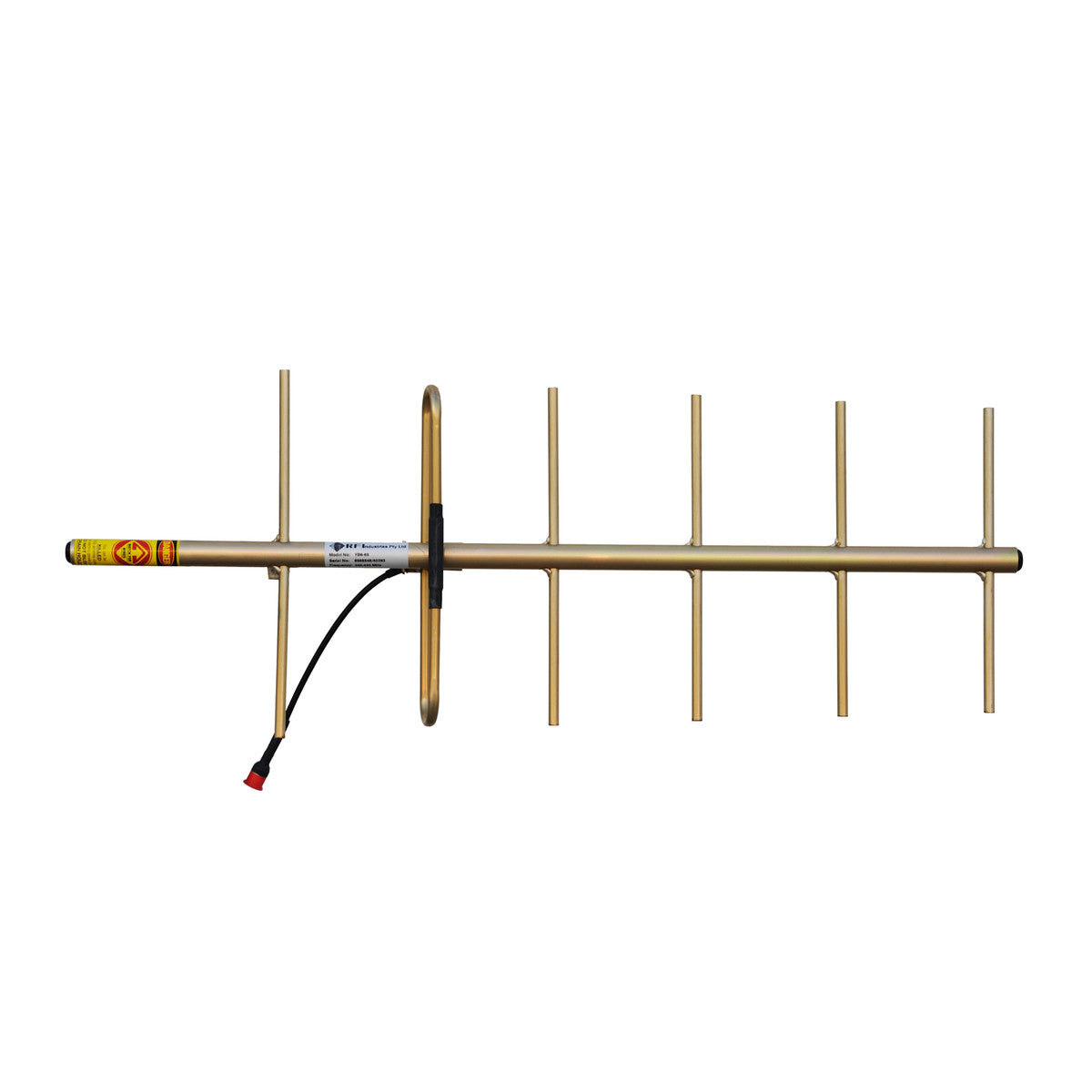

RFI YB6-62 6 Element Yagi Antenna, 480-520 MHz, 11 dBi

RFI YB6-62 6 Element Yagi Antenna, 480-520 MHz, 11 dBi

Available

Brand:
Item ID:
168016201
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YB6-62
Send Request for Quote (RFQ) Discount Offers
The RFI YB6-62 is a 6-element Yagi antenna offering 11 dBi gain for directional communication in the 480–520 MHz frequency range.
Regular price $171.00
Regular price $0.00 Sale price $171.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YB6-62 is a 6-element Yagi antenna offering 11 dBi gain for directional communication in the 480–520 MHz frequency range. It is built for high-performance RF applications requiring narrow beamwidth and minimal interference.

Features:

  • The RFI YB6-62 antenna provides 11 dBi gain for strong directional signal transmission.
  • This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
  • The feed element is a full folded dipole, welded to the boom for durability and bandwidth.
  • The passive elements are through-mounted and welded on both sides to minimize corrosion and intermodulation.
  • The all-welded construction ensures long-term reliability in outdoor environments.
  • The alodine finish enhances grounding capability.
  • It supports stacking or baying with PH and PHE series phasing harnesses for higher gain setups.
  • The antenna includes DC grounding on all elements for lightning protection and static dissipation.
  • It is suitable for RF control and directional communication systems.

Application Areas:

  • The antenna is ideal for point-to-point RF communication in industrial and control systems.
  • This antenna is suitable for long-range directional links.
  • It is designed for use in environments requiring high gain and low interference.

In the Box:

  • 1x RFI YB6-62 6 Element Yagi Antenna

Documents:

RFI YB6-62 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide

Product Specifications

MPN YB6-62
Antenna application Base Station Antenna
Antenna cable type 9008
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with alodined finish
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 480-520
Front back ratio db 18 (Typical)
Height 10
Horizontal beamwidth 56?
Installation type External mounting
Length 86
Low pim No
Max frequency mhz 520
Max gain dbd dbi 11
Mimo support No
Min frequency mhz 480
Min gain dbd dbi 11
Mount supported Clamp mount
Mount supported detailed UNV
Mounting area 100mm x 25mm diam. alodined aluminium
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9008 cable tail
Torque nm 16
Tuned bandwidth Full band
Vertical beamwidth 47?
Vswr <1.5:1
Width 36
Wind gust km h >240
Wind thrust 47
