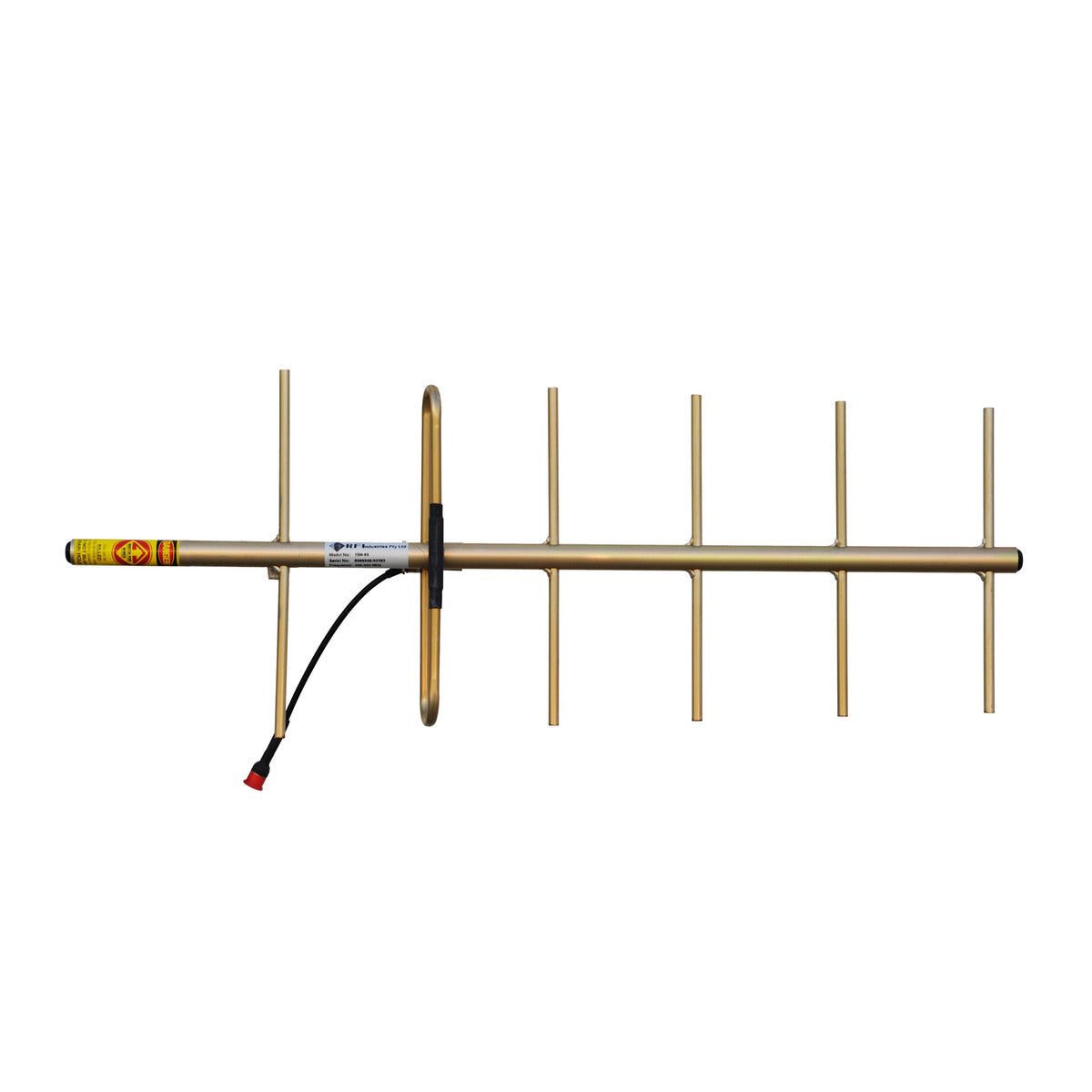

The RFI YB6-99-PIM is a custom-tuned 6-element Yagi antenna designed for broadband directional communication across the 330-600 MHz frequency range. With a gain of 11 dBi and a rugged welded design, it is ideal for RF systems requiring high performance and flexibility.

Features:

• The RFI YB6-99-PIM antenna is custom tuned for operation across the 330-600 MHz frequency range.
• This antenna provides 11 dBi gain for strong directional signal coverage.
• The feed element is a full folded dipole, welded to the boom for bandwidth and durability.
• The passive elements are through-mounted and welded on both sides to reduce corrosion and intermodulation.
• The all-welded construction ensures long-term performance in outdoor environments.
• The alodine finish enhances grounding capability.
• It supports stacking or baying with PH and PHE series phasing harnesses.
• The antenna includes DC grounding on all elements for lightning protection and static dissipation.
• It is suitable for broadband RF control and communication systems.

Application Areas:

• The antenna is ideal for broadband point-to-point or point-to-multipoint RF communication.
• This antenna is suitable for custom frequency applications requiring high gain and directionality.
• It is designed for use in environments where performance and reliability are essential.

In the Box:

• 1x RFI YB6-99-PIM 6 Element Yagi Antenna (custom tuned)

Documents:

RFI YB6-99 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
