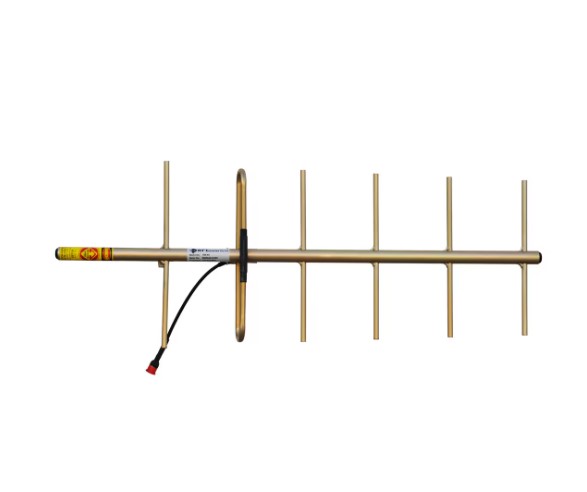

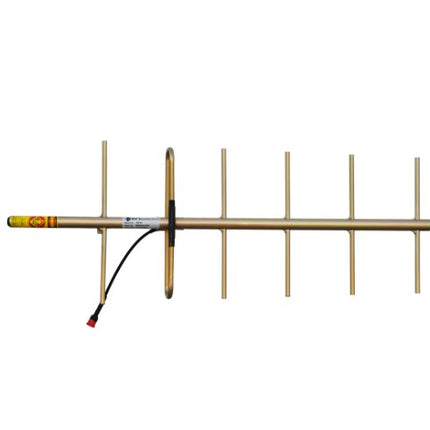

The RFI YB6-99 is a custom-tuned 6-element high-gain Yagi antenna designed for broadband directional communication across the 330–600 MHz frequency range. Engineered for RF control, telemetry, and long or short-haul links, this antenna offers excellent performance in applications requiring high directionality and minimal interference. Its rugged construction and precision design make it ideal for industrial, commercial, and remote deployments.

Product Features:

• The RFI YB6-99  antenna is designed for broadband operation across the 330–600 MHz frequency range.
• This 6-element Yagi configuration delivers high gain and focused signal transmission.
• The feed element is of full folded dipole construction, welded to the boom for maximum bandwidth and reliability.
• The passive elements are through-mounted and welded on both sides to reduce corrosion and intermodulation.
• The alodined protective finish provides a conductive surface for effective grounding and corrosion resistance.
• The antenna exhibits a narrow beamwidth and high front-to-back ratio to minimize interference.
• It is designed to rest at ground potential, offering excellent lightning protection and static noise dissipation.
• The included Durathene cable tail offers superior resistance to weathering and abrasion.
• Termination is via an N female coaxial connector for easy and secure installation.
• The antenna can be configured in stacks or bays using PH and PHE series phasing harnesses for higher gain applications.

Application Areas:

• The antenna is ideal for RF control systems and telemetry applications.
• It is suitable for short and long-haul directional communication links.
• It supports emergency, public safety, and industrial communication networks.
• It is a reliable solution for rural and remote area connectivity and broadband networking.

In the Box:

• 1x RFI YB6-99 Yagi Antenna (custom tuned)
