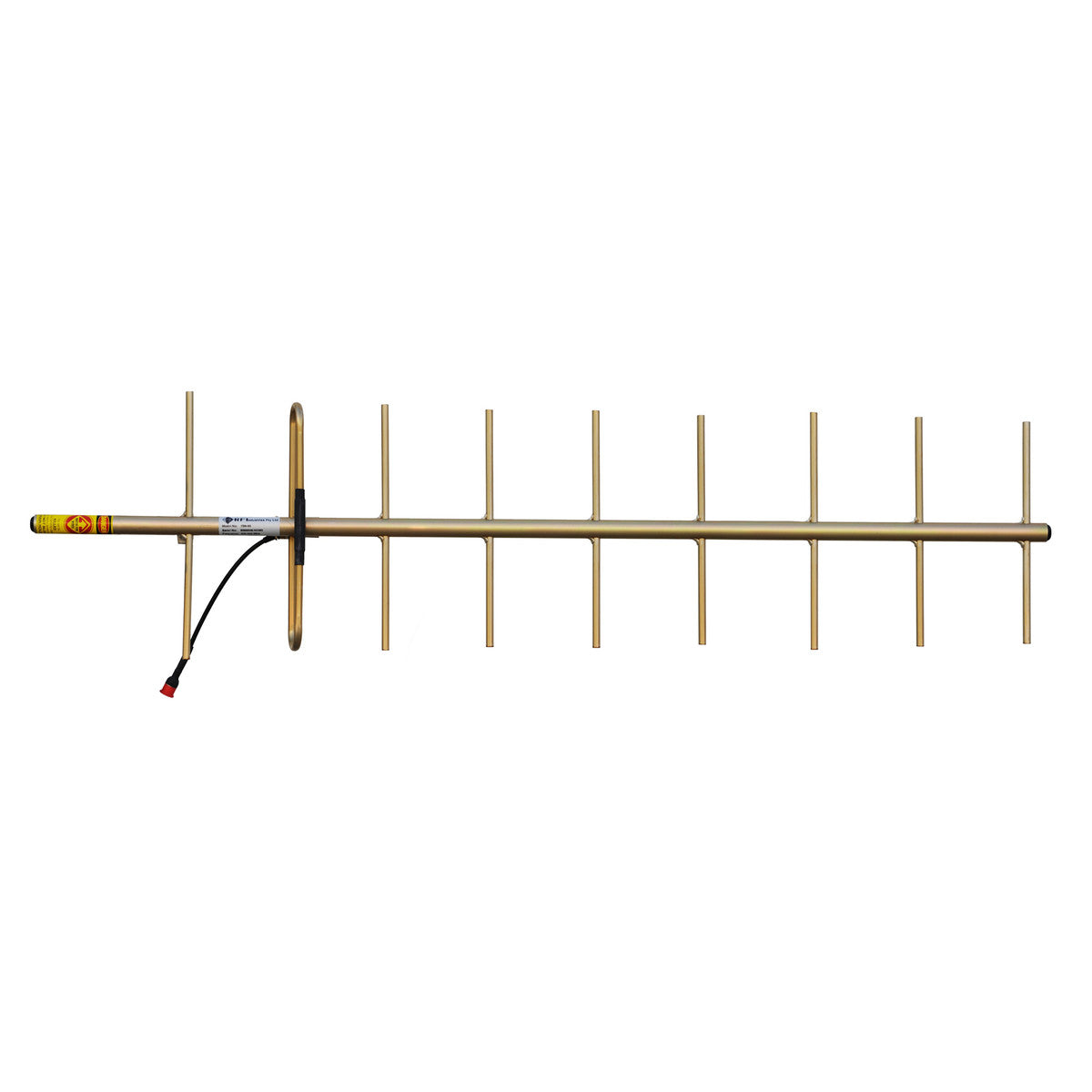

The RFI YB9-99-PIM is a custom-tuned 9-element high-gain Yagi antenna designed for broadband directional communication across the 400–600 MHz frequency range. Engineered with a fully welded Passive Intermodulation (PIM) rated construction, it is ideal for RF control, point-to-point links, and other applications requiring high directionality and low interference in demanding environments.

Features:

• The RFI YB9-99-PIM antenna delivers 13 dBi gain, making it suitable for high-performance broadband directional communication.
• This antenna features narrow beamwidths and high front-to-back ratios to minimize interference from and to other systems.
• The feed element is a full folded dipole, welded to the boom for maximum bandwidth, low PIM performance, and long-term reliability.
• All passive elements are through-mounted and fully welded on both sides of the circular boom to reduce corrosion and intermodulation generation.
• The all-welded PIM-rated construction ensures consistent and reliable performance in critical RF environments.
• The alodine finish provides a conductive surface for effective grounding.
• The antenna supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
• It includes DC grounding on all elements for lightning protection and static noise dissipation.
• It is designed for RF control, telemetry, and long or short-haul communication links in environments sensitive to intermodulation.

Application Areas:

• The antenna is ideal for broadband point-to-point RF communication in PIM-sensitive environments.
• This antenna is suitable for custom frequency applications requiring high gain and low interference.
• It is designed for use in industrial, remote, or outdoor installations where performance and reliability are essential.

In the Box:

• 1x RFI YB9-99-PIM 9 Element Yagi Antenna (custom tuned)

Documents:

RFI YB9-99-PIM Antenna - Datasheet RFI YB9-99-PIM Antenna - Technical Support
