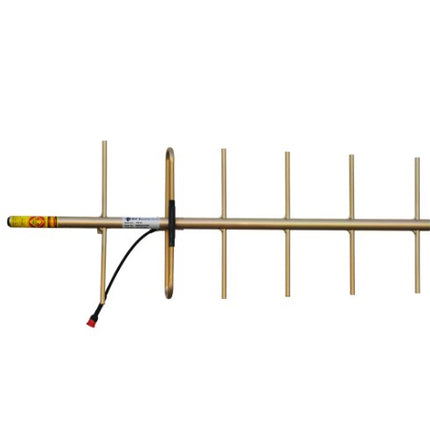

The RFI YB9-99 is a custom-tuned, 9-element high-gain Yagi antenna designed for broadband directional communication across the 400-600 MHz frequency range. It is engineered for RF control, telemetry, and both short and long-haul links, offering reliable performance in applications that demand high directionality, minimal interference, and consistent signal strength.

Product Features:

• The RFI YB9-99 antenna is custom tuned to operate efficiently across the 400-600 MHz frequency range, making it suitable for a wide range of broadband RF applications.
• This 9-element Yagi design provides high gain, enhancing signal reception and transmission over long distances.
• The feed element is constructed as a full folded dipole and welded to the boom, ensuring maximum bandwidth and long-term reliability.
• The all-welded construction of both feed and passive elements ensures structural durability and minimizes passive intermodulation.
• The passive elements are through-mounted and welded on both sides of the circular boom to reduce corrosion and intermodulation generation.
• The antenna features a narrow beamwidth and high front-to-back ratio, which helps reduce interference from surrounding systems.
• The alodined protective finish offers excellent corrosion resistance and provides a conductive surface for effective grounding.
• It is designed to operate at ground potential, offering natural lightning protection and reduced precipitation static noise.
• The antenna includes a short Durathene polyethylene jacketed cable tail with an N female connector, providing superior resistance to weathering and abrasion.
• It can be configured in stacked or bayed arrangements using PH and PHE series phasing harnesses for higher gain applications.

Application Areas:

• The antenna is ideal for point-to-point communication systems in broadband RF networks where high directionality is required.
• This antenna is suitable for RF control and monitoring applications in industrial and commercial environments.
• It is effective in both short and long-haul communication links where signal strength and interference reduction are critical.
• The antenna is well-suited for installations in environments that demand reliable performance and minimal signal disruption.

In the Box:

• 1x RFI YB9-99 Yagi Antenna (custom tuned)
