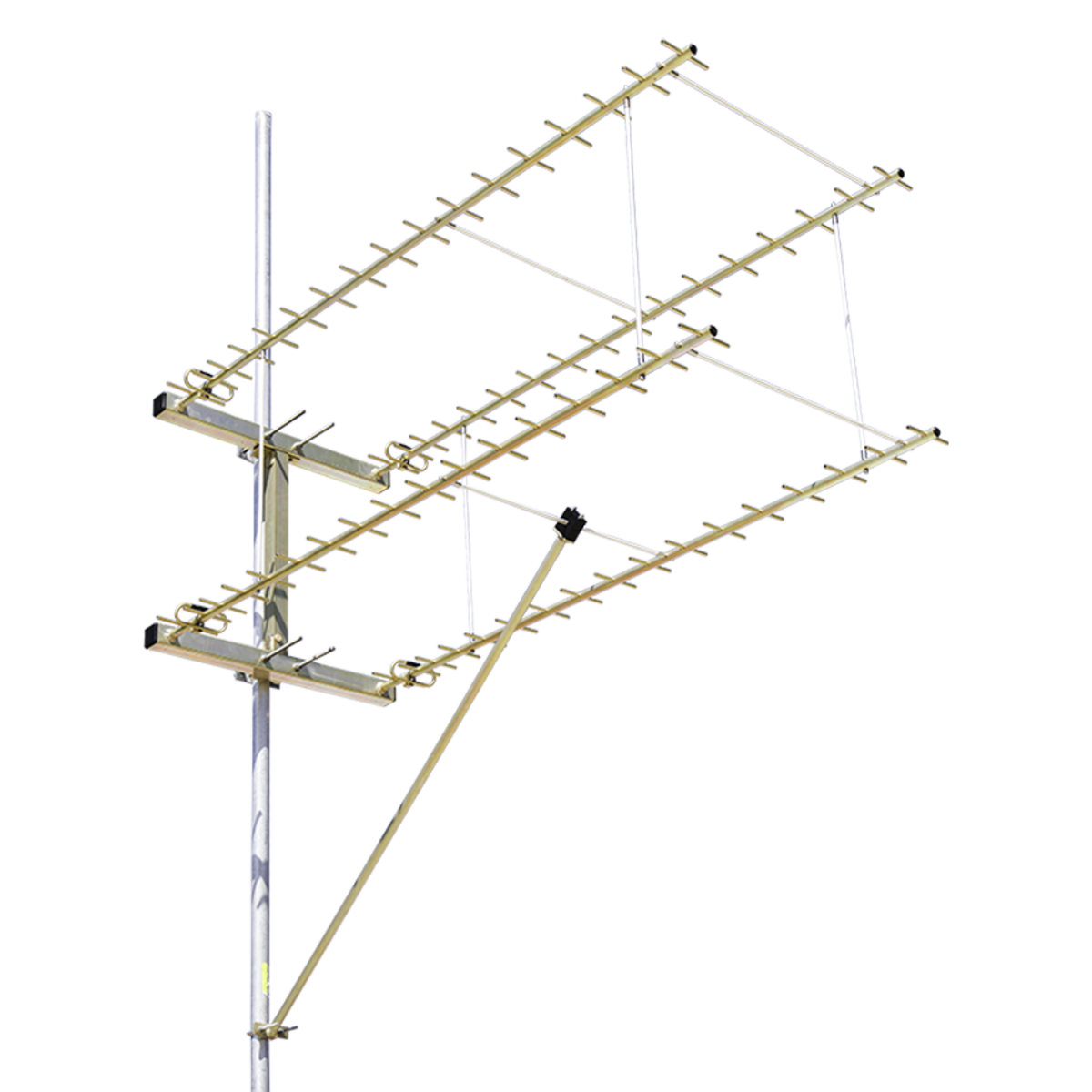

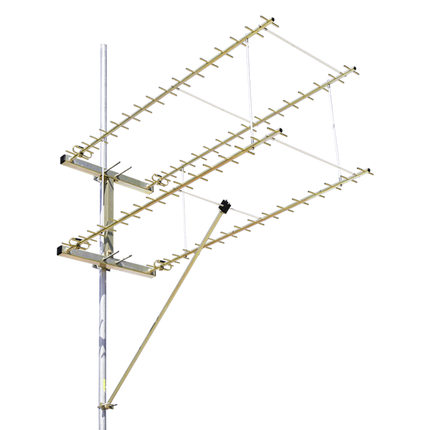

The RFI YBA-4H-818-8085 is a 4-bay, 18-element Yagi array engineered for ultra-high gain directional communication across the 803–854 MHz frequency range. Designed for RF control and long-distance point-to-multipoint applications, this antenna offers robust construction, internal harnessing, and exceptional performance in challenging environments.
Product Features:
- The antenna is configured as a 4-bay Yagi array, delivering 22 dBi gain for maximum directional signal strength.
- It operates across the 803–854 MHz frequency range, supporting a wide range of RF communication applications.
- Each feed element is a fully folded dipole welded to the boom, providing excellent bandwidth and intermodulation performance.
- Passive elements are through-mounted and welded on both sides to the boom, reducing the risk of corrosion and PIM.
- The all-welded construction ensures structural integrity and long-term reliability.
- The alodined finish enhances conductivity for effective grounding and corrosion protection.
- DC grounding on all elements provides lightning protection and static noise dissipation.
- Internal phasing harnesses are protected from wildlife and environmental damage.
- All required harnesses, braces, and clamps are included for complete installation.
Application Areas:
- The antenna is ideal for high-performance RF control systems requiring long-range, high-gain communication.
- It is suitable for point-to-multipoint links in remote or industrial environments.
- It is a dependable solution for installations where interference reduction and signal clarity are critical.
- The design supports horizontal polarization for enhanced directional performance.
In the Box:
- 1x RFI YBA-4H-818-8085 18 Element 4 Bay Yagi Array
Documents:
RFI YBA-4H-818-8085 Yagi Antenna - Datasheet
