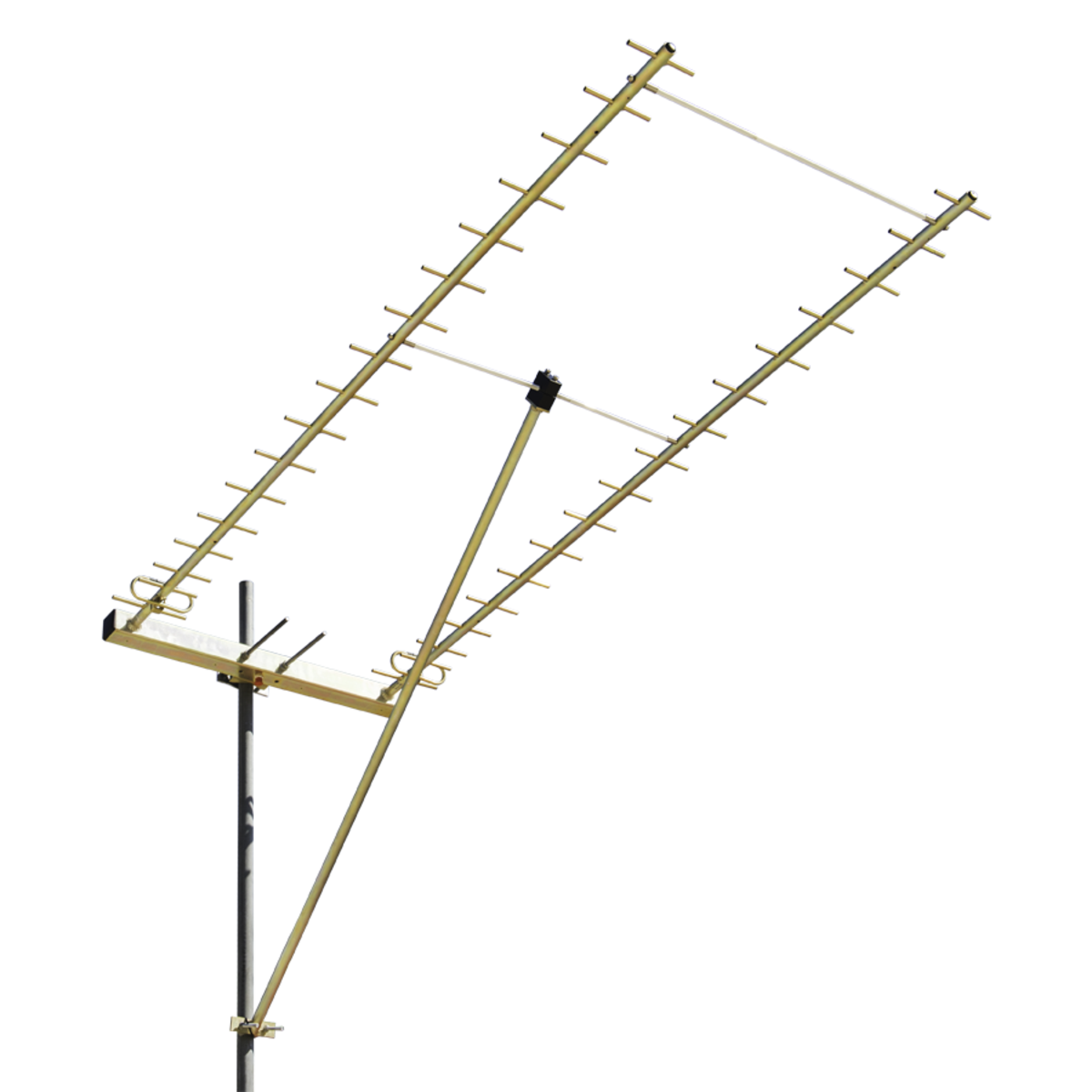

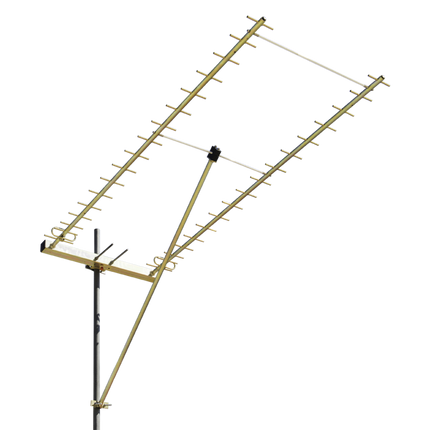

The RFI YBA-2H-818-8085 is a dual-bay, 18-element Yagi array designed for high-gain, directional communication across the 803-854 MHz frequency range. Built for RF control and long-haul point-to-multipoint applications, this antenna features rugged construction, internal harnessing, and excellent intermodulation performance.

Product Features:

• The antenna is configured as a 2-bay Yagi array, delivering 19 dBi gain for high-performance directional communication.
• It operates across the 803-854 MHz frequency range, making it ideal for RF control and telemetry systems.
• All feed elements are constructed from fully folded dipoles welded to the boom, ensuring maximum bandwidth and reliability.
• Passive elements are through-mounted and welded on both sides to a circular boom, minimizing corrosion and intermodulation.
• The all-welded construction ensures long-term durability and consistent performance in demanding environments.
• The alodined finish provides a conductive surface for effective grounding and corrosion resistance.
• DC grounding on all elements offers superior lightning protection and static noise dissipation.
• All phasing harnesses are internally routed to resist wildlife damage and environmental wear.
• The antenna includes all necessary harnesses, braces, and clamps for complete installation.

Application Areas:

• The antenna is ideal for point-to-point RF control systems requiring high gain and directionality.
• It is suitable for long-haul point-to-multipoint communication links.
• It is a reliable solution for installations in harsh or remote environments.
• The design supports horizontal polarization for optimized signal performance.

In the Box:

• 1x RFI YBA-2H-818-8085 18 Element Dual Yagi Array

Documents:

RFI YBA-2H-818-8085 Yagi Antenna - Datasheet
