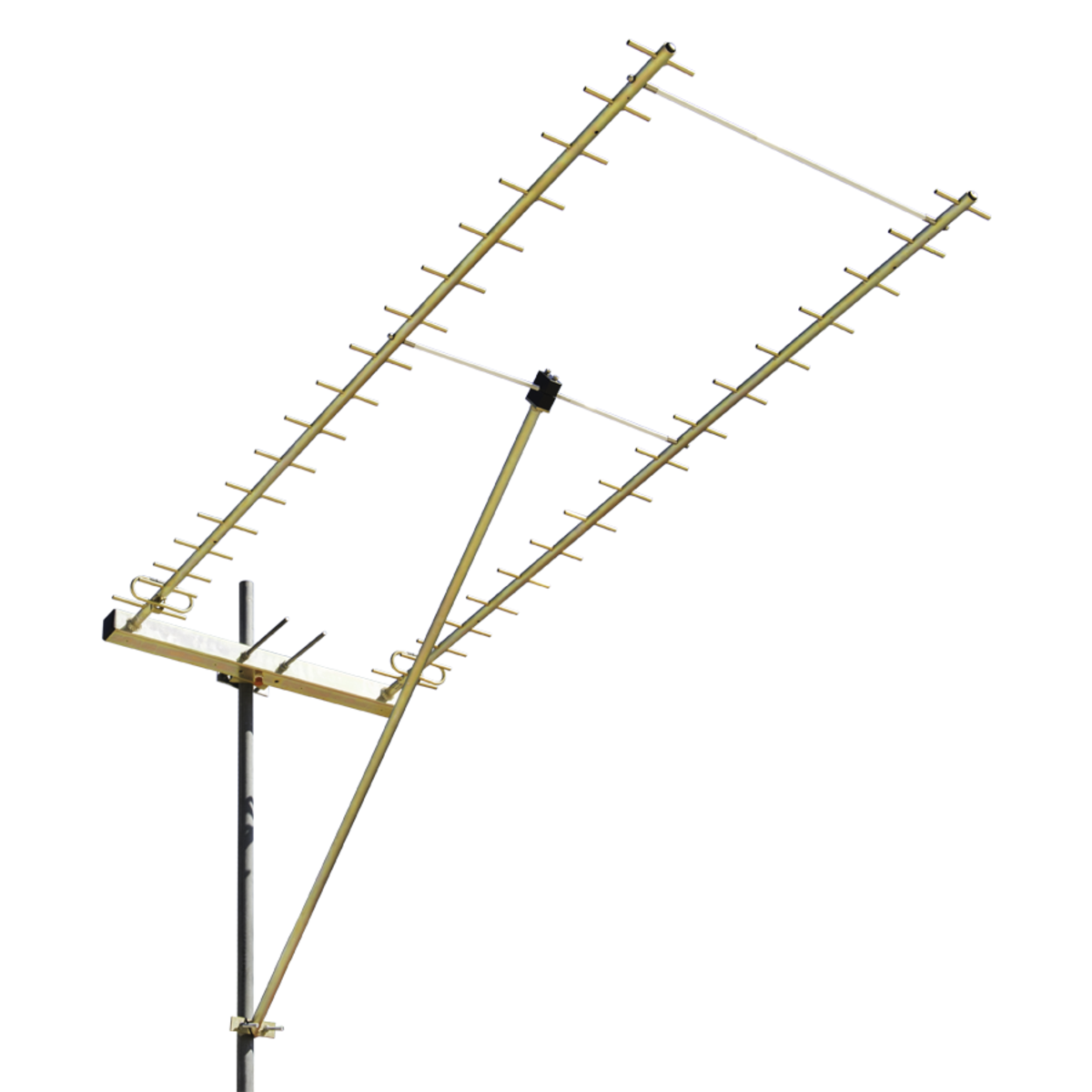

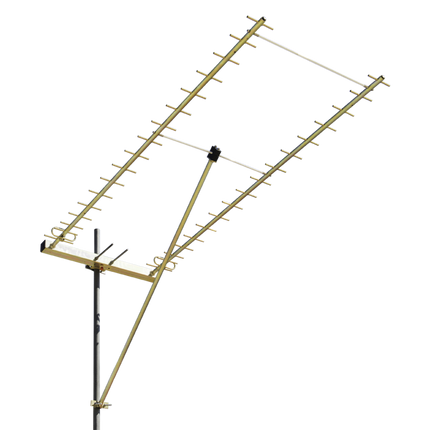

RFI YBA 18 Element Dual Yagi Array, 803-854 MHz, 19 dBi - Vertical

RFI YBA 18 Element Dual Yagi Array, 803-854 MHz, 19 dBi - Vertical

On backorder

Brand:
Item ID:
167016249
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBA-2V-818-8085
Send Request for Quote (RFQ) Discount Offers
RFI YBA-2V-818-8085 is a dual-bay, 19 dBi, 18-element Yagi array designed for high-gain, vertically polarized directional communication across 803–854 MHz.
Regular price $1,927.00
Regular price $0.00 Sale price $1,927.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBA-2V-818-8085 is a dual-bay, 18-element Yagi array designed for high-gain, vertically polarized directional communication across the 803–854 MHz frequency range. Engineered for RF control and long-haul point-to-multipoint applications, this antenna features rugged construction, internal harnessing, and excellent intermodulation performance.

Product Features:

  • The antenna is configured as a 2-bay Yagi array, delivering 19 dBi gain for high-performance vertical polarization communication.
  • It operates across the 803–854 MHz frequency range, making it ideal for RF control and telemetry systems.
  • All feed elements are fully folded dipoles welded to the boom, ensuring maximum bandwidth and high reliability.
  • Passive elements are through-mounted and welded on both sides to the circular boom, minimizing corrosion and intermodulation.
  • The all-welded construction ensures long-term durability and consistent performance in demanding environments.
  • The alodined finish provides a conductive surface for effective grounding and corrosion resistance.
  • DC grounding on all elements offers superior lightning protection and static noise dissipation.
  • All phasing harnesses are internally routed to resist wildlife damage and environmental wear.
  • The antenna includes all necessary harnesses, braces, and clamps for complete installation.

Application Areas:

  • The antenna is ideal for vertically polarized point-to-point RF control systems.
  • It is suitable for long-haul point-to-multipoint communication links.
  • It is a reliable solution for installations in harsh or remote environments.
  • The design supports vertical polarization for optimized signal performance in specific network configurations.

In the Box:

  • 1x RFI YBA-2V-818-8085 18 Element Dual Yagi Array

Documents:

RFI YBA-2V-818-8085 Yagi Antenna - Datasheet

Product Specifications

MPN YBA-2V-818-8085
Antenna application Base Station Antenna
Antenna cable type 8142
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction Welded aluminium with alodined finish and fibreglass supports
Coverage type Directional
Frequency band 900 MHz, 700 MHz, 800 MHz
Frequency mhz 850-930
Front back ratio db 24
Height 3
Horizontal beamwidth 28
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 854
Max gain dbd dbi 19
Mimo support No
Min frequency mhz 803
Min gain dbd dbi 19
Mount supported Pole mount
Mount supported detailed Pole mount
Mounting area Clamps to diam. 40-85mm
No of antenna ports 1
Power w 200
Technologies supported UHF
Termination External harness with N female and short RG142 cable tail
Tuned bandwidth Full band
Vertical beamwidth 13
Vswr <1.5:1
Width 3
Wind gust km h 177
Wind thrust 334
