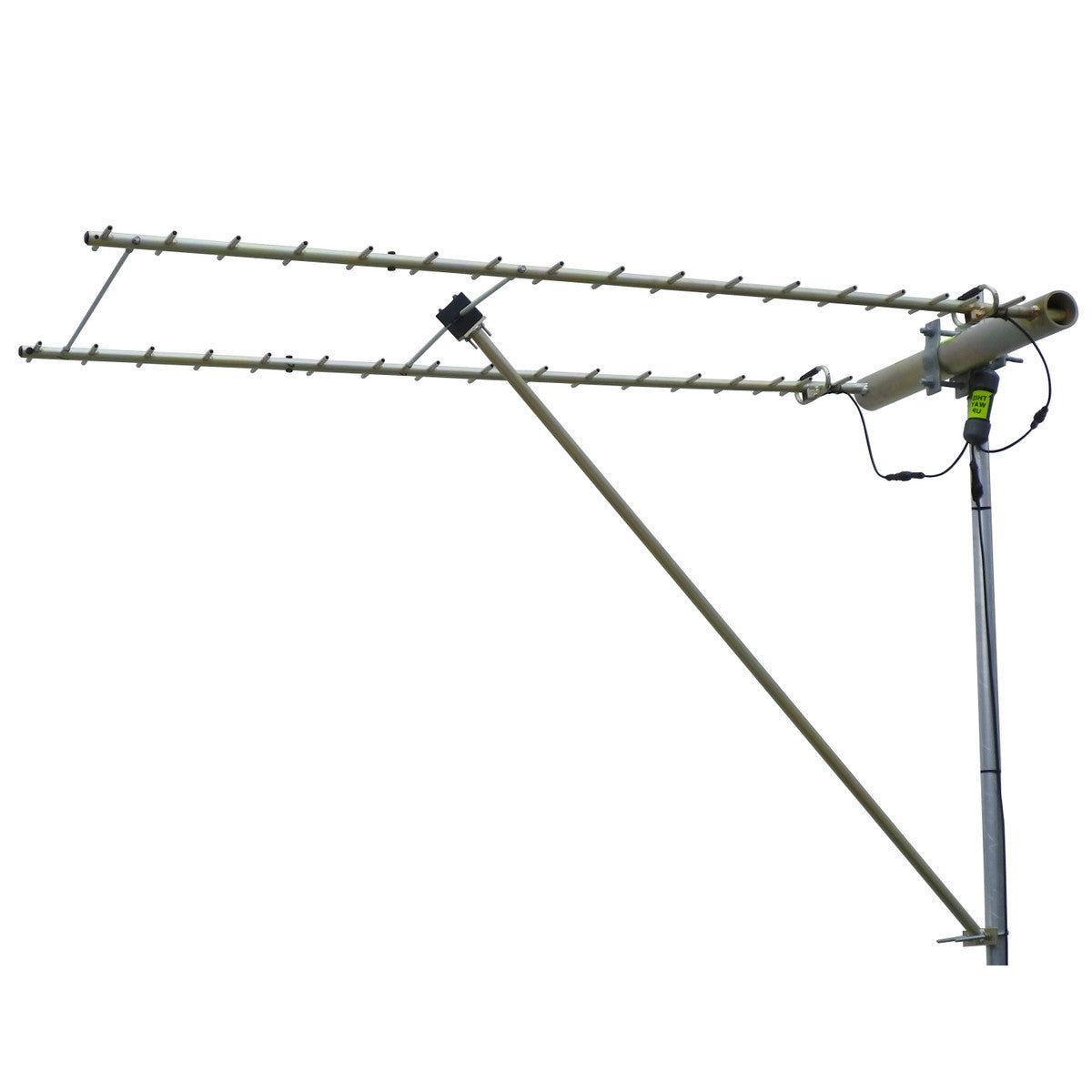

The RFI YBA-H-818-82 is a dual-bay, 18-element Yagi array designed for 19 dBi high-gain, horizontally polarized directional communication across the 850-930 MHz frequency range. Engineered for RF control and long-haul point-to-multipoint applications, this antenna offers rugged construction, excellent intermodulation performance, and reliable operation in demanding environments.

Product Features:

• The antenna is configured as a dual-bay Yagi array, delivering 19 dBi gain for high-performance directional communication.
• It operates across the 850-930 MHz frequency range, making it ideal for RF control and telemetry systems.
• Both feed elements are fully folded dipoles welded to the boom, ensuring maximum bandwidth, low intermodulation, and high reliability.
• Passive elements are through-mounted and welded on both sides to a circular boom, minimizing corrosion and intermodulation effects.
• The all-welded construction ensures long-term durability and consistent performance in harsh conditions.
• The alodined finish provides a conductive surface for effective grounding and corrosion resistance.
• DC grounding on all elements offers superior lightning protection and static noise dissipation.

Application Areas:

• The antenna is ideal for horizontally polarized point-to-point RF control systems.
• It is suitable for long-haul point-to-multipoint communication links.
• It is a dependable solution for installations requiring high gain and minimal interference.
• The design supports use in industrial, remote, or environmentally challenging locations.

In the Box:

• 1x RFI YBA-H-818-82 18 Element Dual Yagi Array

Documents:

RFI YBA-H-818-82 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
