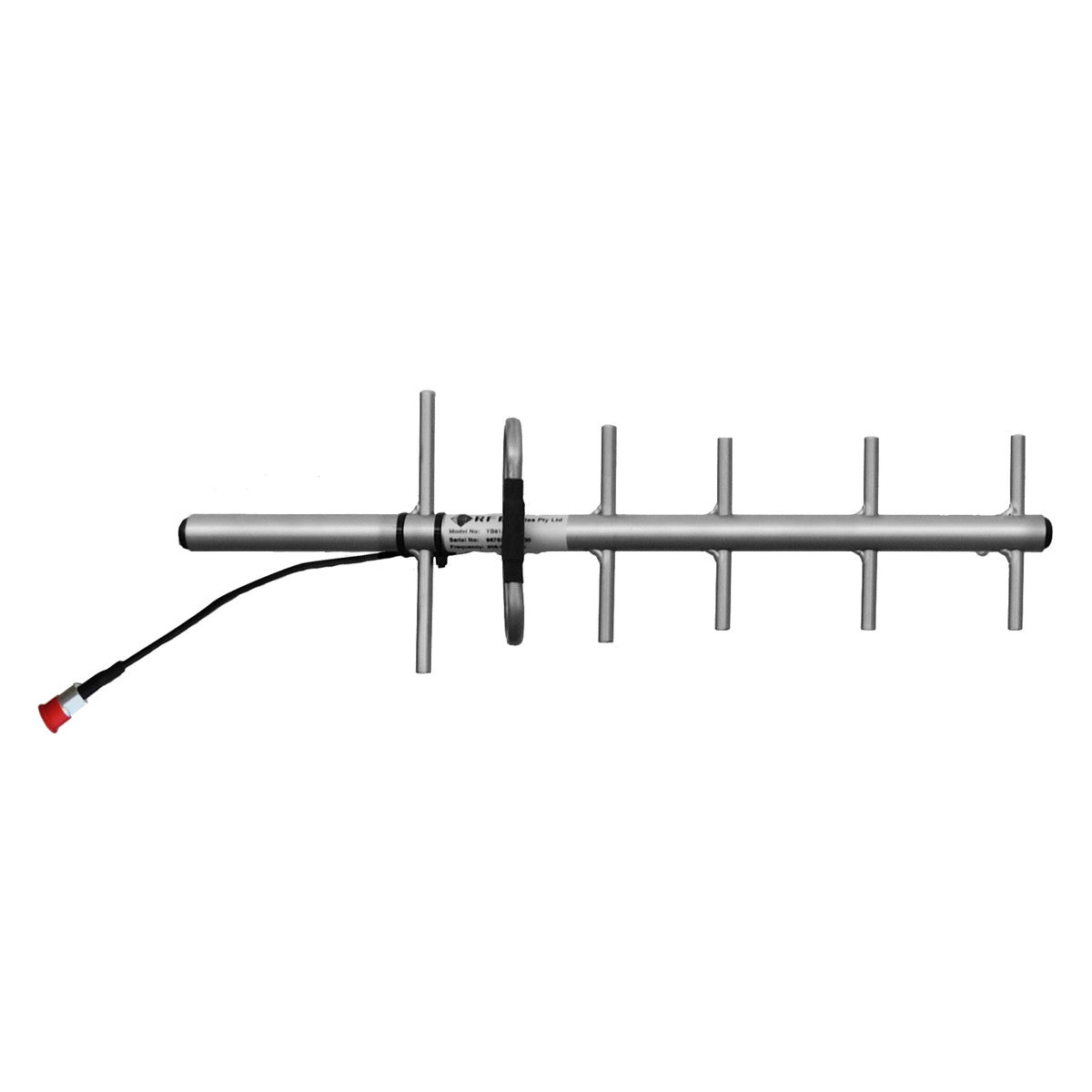

The RFI YBS806-81 is a 6-element stainless steel Yagi antenna designed for high-gain directional communication across the 806–896 MHz frequency range. Built from all-welded 316-grade stainless steel, this antenna is engineered for extreme and corrosive environments, offering reliable performance and low Passive Intermodulation (PIM) characteristics.
Product Features:
- The RFI YBS806-81 antenna is constructed from rugged 316-grade stainless steel, making it ideal for use in harsh and corrosive environments.
- It operates across the 806–896 MHz frequency range, supporting a wide range of RF communication applications.
- It delivers 11 dBi gain with a narrow beamwidth and high front-to-back ratio for focused signal transmission and reduced interference.
- The all-welded construction ensures long-term durability and consistent performance in demanding conditions.
- The antenna includes a short 9302 Durathene cable tail with an N female connector, offering superior resistance to weathering, abrasion, and bird damage.
- It supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
- The design is optimized for both point-to-point and point-to-multipoint communication setups.
- It features DC grounding on all elements for effective lightning protection and static noise dissipation.
Application Areas:
- The antenna is ideal for RF control and telemetry systems in corrosive or extreme environments.
- It is suitable for directional communication in both short and long-haul point-to-point links.
- It is a reliable choice for point-to-multipoint applications requiring high gain and low interference.
- The design supports both horizontal and vertical polarization configurations.
In the Box:
- 1x RFI YBS806-81 6 Element Stainless Steel Yagi Antenna
Documents:
RFI YBS806-81 Yagi Antenna - Datasheet
Phasing of RFI Yagi Antenna - Technical Guide
